Overview

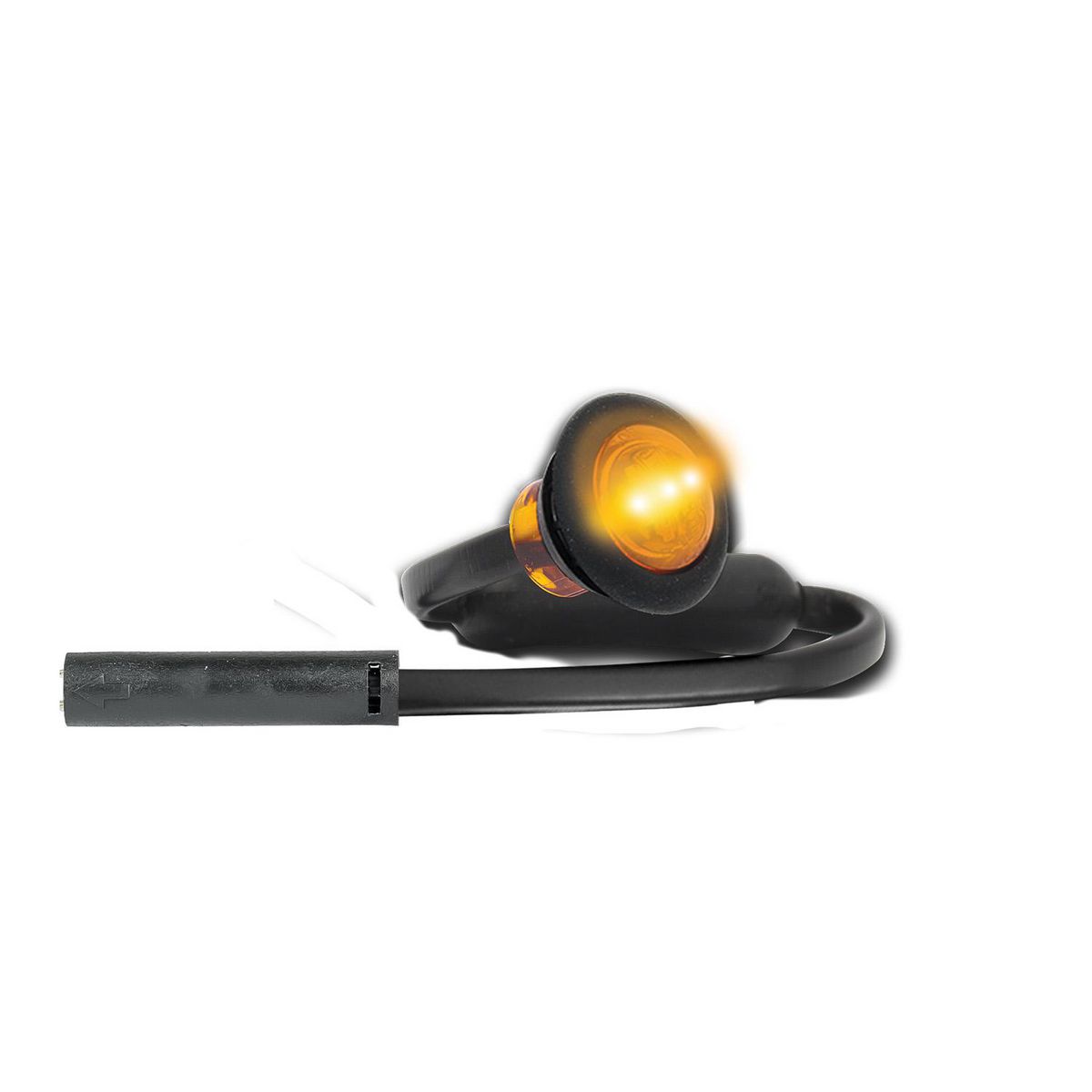

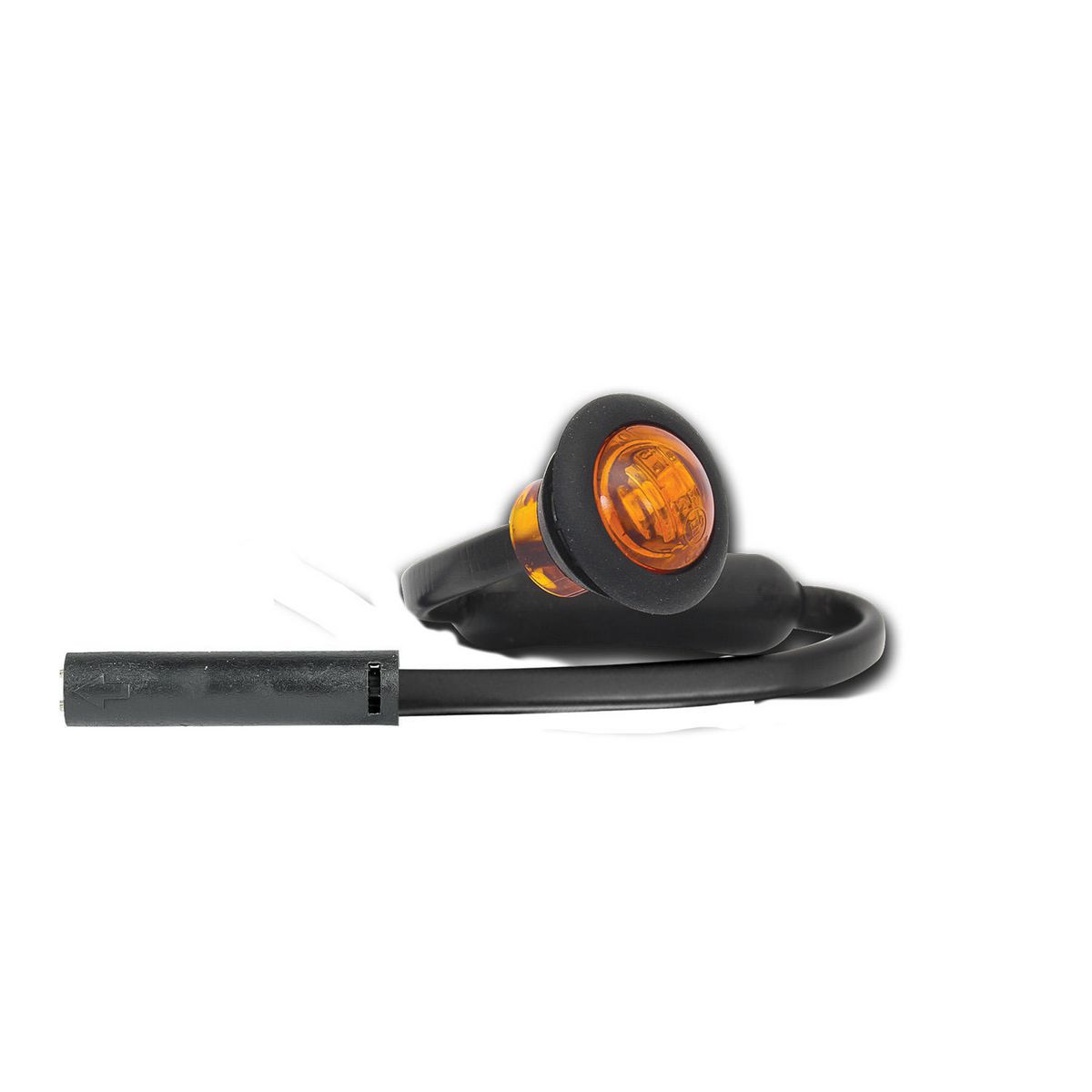

Amber side marker lamp marks the trailer side profile so other road users can read the vehicle length and position. This compact 181 Series lamp suits recessed marker fitment where a low-profile amber side light and female 2 pin plug connection are required.

Features

• Amber side marker function for trailer side visibility.
• CSB plug version suits LED Autolamps cable-system harness setups.
• 3 LED lamp with 12-24V operating range.
• IP67 rated low-profile body for exposed trailer positions.

Specifications and Materials

Part number: 181AMCSB.

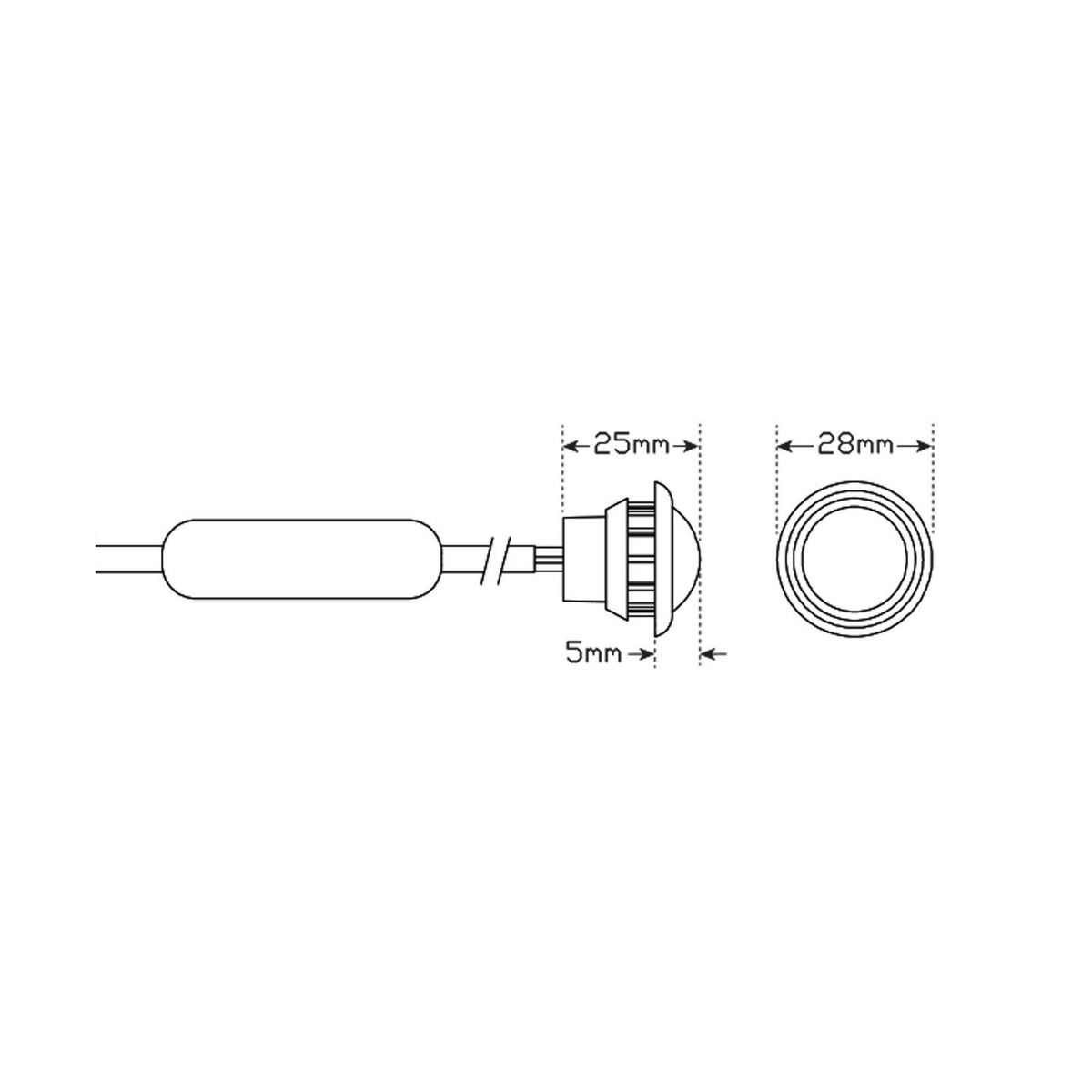

The lamp measures 28mm round x 5mm and runs a 20cm cable with CSB plug connection. It draws 0.03A at 13.8V and 0.03A at 28V, so it suits both 12V and 24V trailer electrical systems.

For series details, use the manufacturer technical guide before matching the plug type and marker function.

Compatibility and Fitment

Match this amber side marker lamp to a 20mm cut-out, flat mounting surface and compatible 2 pin harness plug before ordering. Also compare the existing marker colour and function, because the same 181 Series body covers rear outline, side marker and front outline versions.

Use this CSB plug version where the trailer already runs a compatible heavy duty cable system. For bare-wire repairs, check the matching bare-wire variant instead.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

The 181 Series carries ECE approval and CTA approval for its listed marker functions. When fitting the lamp, drill the 20mm cut-out cleanly, seat the rubber housing properly and check the plug cover so water and road grime stay out of the connection.

For dangerous goods or livestock transport work, confirm the complete cable-system setup against the trailer’s operating requirements before release.

Trailer Applications

Trailer workshops fit this style of mini recessed side marker on rigid body, heavy trailer and transport body lighting systems. Because it uses a plug connection, it also suits fleet repairs where the harness side remains serviceable and only the lamp needs replacement.
