Description

Overview

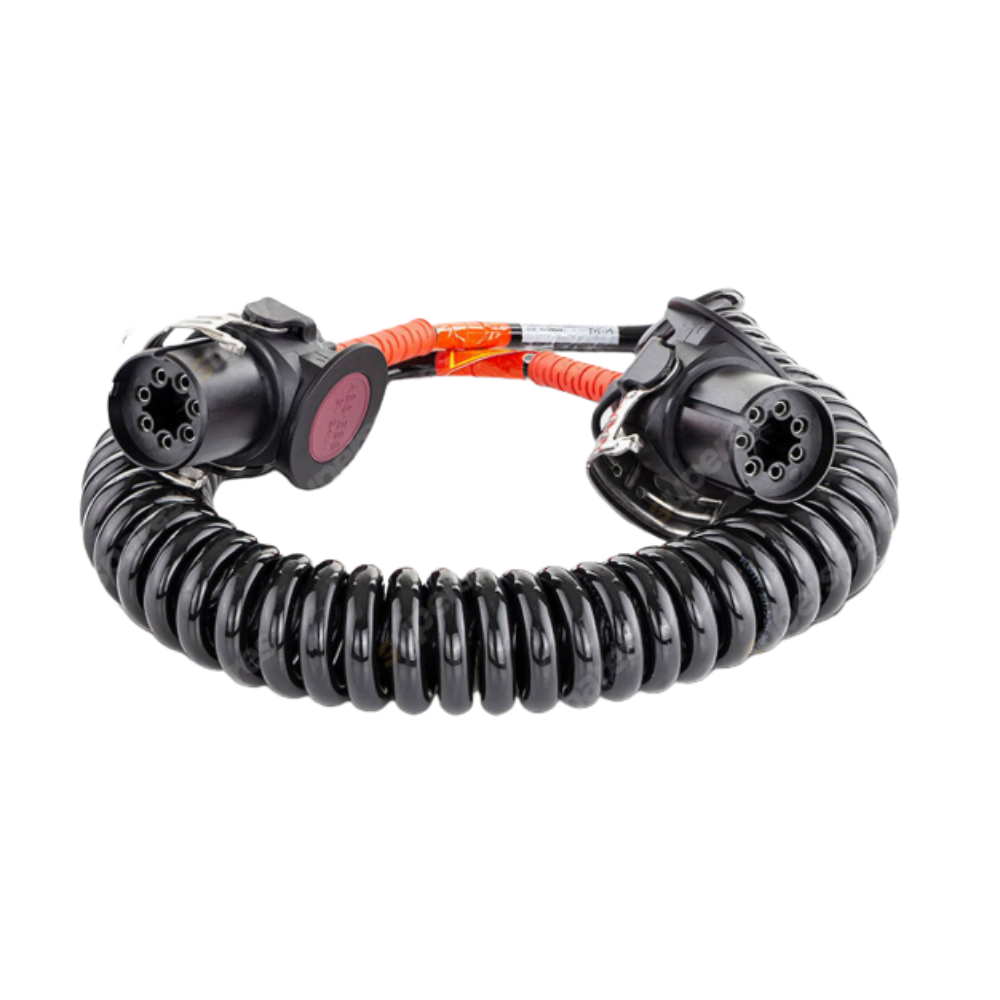

7 pin EBS suzi coil carries the ABS/EBS electrical connection between truck and trailer during heavy vehicle operation. It suits trailer lead replacement where the coiled cable, EBS plug ends and tail lengths need to match the existing setup.

Features

• 7 pin EBS suzi coil format for ABS/EBS trailer connection systems.
• 12/24V application coverage suits mixed heavy vehicle electrical setups.
• Coiled lead helps manage movement between prime mover and trailer.
• Heavy duty application range suits commercial trailer service use.

Specifications and Materials

Part number: 7PSUZIEBSM1B.

This suzi coil uses a 4.5m total extended lead length with staggered tails for EBS trailer connection work. It belongs to the LED Autolamps 7 pin suzi coil connector range, which includes ABS/EBS compliant options, long and short tail variants, and 12/24V configurations.

Use the manufacturer technical guide when matching the connector family and related suzi coil variants

Compatibility and Fitment

Match the 7 pin EBS suzi coil against the truck and trailer connector type, operating voltage, tail length and cable route before ordering. Also check the plug housings, retaining points and cable strain relief, because a damaged plug or stretched lead can cause repeat failures.

For EBS and ABS/EBS trailer systems, confirm the vehicle side and trailer side sockets match the required EBS plug style before replacing the lead.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the sockets and pins before fitting the new lead. Then test the trailer ABS/EBS warning behaviour and electrical continuity after installation, because a poor plug fit or damaged socket can make a new coil look faulty.

Trailer Applications

Heavy vehicle workshops use the these coils on trailer electrical connection systems where the lead moves between the prime mover and trailer. Fleets replace these coils when the cable sheath, plug body, pins or strain relief show service damage.
