Description

Overview

12/24V LED stop tail lamp restores rear stop and tail lighting on trailers, commercial vehicles and heavy-vehicle bodies. The square 125 Series format suits surface-mount rear lighting positions where a compact, sealed lamp and black bracket style are required.

Features

• 64 LED stop and tail lamp for rear vehicle lighting.
• Multi-volt 12-24V operation suits mixed trailer and fleet setups.
• Clip-in replaceable lens helps with service access.
• IP67 rating supports exposed trailer and body mounting positions.

Specifications and Materials

Part number: 125RM.

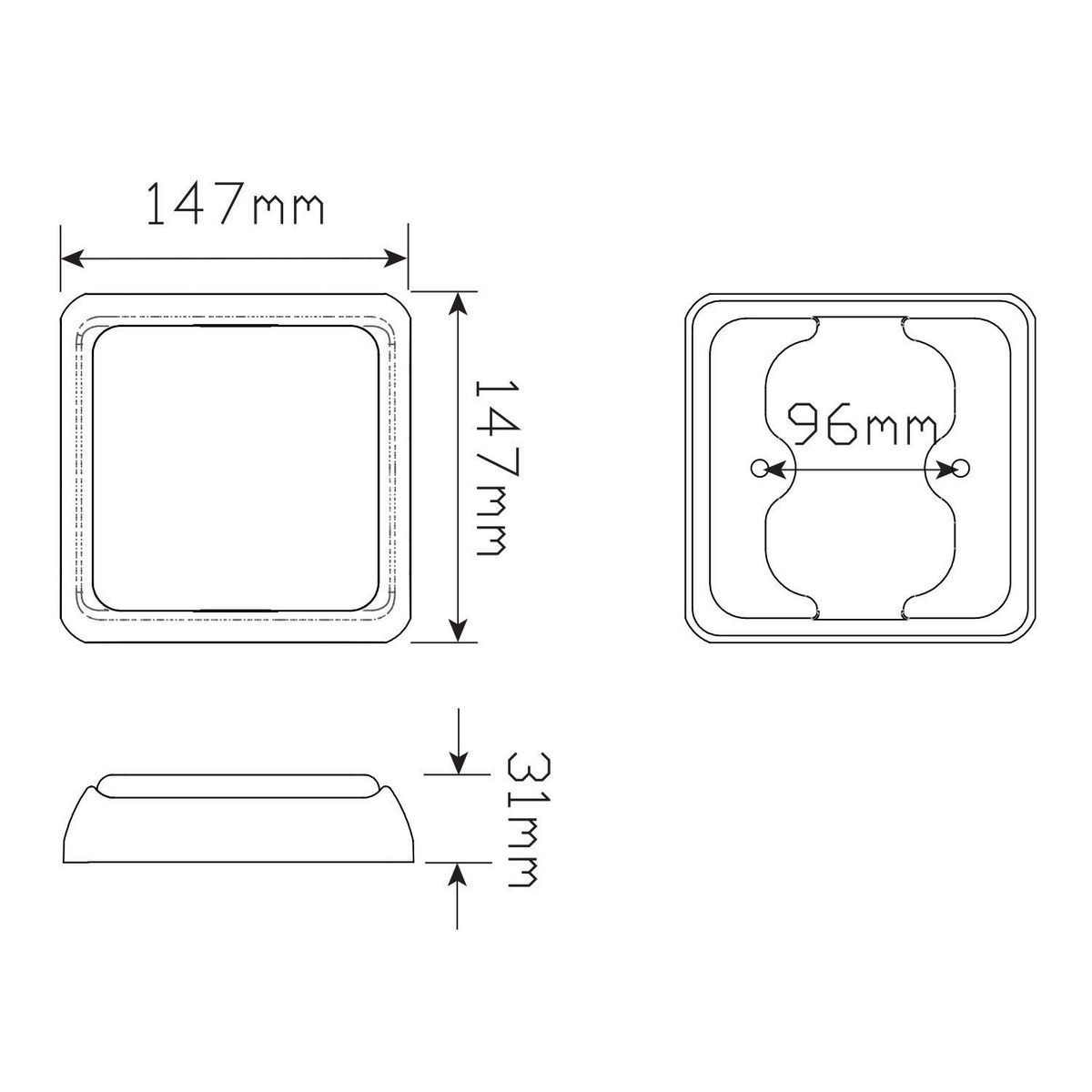

This lamp measures 147mm x 147mm x 31mm and runs a stop draw of 0.42A at 13.8V, with tail draw of 0.04A at 13.8V. At 28V, stop draw measures 0.26A and tail draw measures 0.06A.

The 12/24V LED stop tail lamp carries ADR 49/00 approval for stop/tail function and uses a 40cm cable.

official 125 Series technical information

Compatibility and Fitment

Match the lamp size, bracket style, voltage range, cable exit and stop/tail function before ordering. Also check the trailer body cut-out, rear mounting position and wiring route so the cable can run cleanly through the back of the bracket.

Related Parts

Check the related 125 Series lamps below against the trailer setup before ordering.

Compliance and Safety

Inspect the lens, bracket, cable and earth path before fitting. If the trailer has mixed older lighting or damaged wiring, fix the wiring fault before replacing the lamp so the new unit receives clean power.

Trailer Applications

Workshops fit this style of rear lamp to trailers, truck bodies, service bodies and commercial vehicle builds that need sealed square stop and tail lighting. Because it runs 12-24V, the 12/24V LED stop tail lamp suits fleets that work across different vehicle voltage systems.

Why Choose ICS Trailers

ICS Trailers supplies lighting parts for trailer repairs, fleet maintenance and body builds where voltage, mounting style and function need to match the job. Browse more trailer lighting parts in LED Lights
