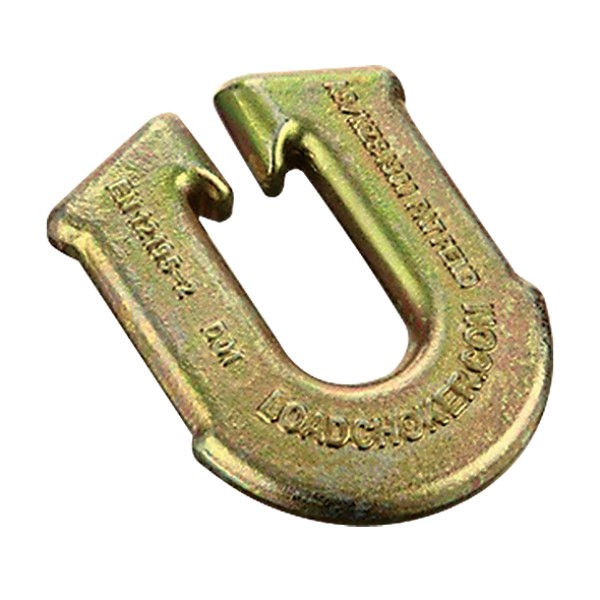

The Web Load Choker 50mm is a strap accessory that improves the classic belly wrap tie down method by creating a controlled choke around loose cargo. It generates a 2:1 tension effect around the load, so the strap grips more evenly and the bundle resists shifting in every direction. Because the choker holds the webbing in a consistent path, you get repeatable restraint without constantly reworking your wrap.

Features

• Creates a choke point to help stop loose loads sliding and rolling
• Speeds up loading and unloading, especially on multi drop runs
• Rolled edge design helps reduce webbing wear at the contact points
• Works with 50mm webbing tie down straps used in transport applications

Specifications and Materials

• Suits webbing width: 50mm
• Rated lashing capacity: 2500kg
• Material: steel alloy
• Function: 2:1 tension around the cargo when used as intended

Part number: CA4920.
Read the load restraint guide from the National Transport Commission for general restraint method guidance

Compatibility and Fitment

Use this Web Load Choker 50mm with standard 50mm webbing straps when you need a belly wrap style restraint around pipes, timber, or other loose bundles. Thread the strap through the choker and around the load so the choker sits where you want the choke point to form. Then tension the system in the normal way, but stop if the strap twists, because twists cut capacity and can damage webbing. If you are unsure about the best wrap for your load shape, follow your workplace load restraint procedure.

Compliance and Safety

Treat this as load restraint hardware, not lifting gear, so do not use it for overhead lifting. Always work within the lowest rated component in the restraint system, and check that your strap, winch, and anchor points suit the job. Before each use, inspect for deformation, sharp edges, or heavy wear. Replace the choker if you find damage, and also retire any webbing that shows cuts, melted fibres, or stitched damage.

Trailer Applications

This Web Load Choker 50mm suits common trailer restraint tasks on flat tops, drop decks, and general freight trailers where loads can move under braking or cornering. It is also useful for staged deliveries, because you can release and re secure faster without losing consistent strap placement. When the cargo is irregular, use edge protection and dunnage as needed so the restraint stays effective.

Why Choose ICS Trailers

ICS Trailers supplies practical restraint components that match real transport work, and we back that up with straight parts support. You can also bundle this item with other tie down hardware so your fit out stays consistent across trailers.
