Description

Overview

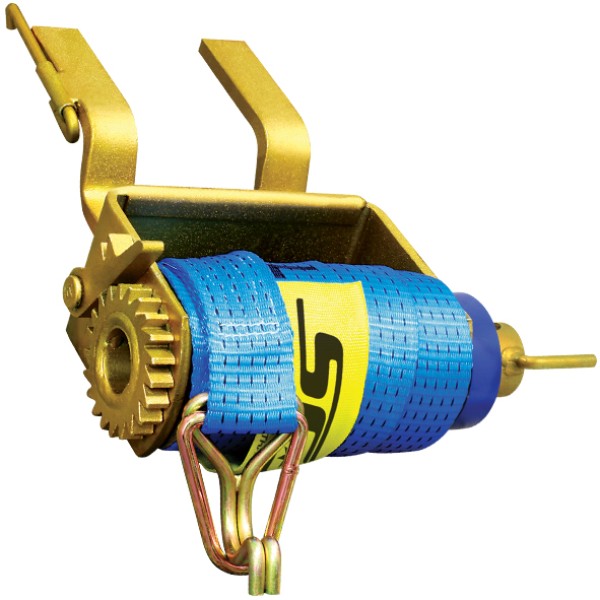

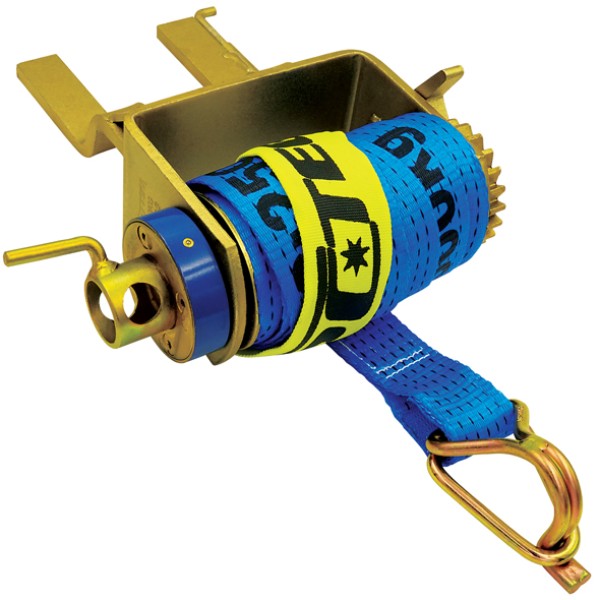

The Clip On Ratchet Cap Winch Strap 50mm x 9m lets you tension webbing on trailers and transport gear. It pairs a clip-on style winch with a ratchet cap, so you can apply tension and lock it in. That control helps when you need consistent tie-down force across a load. Use it for everyday restraint jobs where a clear rating supports safe selection.

Features

• Clip-on ratchet cap winch for quick set-up and controlled tension.
• 50mm wide webbing strap with 9m length for common trailer tie-down runs.
• Hook and keeper ends so the strap stays seated while you tension.
• Protective sleeve to help reduce abrasion at contact points.

Specifications and Materials

• Strap size: 50mm x 9m.
• Lashing capacity: 2500kg.
• Webbing: nylon and polyester construction.
• Supplied as a complete winch and strap assembly.

Part number: CA4916.
Use the Transport Victoria securing loads guidance to check rated restraint selection and lashing capacity basics.

Compatibility and Fitment

This assembly suits 50mm webbing load restraint setups that use a clip-on style winch. Before you fit it, confirm the winch mounting style matches your track or anchor point. Also check the handle swing clears nearby hardware. If you use the Clip On Ratchet Cap Winch Strap 50mm x 9m on a multi-strap load, keep strap angles similar. That way tension stays even.

Compliance and Safety

The strap meets AS/NZS 4380 requirements as supplied, so it suits rated webbing restraint use. Even so, you still need to match the method to the load. Shape, friction, and blocking can change the forces that develop under braking. Keep the webbing flat and protect sharp edges. Then re-check tension early in the trip, because loads can settle.

Trailer Applications

Use the Clip On Ratchet Cap Winch Strap 50mm x 9m for general freight, pallet loads, and equipment. It also suits awkward loads where you want quick set-up but still need a positive lock. If your restraint plan needs multiple straps, space them evenly so the load stays stable.
