Nylon Hinge Blade Bush 11.6mm ID

Allan Davis on 18/08/2026

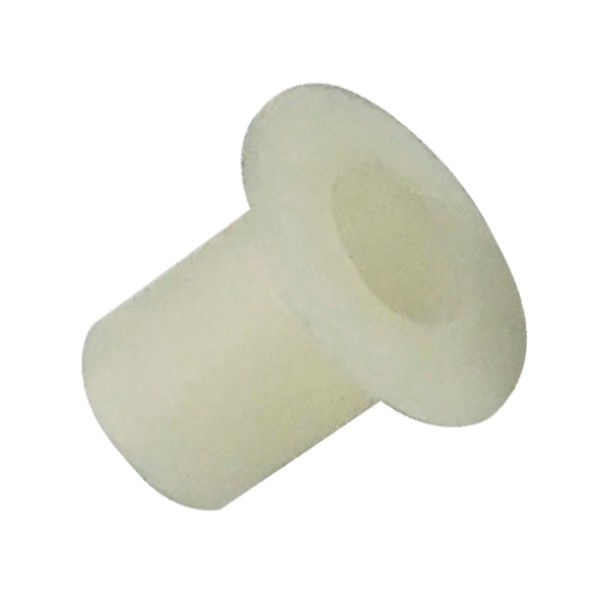

Nylon hinge blade bush with 11.6mm bore and flanged profile

Nylon Hinge Blade Bush 11.6mm ID

$4.00

Nylon hinge blade bush with 11.6mm ID, 16mm body OD, 26mm flange OD and 29mm total length, made to suit the matching pressed door hinge blade and provide the replaceable bearing surface within the hinge joint.

Part number CV1999.

Quick Quote

SKU: CV1999 Category: Tags: , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

The nylon hinge blade bush fits a pressed door hinge blade and provides a replaceable bearing surface around the hinge pivot. Its 11.6mm bore, stepped 16mm to 26mm outside diameter and 29mm overall length are the key dimensions to match.

Features

  • Flanged profile locates the bush against the hinge blade.
  • 11.6mm inside diameter accepts the matching hinge pivot arrangement.
  • Nylon construction provides the bearing surface within the hinge joint.

Specifications and Materials

Product type: flanged hinge blade bush.

Material: nylon.

Total length: 29mm.

Length under top flange: 27mm.

Outside diameter: 16mm body to 26mm flange.

Inside diameter: 11.6mm.

Part number: CV1999.

See the plastic plain bearing installation and measurement guide

Compatibility and Fitment

Compare the 11.6mm bore, 16mm body diameter, 26mm flange diameter and 29mm length with the removed bush. Also inspect the hinge blade bore before pressing the replacement into position.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Suits CV2000 Pressed door hinge blade and butt



Compliance and Safety

Check the mating hinge surfaces for wear or distortion before assembly. Once fitted, move the hinge through its travel and confirm the bush remains seated without binding.

Trailer Applications

Trailer and van body door repairs use this bush when servicing the matching pressed hinge blade assembly.

Why Choose ICS Trailers

Small flanged bushes need more than a quick diameter check. The 11.6mm bore, 16mm body, 26mm flange and 29mm length all affect the fit inside the hinge. ICS Trailers can compare the old bush, hinge photos and measurements when wear makes the original dimensions difficult to identify.

  • Inspect the hinge bore while the worn bush is removed.
  • Check the mating pivot for wear before installing the new bush.
