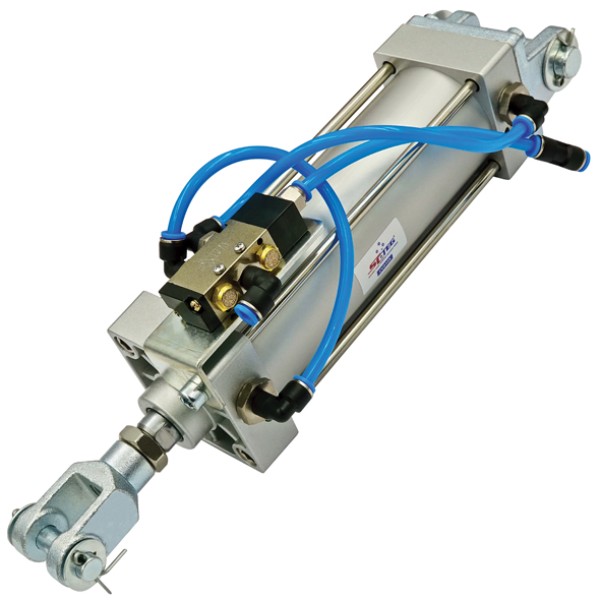

Double acting air tailgate cylinder controls air-operated tailgates and lockable ballrace setups on trailers and body equipment. The cylinder runs between 380mm closed and 520mm open, giving a 140mm operating travel for matching tailgate or lock applications.

Features

• Suits tailgates and lockable ballraces where the cylinder length and pin sizes match.
• 16mm clevis pin and 18mm rear pin size help confirm the mounting setup.
• M10x1.0mm port thread suits the listed air connection layout.
• 240-800kPa operating pressure range supports air-operated trailer body control systems.

Specifications and Materials

This double acting air tailgate cylinder uses an 18mm shaft and suits setups that require a 380mm closed length and 520mm open length.

Part number: CV0105.

Port thread: M10x1.0mm. Pressure range: 240-800kPa, or 35-116psi. Clevis pin: 16mm. Rear pin size: 18mm. Shaft size: 18mm.

The SMC CG1/CDG1 air cylinder guide gives manufacturer technical context for double acting air cylinder selection.

Compatibility and Fitment

Match the closed length, open length, clevis pin, rear pin, port thread and shaft size before ordering. Also check the valve layout and available mounting clearance, because tailgate and ballrace setups can vary between body builders.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 044104, AC63X150P, CG1DN63-150-RFP24129, CG1DN63150RFP24129

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the cylinder mounts, clevis pins, air lines and pilot valve before fitting. Replace worn pins or damaged fittings at the same time, then test the tailgate or lock movement through its full travel before returning the trailer to service.

Trailer Applications

Trailer workshops use this style of cylinder on air-operated tailgates, dolly locks and lockable ballrace systems. For best fitment, compare the old cylinder pin-to-pin length and port position before connecting the air control circuit.
