Brake Drum 360mm x 215mm BPW H90 Eco Max

Allan Davis on 02/06/2026

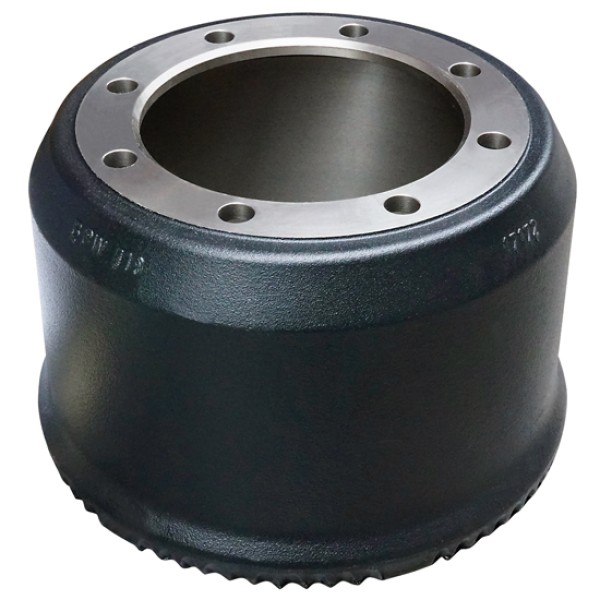

BPW H90 Eco Max brake drum 360mm x 215mm 8 stud
Brake Drum 360mm x 215mm BPW H90 Eco Max - Image 2

Brake Drum 360mm x 215mm BPW H90 Eco Max

$409.00

Brake drum for BPW H90 Eco Max trailer axles with 275mm PCD, 360mm x 215mm brake size, 230mm pilot and 8-hole mounting, so check drum height and mount hole size before ordering.

Part number AP0909G.

Request Freight Quote

Quick Quote

1. My driveway is sealed with an even surface
2. There is reasonable vehicle access with height clearance.
3. I acknowledge the delivery is to the front door, carport, or closest practical delivery point as deemed by the driver.

SKU: AP0909G Category: Tags: , , , , , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

BPW H90 Eco Max brake drum restores the wheel-end braking surface on 8-stud BPW trailer axles. It suits H90 Eco Max setups where the drum must match a 275mm PCD, 360mm x 215mm brake size, 230mm drum pilot, 259mm drum height and 23mm mount holes.

Features

  • Matches 8-hole BPW H90 Eco Max wheel ends with 275mm PCD.
  • Supports 360mm x 215mm foundation brake setups where the drum profile and pilot match.
  • 230mm drum pilot and 23mm mount holes help confirm the fit before the hub is assembled.
  • BPW H90 Eco Max brake drum replacement suits heavy trailer workshop brake servicing.

Specifications and Materials

This brake drum carries the key selection dimensions needed for BPW H90 Eco Max wheel-end matching.

Part number: AP0909G.

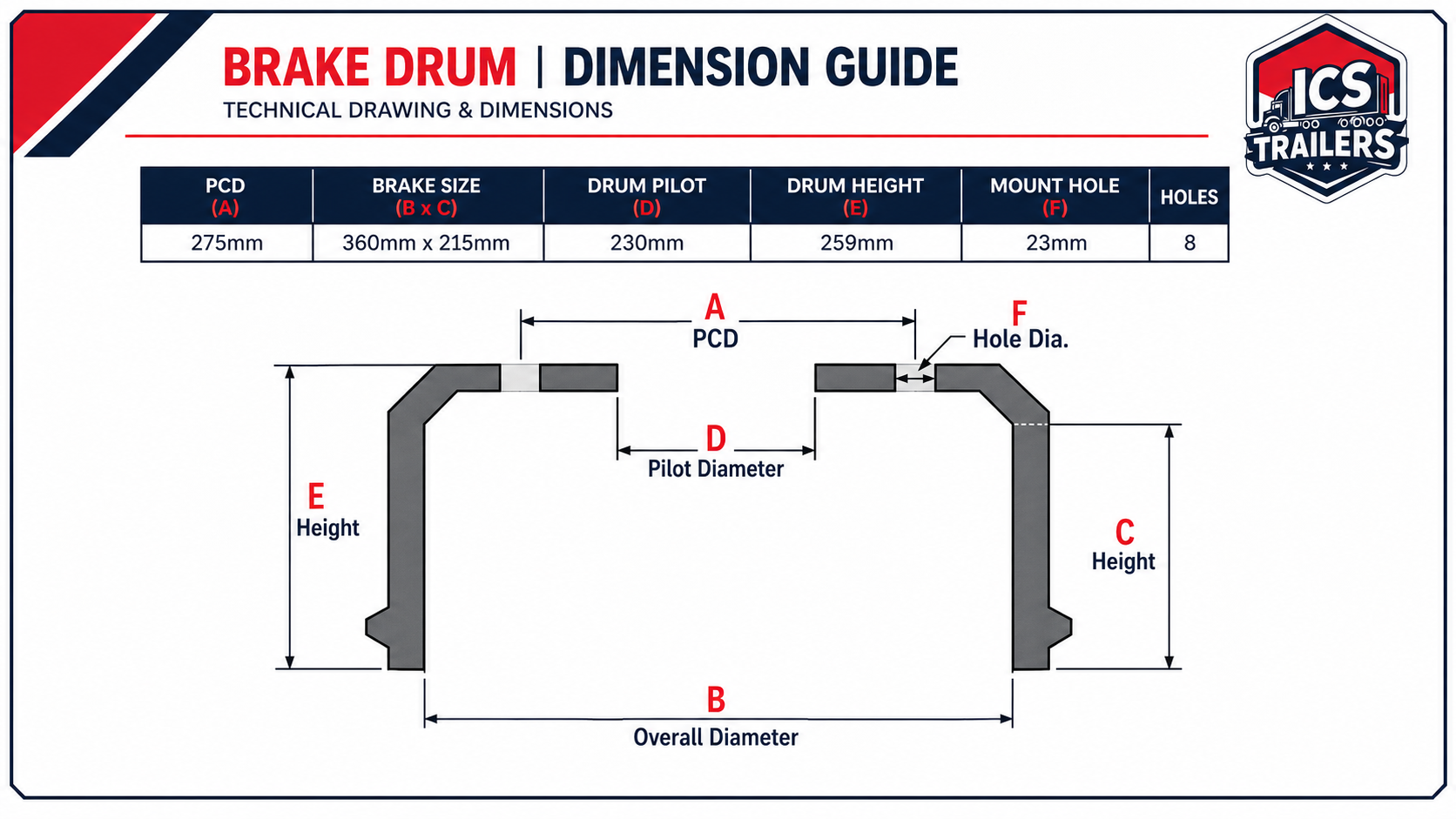

Brake size: 360mm x 215mm. PCD: 275mm. Drum pilot: 230mm. Drum height: 259mm. Mount holes: 23mm. Hole count: 8.

The BPW drum brake catalogue supports BPW drum brake identification.

Compatibility and Fitment

Match the PCD, pilot diameter, drum height, mount hole size and brake size against the drum being removed. Also check the hub style, wheel stud layout and axle setup before ordering, because similar BPW drums can use different heights or bolt patterns.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 03.109.90.03.0, 0310990030

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Hub to suit 0327228730 8-stud Eco Max hub
Wheel stud to suit 0329623240 M22 x 1.5 wheel stud
Wheel nut to suit FPMM905 Flanged wheel nut
Hub cap to suit 0321224250 M125 x 2 hub cap
Brake shoe to suit ZATBGN90B Lined shoe bonded
Lining set to suit BXBC/100/101 Brake lining set
Return spring to suit 0539746130R Brake return spring



Compliance and Safety

Inspect the hub, wheel studs, shoes, linings and mating hardware while the drum is off. Replace cracked, heat-checked, oversize or badly scored drums instead of reusing them. Then torque wheel fasteners and confirm brake adjustment using the trailer or axle service procedure.

Trailer Applications

Workshops fit the BPW H90 Eco Max brake drum during H90 series service work on trailers with 19.5″ wheel-end layouts and 8-stud 275mm PCD hubs. Mechanics usually confirm the brake size and pilot first, then compare the old drum height before assembly.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

03.109.90.03.0 0310990030



Why Choose ICS Trailers

ICS Trailers supplies brake, axle and wheel-end parts for heavy trailer repairs where the dimensions need to be matched before fitting. Browse more Foundation Brakes from ICS Trailers.
