Description

Overview

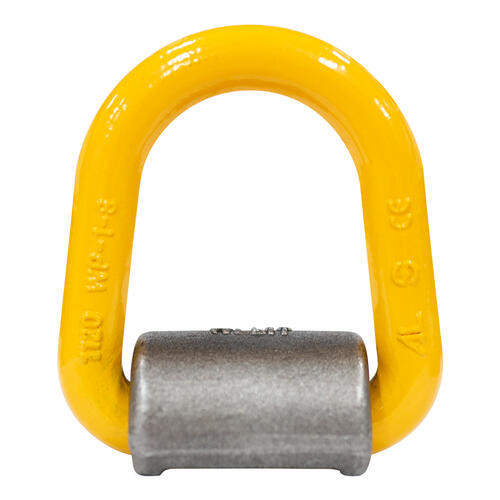

Austlift G80 weld on lifting point 8T gives steel structures, spreader beams and transport equipment a fixed lifting or anchor point. The WP type design welds to suitable carbon steel surfaces, so the lifting point becomes part of the load-bearing structure rather than a removable fitting.

Features

• 8T Working Load Limit for matched lifting and anchor applications.
• Forged alloy steel construction with Grade 80 specification.
• Marked with chain size, batch number, grade, WLL, brand and manufacturing quality mark.
• Includes welding instructions with each unit.

Specifications and Materials

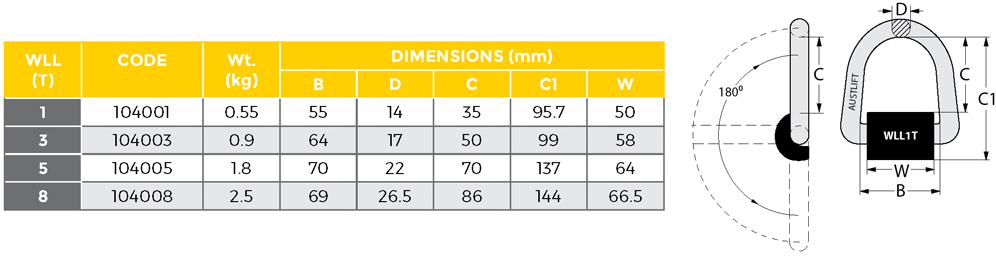

Austlift G80 weld on lifting point 8T suits lifting point, fixed anchor point, spreader beam attachment and load restraint anchor applications where the structure, weld procedure and lifting plan match the rated component. Technical data lists 2.5kg unit weight, 69mm B, 26.5mm D, 86mm C, 144mm C1 and 66.5mm W dimensions.

Part number: 104008.

Use the official Austlift specification sheet when checking WLL, dimensions and loading method limits

Compatibility and Fitment

Check the base material, plate thickness, weld position and lifting angle before fitting. A qualified welder must complete the installation, and a competent person must certify the lifting point before service. When the setup needs a lower rated WP point, match the WLL to the engineered lifting plan instead of oversizing without review.

Related Parts

Check the related WP ratings below against the engineered lifting setup before ordering.

Compliance and Safety

Do not exceed the marked Working Load Limit. Inspect the lifting point, weld and surrounding structure before use, then remove the component from service if it shows cracks, corrosion, stretching, deformation, nicks or scoring. Do not use the point in acidic environments, and apply WLL reduction when operating outside normal temperature ranges.

Trailer Applications

Fabricators and transport workshops use Austlift G80 weld on lifting point 8T on carbon steel equipment, lifting frames, spreader beams and heavy vehicle support gear. For trailer work, it suits engineered anchor locations where the chassis, body or attachment structure can safely carry the applied load.

Why Choose ICS Trailers

This weld on point gives workshops a rated fitting for controlled lifting or anchoring work rather than using unmarked fabrication hardware. ICS Trailers supplies workshop hardware alongside trailer components, so fabrication and service items can stay with the rest of the order. Shop more through the Hardware parts category
