Description

Overview

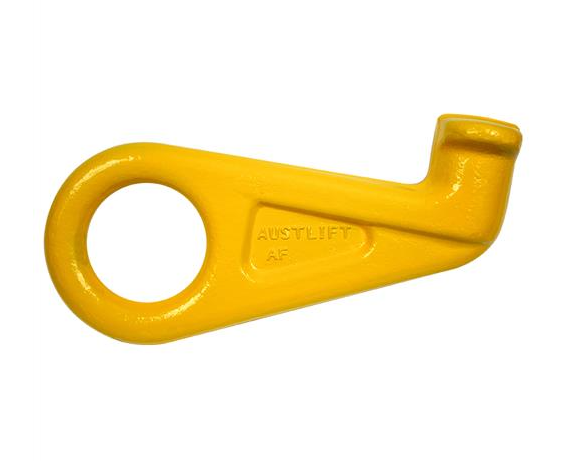

G80 container hook left hand secures the bottom-left corner casting connection when lifting shipping containers with the correct spreader beam setup. The eye type design gives the sling connection a large opening, so the hook can be matched with suitable lifting gear while keeping the container connection specific and controlled.

Features

• Left hand 45° configuration for bottom-left container corner castings.
• Large diameter eye suits web sling and G80 chain connection.
• Forged super alloy steel, quenched and tempered for lifting service.
• Marked with chain size, batch number, grade and manufacturer quality mark.

Specifications and Materials

This G80 container hook left hand carries a 12.5T working load limit and suits G80 20mm chain or G100 19mm chain applications. Austlift individually proof tests the hook at 2.5 times working load limit and fatigue tests it at 1.5 times working load limit for 20,000 cycles.

Part number: 104412.

Use the official container hook specification when checking rated lift details and installation orientation.

Compatibility and Fitment

Match this left hand hook to the bottom-left container corner casting and stadium hole. For a four-point container lift, use the correct left and right hand hook combination with a spreader beam, and do not substitute the top corner castings.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Use the hook only as part of a rated lifting arrangement. Before and after each lift, inspect the lifting eye, hook foot and casting body for deformation, cracking, broken sections or wear. If damage appears, remove the hook from service and replace it before the next lift.

Trailer Applications

Workshops, container yards and transport operators use G80 container hook left hand hardware when lifting containers from bottom corner castings. The left hand orientation matters because it controls how the foot rotates into the casting and seats for lifting.
