Description

Overview

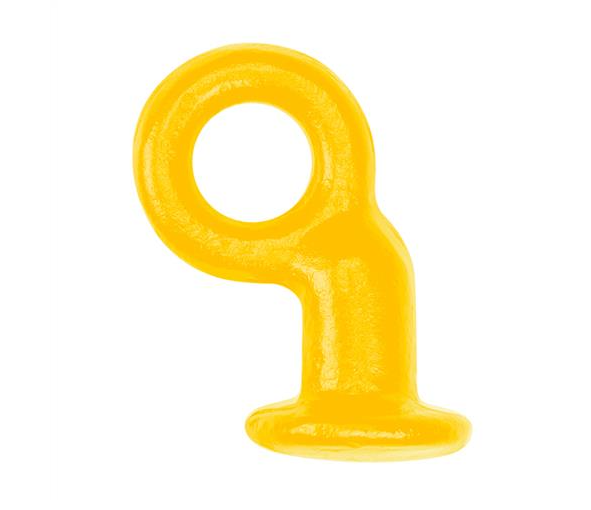

Austlift elephant foot eye 5T gives marine and transport lashing setups a rated eye-style connection point for securing trucks, cars, container chassis and other vehicles. The elephant foot profile suits deck and vehicle-securing work where a compact lashing fitting needs to lock into the matching restraint point.

Features

• 5T lashing capacity for vehicle and container chassis securing.
• 20 tonne minimum break load for the listed eye type fitting.
• Marked with batch number, WLL, grade, Austlift branding and manufacturing quality mark.
• Batch tested, with test certificates available on request.

Specifications and Materials

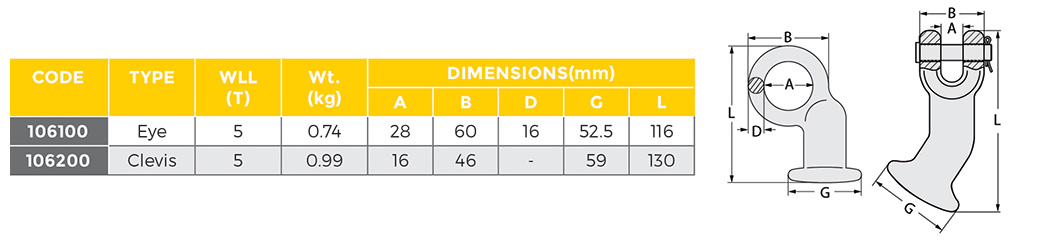

Austlift elephant foot eye 5T has an eye type body for marine lashing and transport restraint applications. The listed eye version carries 5000kg lashing capacity and the catalogue dimensions are 28mm A, 60mm B, 16mm D, 52.5mm G and 116mm L.

Part number: 106100.

Use the official Austlift elephant foot eye information when checking lashing capacity, break load and marking details

Compatibility and Fitment

Check the lashing point, chain end, deck fitting and restraint plan before use. This eye type version suits setups that need an eye connection, while the clevis version suits applications that need a clevis connection instead.

Related Parts

Check the related version below against the restraint setup before ordering.

Compliance and Safety

Do not exceed the marked lashing capacity or use damaged lashing gear. Inspect the fitting, markings and contact areas before service, then remove it from use if the eye, foot profile or bearing surfaces show deformation, cracking, heavy wear or impact damage.

Trailer Applications

Transport operators use Austlift elephant foot eye 5T when securing vehicles and container chassis in marine freight, ship loading and barge transport work. For trailer and yard operations, it suits controlled restraint setups where the matching elephant foot receiver and lashing hardware are already part of the load plan.

Why Choose ICS Trailers

This fitting gives fleets a rated lashing component for vehicle and container chassis restraint rather than relying on unmarked hardware. ICS Trailers supplies load restraint and trailer service parts for transport operators who need restraint gear kept with their regular workshop order. Shop more through the Load Restraint parts category
