Description

Overview

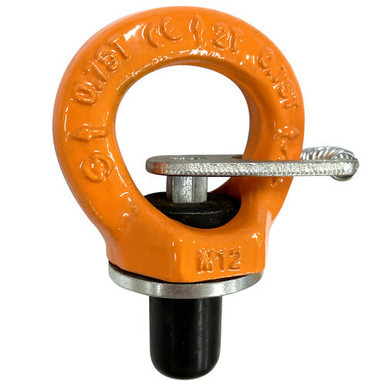

Austlift stubby eye bolt M16 4T gives lifting and rigging setups a compact swivelling load point with an M16 threaded base. The eye rotates 360° with a 90° pivot, so it suits controlled lifting setups where the load direction needs movement without using a fixed eye bolt.

Features

• M16 stubby eye bolt with 4T WLL at 0° loading.
• 1.5T WLL at 90° loading for the listed M16 size.
• G100 forged alloy steel construction with orange painted finish.
• Marked with WLL, nominal size, quality mark and supplier identification.

Specifications and Materials

Austlift stubby eye bolt M16 4T has a compact threaded lifting point body with 0.29kg listed weight. The M16 variant lists 52mm A, 37.5mm B, 63.5mm C, 24mm D, 36mm E and 14mm F dimensions, with 4:1 safety factor and AS/NZS 2317 certification.

Part number: 605016.

Use the official Austlift stubby eye bolt information when checking swivel movement, proof testing and WLL data

Compatibility and Fitment

Check the threaded mounting point, load direction and lifting angle before fitting. The mounting point must suit an M16 lifting thread, and the lift plan must use the correct WLL for the actual loading method, especially when side loading or using multiple lift points.

Related Parts

Check the related sizes below against the lifting setup before ordering.

Compliance and Safety

Do not exceed the marked Working Load Limit. Tighten the swivel ring bolt with a spanner and torque wrench, then inspect the eye bolt before use for clear markings, deformation, cracks, nicks, gouges, bruising, wear and corrosion. These ring bolts do not suit permanent continuous rotation or turning under full load at 90° side loading.

Trailer Applications

Workshops use Austlift stubby eye bolt M16 4T for lifting fixtures, fabricated equipment, service frames and heavy vehicle workshop lifting points. For trailer body and equipment work, it suits engineered attachment points where the threaded mounting location and load direction match the rating.

Why Choose ICS Trailers

This stubby eye bolt gives workshops a rated lifting point for controlled handling work rather than relying on unmarked hardware. ICS Trailers supplies workshop hardware alongside trailer parts, so service teams can keep lifting and repair items with the rest of the order. Shop more through the Hardware parts category
