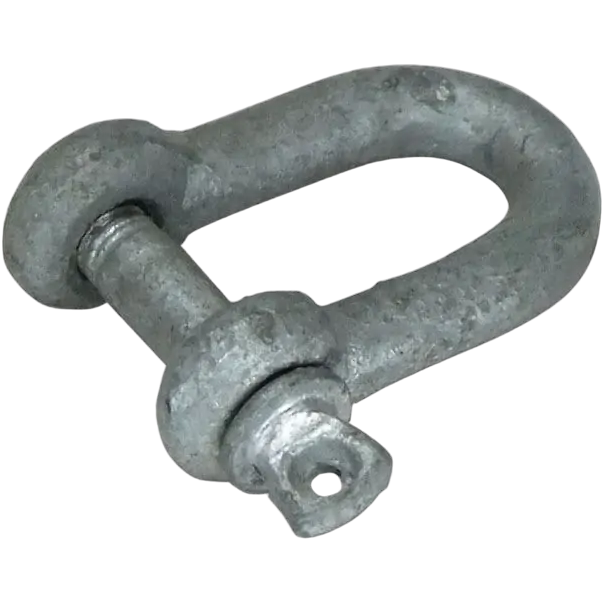

Galvanised D Shackle 10mm
Galvanised D Shackle 10mm
$3.00
Galvanised D shackle 10mm suits chain, rope, bow eye and light trailer winch links where a compact 10.0mm pin, 19.6mm internal width and zinc-coated steel finish are required, supplied as one shackle.
Part number 110016.
Description
Overview
Galvanised D shackle 10mm connects chain, rope and light trailer hardware in compact marine and trailer setups. The D shape keeps the connection tidy, while the 10.0mm pin gives a clear sizing point for matching existing chain links, bow eyes and small winch hardware.
Features
- 10.0mm pin suits matching light chain, rope and hardware connections.
- 19.6mm internal width gives clearance for compact chain links.
- Galvanised steel finish adds corrosion resistance around wet and outdoor gear.
- Includes 1 x D-shackle 10mm galvanised.
Specifications and Materials
The galvanised D shackle 10mm uses an 8.5mm body diameter with a 35.4mm internal length and 19.6mm internal width. The screw pin format lets the shackle open and close for service access, so match the pin and internal width against the trailer, marine or workshop hardware before ordering.
Part number: 110016.
Use the manufacturer catalogue section for size and series checking
Compatibility and Fitment
Check the 10.0mm pin diameter, 19.6mm internal width and 35.4mm internal length against the chain, rope eye, bow eye or light trailer winch connection. Also confirm the job load and hardware rating before putting the shackle into service.
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Related version | 110014 | 8mm galvanised D shackle |
| Related version | 110018 | 12mm galvanised D shackle |
Compliance and Safety
Inspect the pin, thread and body before use, then replace the shackle if the steel has bent, cracked, stretched or worn through the galvanised finish. Do not use light marine hardware for lifting, rated recovery or safety-critical work unless the complete assembly carries the correct rating and documentation.
Trailer Applications
Small trailer and marine setups use a galvanised D shackle 10mm for compact chain joins, bow eye links, rope connections and light winch hardware. Because the shackle has a short throat, it suits tight connection points where larger bow shackles can take up too much room.
Why Choose ICS Trailers
ICS Trailers supplies trailer hardware for practical workshop repairs, fleet maintenance and small hardware replacement jobs.
