Description

Overview

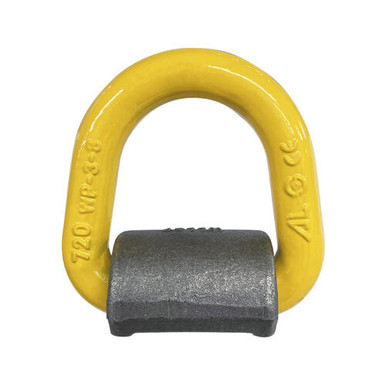

G80 weld on lifting point 5T creates a rated welded anchor point on suitable carbon steel surfaces for lifting, spreader beam attachment and load restraint work. The WP style ring gives a clear lifting connection point, while the welded base keeps the anchor fixed to the trailer, beam, body or fabricated steel structure.

Features

• 5T working load limit for rated lifting and restraint applications.
• Weld-on WP type design suits suitable carbon steel surfaces.
• Marked with chain size, batch number, grade, WLL and manufacturer quality mark.
• Includes welding instructions with each unit.

Specifications and Materials

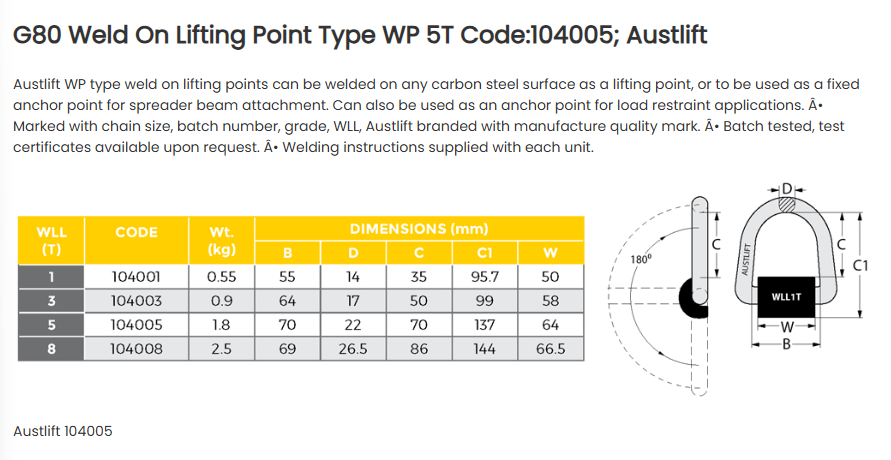

This G80 weld on lifting point 5T uses alloy steel construction with a 4:1 safety factor and AS/NZS 3776 certification marking. The 5T WP unit measures 70mm across dimension B, 22mm across dimension D, 70mm across dimension C, 137mm across dimension C1 and 64mm across dimension W.

Part number: 104005.

Use the official weld on lifting point specification when checking rated lifting details and dimensional fit.

Compatibility and Fitment

Match the lifting point to a suitable carbon steel surface and confirm the finished installation suits the load direction before use. For the 5T unit, the supporting material guide lists a maximum plate width and height of 1560mm, with 12mm minimum plate thickness and 22mm minimum fillet weld thickness.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Have the lifting point welded by a qualified, experienced welder and certify the finished installation before service. Do not exceed the working load limit, and account for WLL reductions in hot or cold environments. Also inspect the ring, base, welds and surrounding steel for cracks, corrosion, wear or deformation during service checks.

Trailer Applications

Workshops use a G80 weld on lifting point 5T when adding a fixed lifting or restraint anchor to trailers, fabricated steelwork, spreader beam attachments and heavy transport equipment. Because the anchor becomes part of the welded structure, correct placement and weld quality matter as much as the rated component.
