Description

Overview

Left hand curtain ratchet tensions Freighter-style side curtain assemblies from the left front or right rear position. The bent handle gives the operator a cranked grip for winding the curtain tight after loading. Use it when the ratchet body, gear or handle no longer holds curtain tension cleanly.

Features

• Left hand curtain ratchet assembly for Freighter-style curtain side setups.
• Matches left hand front or right hand rear applications.
• Bent handle configuration for curtain tensioning access.
• Single curtain ratchet tensioner supplied per unit.

Specifications and Materials

Part number: MTM110073A.

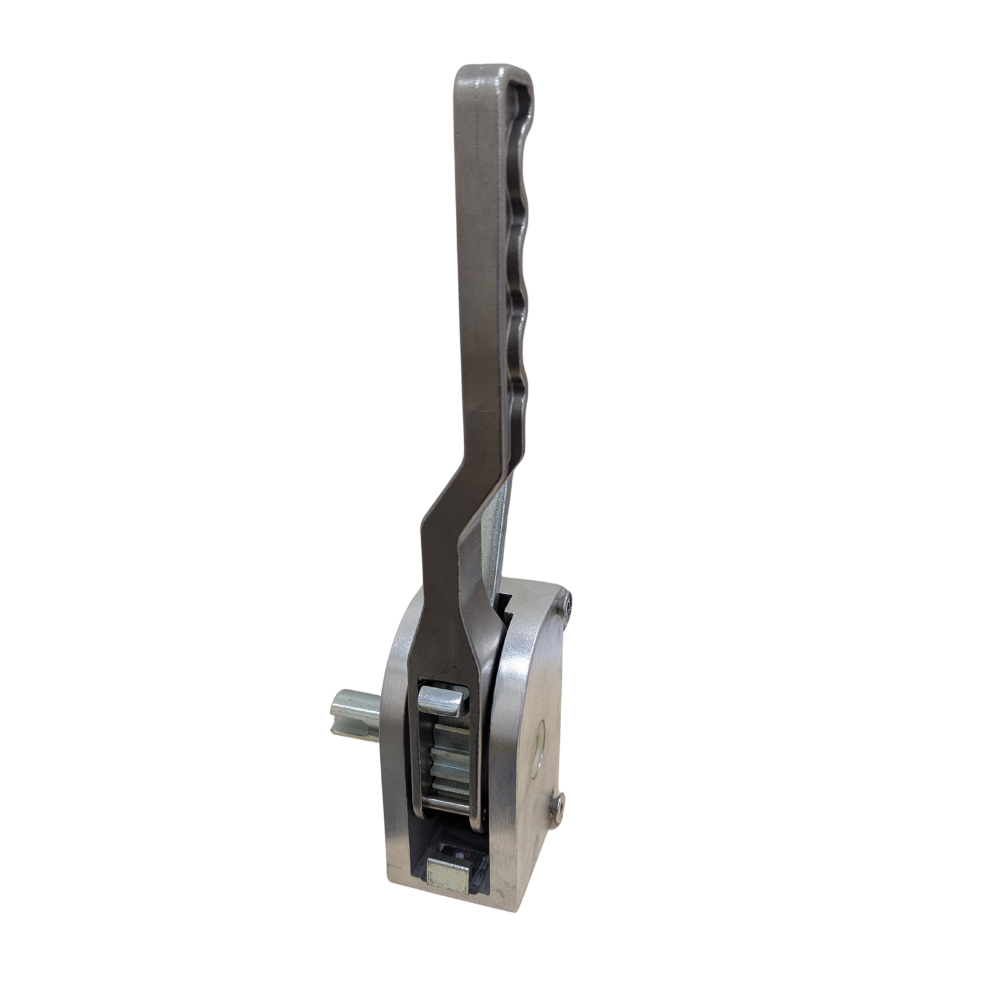

This left hand curtain ratchet uses a metal ratchet body with a bent operating handle and exposed gear section for curtain winding. Match the handed position and the Freighter-style curtain setup before ordering.

WorkSafe Victoria publishes safe handling guidance for side-curtains and tensioners for transport operators.

Compatibility and Fitment

Fit this part to matching Freighter-style curtain side assemblies. Check whether the trailer needs a left hand front or right hand rear curtain tensioner, because the opposite side requires a different handed unit.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. CV4051, 102190F, CV110073A

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the ratchet teeth, locking action, handle movement and mounting points before service. If the mechanism slips, binds or shows damage, replace the left hand curtain ratchet before the trailer returns to work. Also, do not treat the curtain ratchet as a substitute for the trailer’s approved load restraint system.

Trailer Applications

Workshops fit this curtain tensioner on Freighter-style curtain side trailers and vans where a left hand front or right hand rear ratchet assembly controls curtain tension. It suits tautliner and curtain-side service work where the operator needs the curtain to close firmly against the body.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
