Hub Assembly 10×285 TP Long Stud

Allan Davis on 05/06/2026

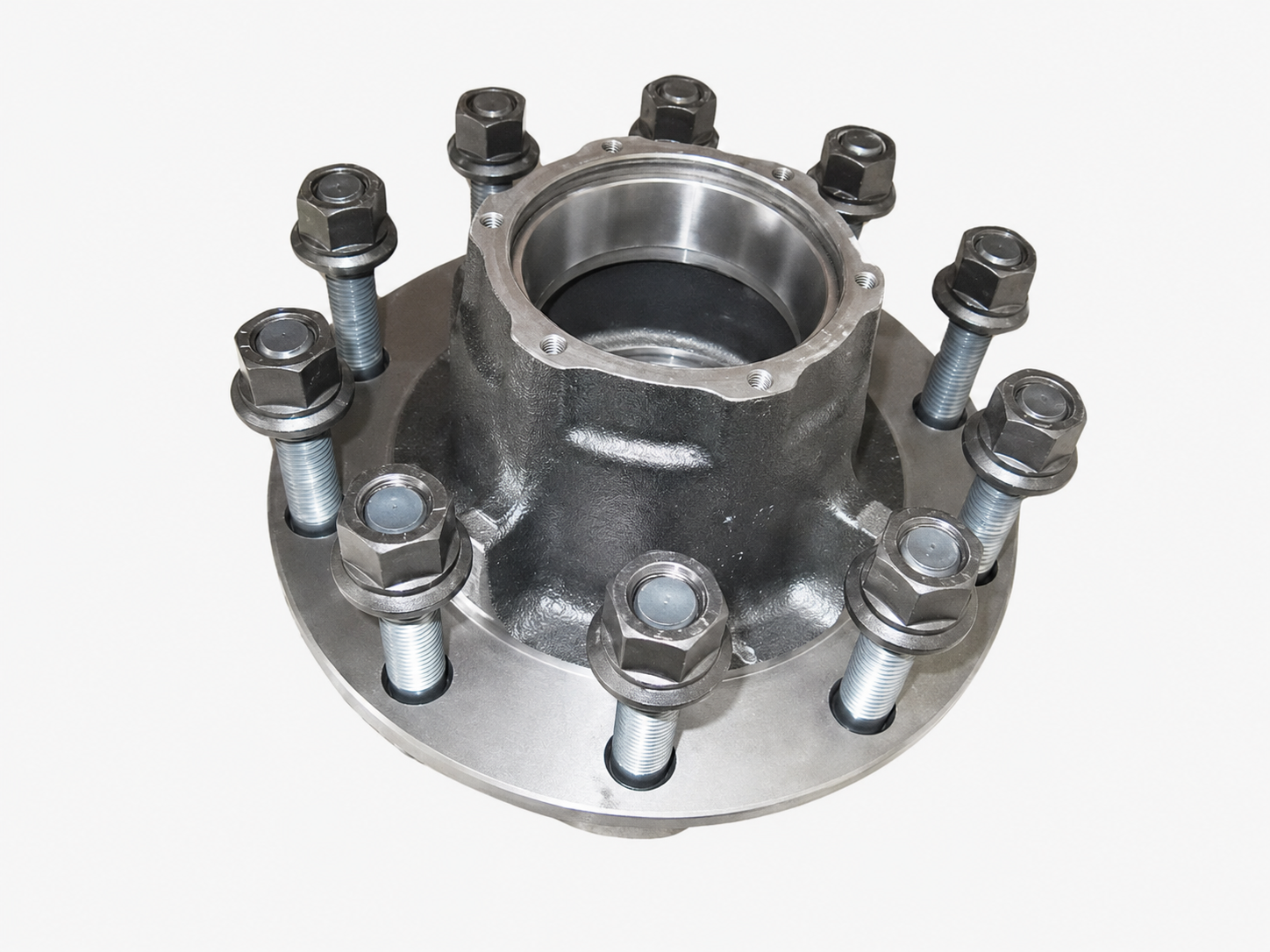

Hub assembly 10x285 TP long stud for trailer wheel end

Hub Assembly 10×285 TP Long Stud

$378.00

Hub assembly 10×285 TP long stud for Fuwa K-Hitch drum brake trailer wheel ends, matching 10-stud 285mm PCD layouts with TP Propar bearing format.

Part number KH3601-0302Z.

Out of stock

Quick Quote

SKU: KH3601-0302Z Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

Hub assembly 10×285 TP carries the trailer wheel end on Fuwa K-Hitch drum brake axles using the Propar bearing layout. It suits long-stud 10-stud wheel ends with 285mm PCD, so match the axle family and spindle type before ordering. Replace the hub when wheel stud seating, bearing fit, sealing face or hub condition no longer supports a clean service build.

Features

  • Long-stud hub assembly for 10-stud 285mm PCD trailer wheel ends.
  • Suits TP Propar bearing layouts on matching Fuwa K-Hitch drum brake axles.
  • Matches wheel ends that use M22 long stud hardware.
  • Use with the matching drum, seal, bearing and hub cap service parts.

Specifications and Materials

Part number: KH3601-0302Z.

Product type: trailer hub assembly. Wheel end details: 10 stud, 285mm PCD, TP Propar bearing format and long stud configuration. Application: Fuwa K-Hitch drum brake trailer axle wheel ends.

Use the official K-Hitch KF22 and KF29 drum brake axle parts view when checking wheel end service parts before ordering.

Compatibility and Fitment

Check the existing hub against the 10×285 PCD, long-stud setup and TP Propar spindle or bearing format before ordering. Use this hub assembly 10×285 TP where the trailer runs the matching K-Hitch wheel end. However, use a TN hub or 10×335 hub instead if the bearing type or PCD differs.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Related version KH3601-0302 Short stud hub assembly
Drum to suit KH3602-0303 10×285 brake drum
Stud to suit KH800239 (H33-0302) M22x122 long wheel stud
Nut to suit KH800096 (H34-0301) M22 wheel nut
Bearing to suit H12-0100 TP inner and outer bearing
Seal to suit 373-0223 (801) TP hub seal
Hub cap to suit KH800205B Screw-on hub cap



Compliance and Safety

Inspect stud seats, bearing journals, seal land and the hub cap mounting area during service. Replace damaged studs, nuts, bearings and seals rather than reusing hardware that will not clamp or seal correctly. After fitting, torque the wheel nuts and set bearing adjustment to the axle service procedure.

Trailer Applications

Workshops fit this hub assembly 10×285 TP on matching Fuwa K-Hitch drum brake axles in heavy trailer service. Fleets running 10-stud 285mm wheel ends use this hub where the long-stud layout and TP bearing format need to stay consistent across the axle.

Why Choose ICS Trailers

ICS Trailers can help compare hub, bearing, seal and hub cap details across the wheel end before you order. Browse more Axles & Suspension parts from ICS Trailers in the Axles & Suspension parts range today.

Online prices apply to website orders only. In-store pricing may differ.
