Description

Overview

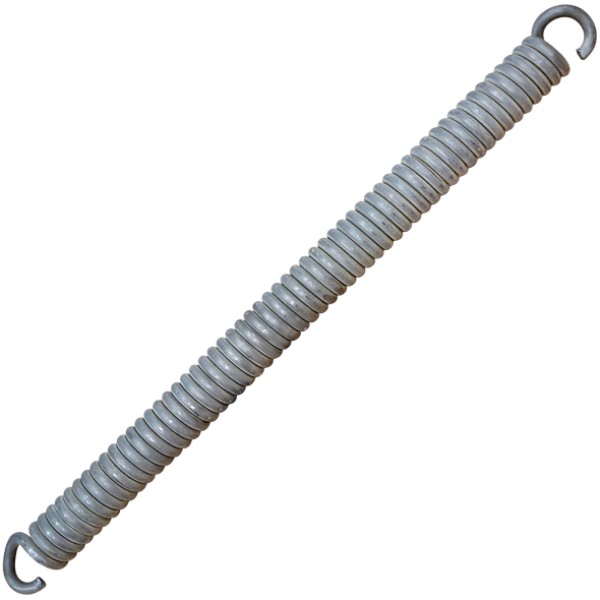

Drawbar support spring helps support and control the drawbar during trailer coupling and uncoupling. It suits pivot drawbar and drawbar casting service work where the spring has lost tension, corroded, stretched or failed.

Features

• 800mm overall length for matching drawbar support setups.
• 53mm spring diameter for direct size comparison before ordering.
• Coil spring format suits drawbar support and assist applications.
• Check both end mounting points before replacing the spring.

Specifications and Materials

This drawbar support spring measures 800mm overall length with a 53mm outside diameter. Compare the old spring length, diameter and mounting arrangement before ordering, because drawbar support setups vary between trailer designs. Part number: TC1253.

Use the ADR mechanical connections overview when checking trailer connection requirements.

Compatibility and Fitment

Match the drawbar support spring to the existing spring length, spring diameter and drawbar mounting points before fitting. If the mounting brackets, hooks or attachment points show wear or distortion, repair those parts before installing the new spring.

Compliance and Safety

Inspect the drawbar area before fitting the spring. Replace damaged mounts, cracked brackets or stretched hardware, then confirm the drawbar moves and returns correctly without fouling nearby brake lines, air lines or coupling components.

Trailer Applications

Workshops replace this spring on trailer drawbar support assemblies where the drawbar needs spring assistance during coupling and uncoupling. The 800mm length and 53mm diameter give clear matching points when comparing against the old spring.

Why Choose ICS Trailers

ICS Trailers supplies drawbar and mechanical suspension service parts for heavy trailer repairs, including support springs, hanger parts and drawbar casting hardware.
