Description

Overview

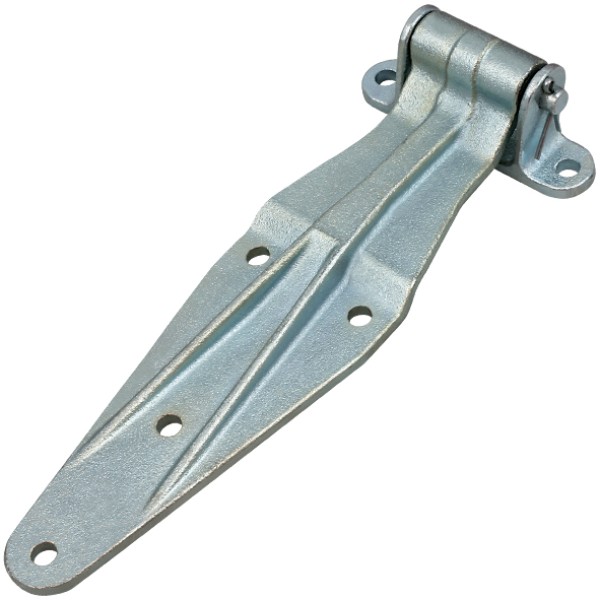

The 4-hole zinc-plated over-seal door hinge combines a pressed blade, hinge pin and butt for trailer and van body doors. Four blade mounting holes provide extra fixing points, while the raised hinge profile passes over the top of a PVC door seal.

Features

• Four blade mounting holes for extra hold.
• Comes complete with blade, pin and butt.
• High-strength zinc-plated steel construction.
• Over-seal profile clears a PVC door seal.

Specifications and Materials

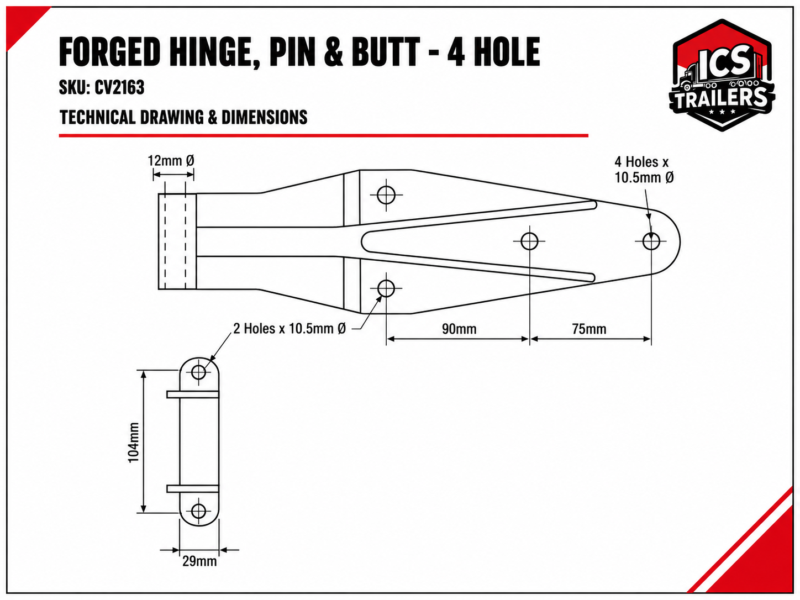

Product type: pressed door hinge assembly. Material: high-strength zinc-plated steel. Configuration: four-hole over-seal blade. Supplied contents: blade, pin and butt.

Part number: CV2163.

For information on zinc coatings for steel, see the GAA metallic zinc coatings guide

Compatibility and Fitment

Compare the existing four-hole mounting pattern, blade profile, butt position and seal clearance before fitting. A different hole layout or flatter hinge geometry can leave mounting points unsupported or cause the hinge to contact the PVC seal.

Compliance and Safety

After installation, swing the door through its full travel and confirm the pin moves freely. Also check that all four mounting positions remain secure and the over-seal section clears the seal without rubbing.

Trailer Applications

This 4-hole zinc-plated over-seal door hinge suits compatible trailer and van body doors that use a pressed hinge over a PVC sealing edge.

Why Choose ICS Trailers

The four-hole blade, over-seal offset and complete blade, pin and butt assembly are the main details to match on this hinge. If the old hardware is bent, worn or partly missing, send ICS Trailers clear photos of the door edge, mounting holes and PVC seal. We can help compare the hinge profile before fitting so the replacement follows the existing door geometry and closes without fouling the seal.
