Description

Overview

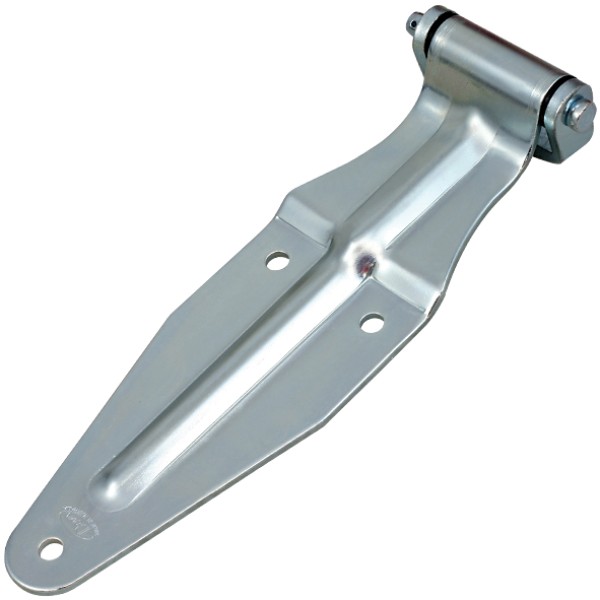

The zinc plated over-seal door hinge combines the blade, pin and streamlined butt for trailer and van body doors. Its raised profile lets the hinge pass over a PVC door seal instead of fouling the sealing edge.

Features

• High-strength zinc-plated steel construction.
• Streamlined hinge butt for the matching door arrangement.
• Over-seal profile clears the top of the PVC door seal.
• Comes complete with blade, pin and butt.

Specifications and Materials

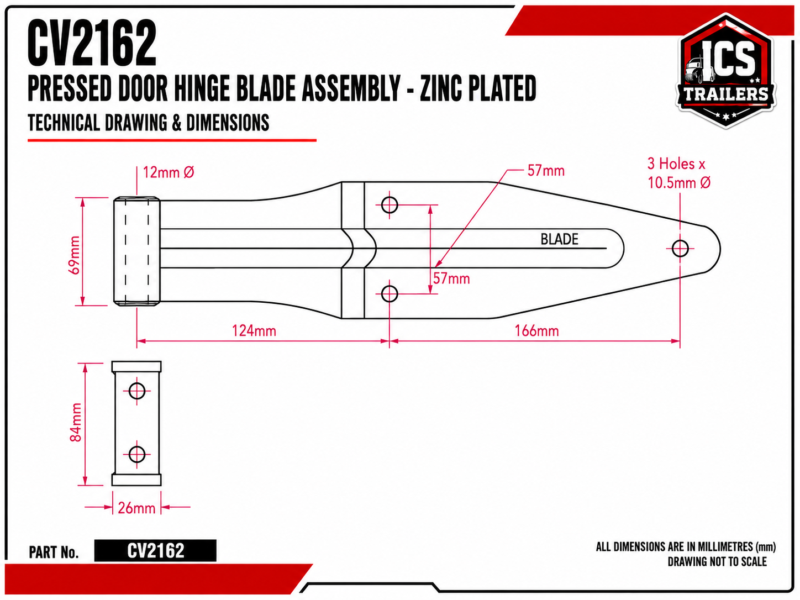

Product type: pressed door hinge assembly. Material: high-strength zinc-plated steel. Configuration: over-seal with streamlined butt. Supplied contents: blade, pin and butt.

Part number: CV2162.

For zinc coating information, see the Galvanizers Association of Australia guide to metallic zinc coatings for steel

Compatibility and Fitment

Compare the existing hinge offset, blade shape, butt position and PVC seal clearance before fitting. A flat hinge or different butt geometry can change door alignment or cause contact with the seal.

Compliance and Safety

After installation, swing the door through its full travel and confirm the pin moves freely. Also check that the blade and butt remain aligned and the over-seal section clears the PVC seal without rubbing.

Trailer Applications

This assembly suits compatible trailer and van body doors that use a pressed hinge arrangement over a PVC door seal.

Why Choose ICS Trailers

The important details on this hinge are the over-seal offset, streamlined butt and complete blade-and-pin assembly. If the original hinge is bent, worn or partly missing, send ICS Trailers clear photos of the door edge, PVC seal and hinge position. We can help compare the profile before fitting, so the replacement follows the existing door geometry and clears the seal correctly.
