Description

Overview

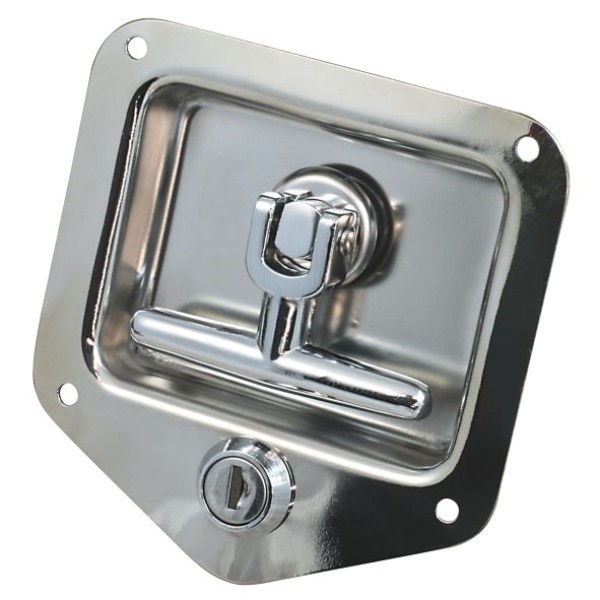

The stainless steel offset tongue T-lock secures trailer body doors, vehicle compartments, drawers, steel cabinets and toolboxes where extra tongue reach covers a larger grip range. Its offset tongue, waterproof seal and heavy-duty rear plate make the locking geometry the main point to match.

Features

• Offset tongue provides a larger grip range.
• Waterproof seal helps protect the lock opening.
• Heavy-duty rear plate supports the lock assembly.
• Stainless steel finish suits exposed body hardware.

Specifications and Materials

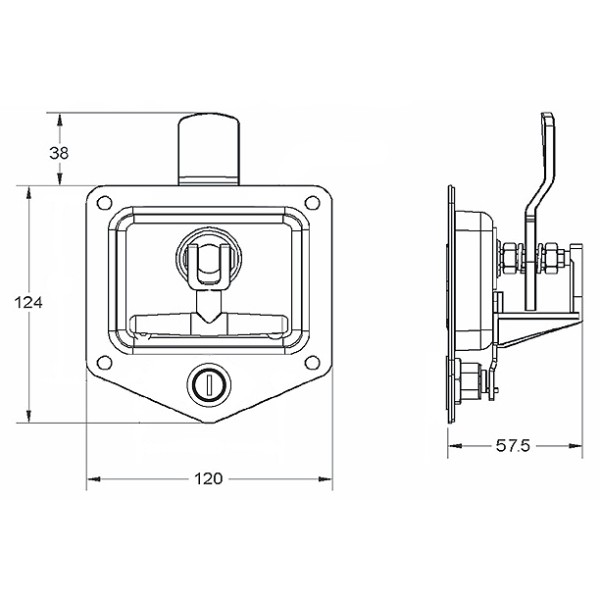

Product type: offset-tongue T-lock. Overall face size: 124mm long × 120mm wide. Finish: stainless steel. Configuration includes a waterproof seal and heavy-duty rear plate.

Part number: CV2606.

For stainless steel material guidance, see the ASSDA stainless steel grade selection guide

Compatibility and Fitment

Compare the 124 × 120mm face, offset tongue shape, grip range and mounting position with the existing lock. If the door needs extra tongue reach, a straight-tongue arrangement can leave the latch geometry incorrect.

Compliance and Safety

After fitting, close and release the lock several times. Then confirm the tongue engages cleanly, the rear plate stays secure and the seal sits evenly.

Trailer Applications

The stainless steel offset tongue T-lock suits trailer and vehicle doors as well as drawers, steel cabinets and toolboxes where the offset tongue provides the required grip.

Why Choose ICS Trailers

The important checks are the 124 × 120mm face, offset tongue and larger grip range because those details control how the lock engages behind the door or compartment edge. If the old lock is damaged or missing, send ICS Trailers photos of the opening, rear mounting area and tongue position. We can help compare the arrangement before fitting, especially where a straight tongue will not reach correctly.
