Description

Overview

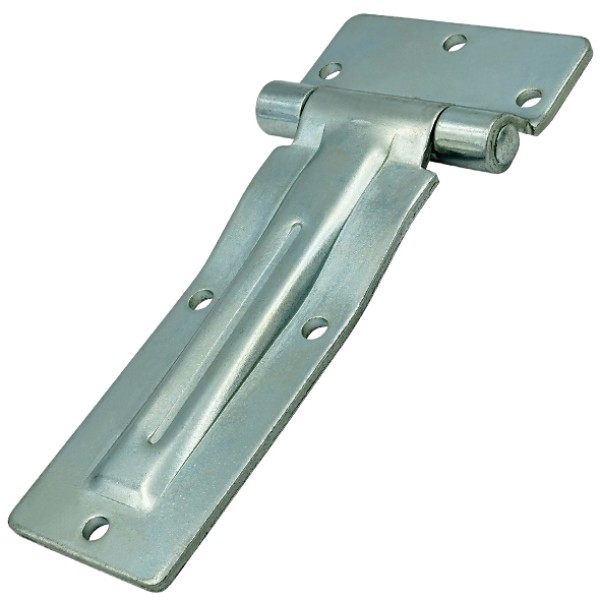

The zinc-plated 3-hole over-seal door hinge supports compatible trailer and van side doors. Its raised hinge path passes over the top of a PVC door seal, so the hinge clears the sealing edge. High-strength steel construction and a 3-hole butt make the mounting pattern and seal clearance the main details to match.

Features

• Over-seal profile clears the top of a PVC door seal.
• Includes a 3-hole butt for the body-side mounting point.
• High-strength zinc-plated steel construction.

Specifications and Materials

Product type: side door hinge assembly. Material: high-strength zinc-plated steel. Configuration: over-seal hinge with supplied 3-hole butt.

Part number: CV2806.

See the Galvanizers Association of Australia guide to metallic zinc coatings for steel

Compatibility and Fitment

Compare the existing butt hole pattern, hinge length, pivot position and offset over the door seal before fitting. The wrong butt spacing can move the door away from its original alignment. Likewise, an incorrect offset can let the hinge contact the PVC seal.

Compliance and Safety

After installation, swing the side door through its full travel and confirm the pivot moves freely. Then check that all three butt mounting points remain secure. The hinge should clear the seal without rubbing or pulling the door out of line.

Trailer Applications

The zinc-plated 3-hole over-seal door hinge suits compatible trailer and van side doors with external hinge arrangements above PVC sealing edges.

Why Choose ICS Trailers

With this hinge, the 3-hole butt pattern and over-seal offset matter more than appearance alone. If the old hinge is bent, worn or partly missing, send ICS Trailers clear photos. Include the door edge, mounting face, hinge position and PVC seal. We can help compare the arrangement before fitting. That way, the replacement follows the existing door geometry and the seal stays clear through the door’s movement.
