Description

Overview

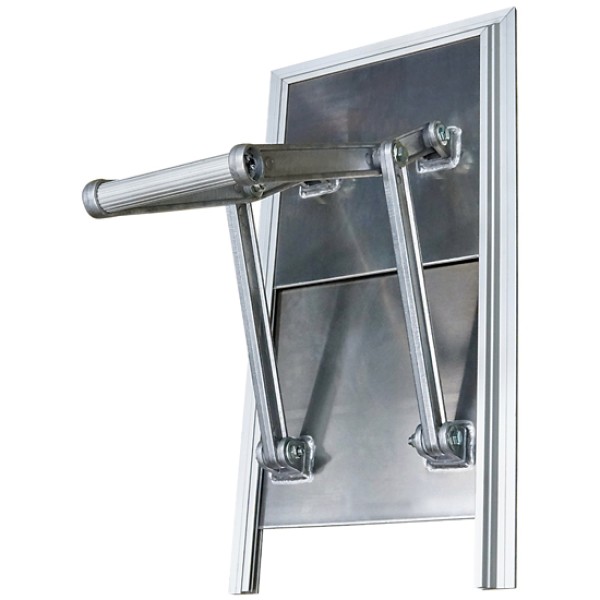

300mm alloy grain door controls grain discharge through tipping body panels where a compact bolt-on outlet suits the build. The aluminium construction keeps weight down, while the heavy duty door design gives the body a controlled opening for grain, seed and similar loose loads.

Features

• 300mm wide grain door for tipping body applications.
• 390 x 790mm OD gives a clear outside size for panel matching.
• Lightweight aluminium construction helps reduce body hardware weight.
• Flat mounting face bolts to steel or aluminium surfaces in any position.

Specifications and Materials

This 300mm alloy grain door uses a compact aluminium body with a flat mounting face for bolt-on fitment. It suits steel or aluminium tipping body surfaces, so check the panel cut-out, mounting face and chute clearance before drilling.

Part number: TAGDN.

For road loading guidance, refer to the NHVR Load Restraint Guide

Compatibility and Fitment

Match the 300mm door width and 390 x 790mm outside dimension against the existing body panel before ordering. Also confirm the mounting surface has enough flat area for secure bolting, because distorted or uneven panels can affect door sealing and operation.

Related Parts

Check the related service part below against the trailer setup before ordering.

Compliance and Safety

Inspect the door, bolts and surrounding body panel during service. If the door binds, leaks or shows impact damage, repair the mounting area before loading because loose bulk product can shift, spill or create a road safety risk.

Trailer Applications

Body builders and repairers fit this 300mm alloy grain door to tipping bodies that need a controlled grain outlet. It suits trailer and truck body repairs where the door must bolt to steel or aluminium surfaces without adding unnecessary weight.

Why Choose ICS Trailers

Choose this 300mm alloy grain door when the job needs a lightweight bolt-on door with known outside dimensions for tipper body fitment. Browse the ICS Trailers Container Van and Tipper category for more body hardware and tipper parts
