Description

Overview

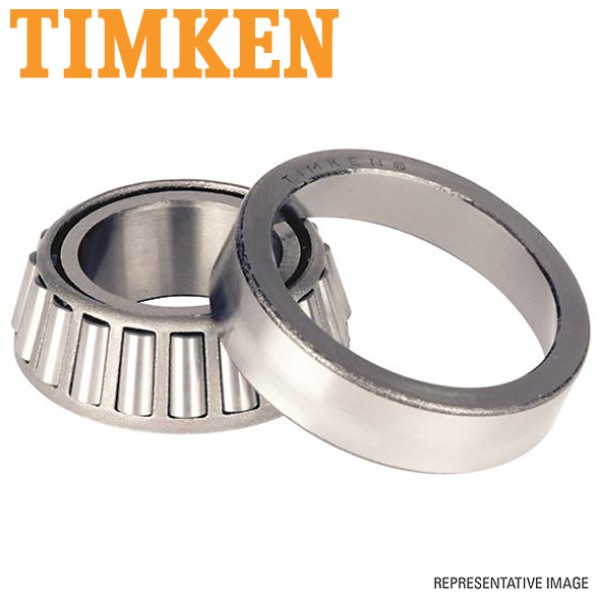

Timken 33213 tapered bearing kit supports BPW trailer wheel end service where a matched outer cup and cone set needs replacement. The kit includes the X33213 cone and Y33213 cup, so mechanics can replace both bearing races together during hub service.

Features

• Includes X33213 cone and Y33213 cup as a cup and cone bearing kit.
• 65mm bore and 120mm cup outer diameter suit 33213 metric bearing applications.
• 41mm bearing width with 32mm cup width for correct BPW wheel end matching.
• Stamped steel cage suits heavy trailer axle service conditions.

Specifications and Materials

This Timken 33213 tapered bearing kit uses metric tapered roller bearing components with a 2kg bearing weight. It carries a 262000 N dynamic radial rating at 1 million revolutions and a 280000 N static radial rating.

Part number: AP0633T.

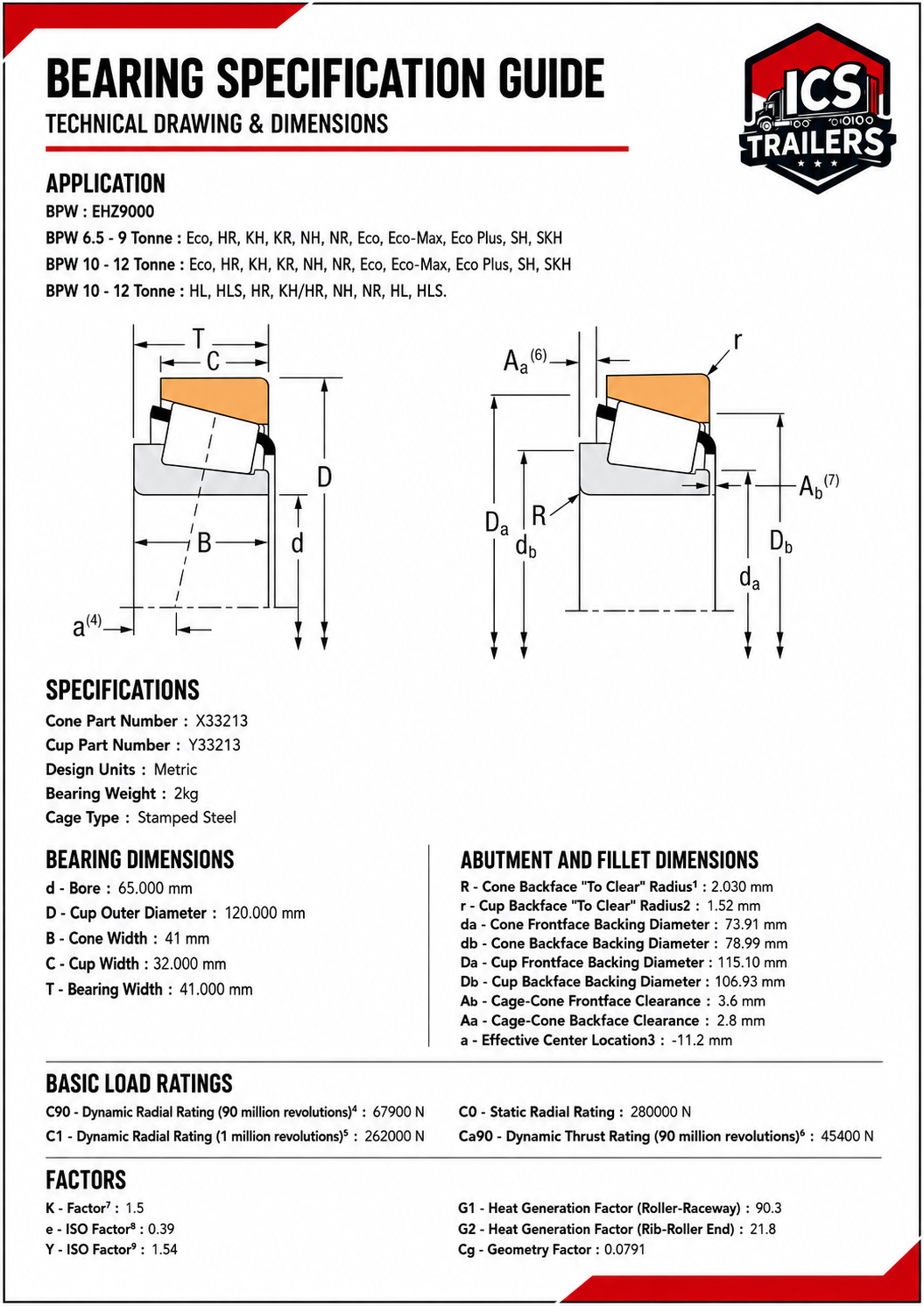

See the Timken X33213 technical page for cone dimensions and rating data

Compatibility and Fitment

Match the 33213 bearing number, 65mm bore, 120mm cup OD and BPW axle family before ordering. This kit suits BPW EHZ9000, 6.5 to 9 tonne Eco, HR, KH, KR, NH, NR, Eco-Max, Eco Plus, SH and SKH applications. It also suits listed BPW 10 to 12 tonne Eco, HL, HLS, HR, KH/HR, NH and NR applications.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. AP0633M, MER33213

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Replace the cup and cone together, then set bearing adjustment to the axle manufacturer procedure. Also inspect the hub, seal, spindle and lubricant condition because bearing damage often follows contamination, incorrect preload or worn wheel end components.

Trailer Applications

Trailer workshops fit this bearing kit during BPW hub rebuilds, wheel end inspections and axle service work. Fleets use the Timken 33213 tapered bearing kit where the bearing number and BPW application match the existing assembly.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

Choose this Timken 33213 tapered bearing kit when the service job needs a known cup and cone set for BPW trailer wheel end repair. Browse the ICS Trailers Axle Parts category for more trailer axle and wheel end parts
