V.Orlandi E550B3M 50mm Tow Coupling

Allan Davis on 09/06/2026

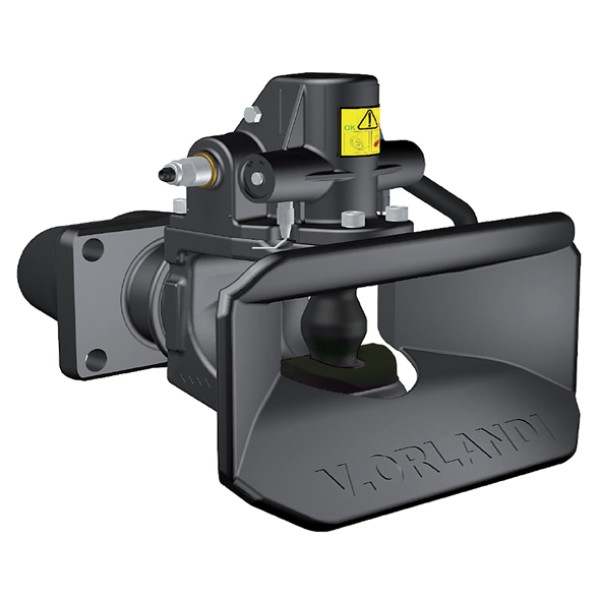

V.Orlandi E550B3M 50mm automatic tow coupling with cast wear pad

V.Orlandi E550B3M 50mm Tow Coupling

$2,675.00

V.Orlandi E550 50mm automatic tow coupling with cast wear pad, ISO 160 x 100mm hole pattern, 330kN D-value, 135kN Dc-value and 2500kg S-value for heavy trailer drawbar applications.

Part number TC8005.

Available on back-order

Request Freight Quote

Quick Quote

1. My driveway is sealed with an even surface
2. There is reasonable vehicle access with height clearance.
3. I acknowledge the delivery is to the front door, carport, or closest practical delivery point as deemed by the driver.

SKU: TC8005 Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

V.Orlandi E550 50mm automatic tow coupling locks 50mm drawbar eye connections for heavy trailer, dolly and road train towing setups. The E550B3M version uses a cast steel wear pad, automatic closing action and a 160 x 100mm ISO flange pattern for heavy duty mounting.

Features

  • 50mm automatic rigid drawbar coupling for compatible 50mm drawbar eyes.
  • 330kN D-value, 135kN Dc-value, 2500kg S-value and 50kN V-value.
  • Visual lock indicators show whether the coupling pin has engaged or disengaged.
  • Cast wear pad setup with removable service parts for faster maintenance.

Specifications and Materials

The V.Orlandi E550 50mm automatic tow coupling suits ISO 160 x 100mm mounting and 50mm drawbar eye applications. It also gives 35mm hand clearance at the operating handle, which helps avoid knuckle contact around the bell mouth during operation.

Part number: TC8005.

Use the V.Orlandi E550 technical leaflet for published rating and dimensional data

Compatibility and Fitment

Match the flange pattern, 50mm drawbar eye, D-value, Dc-value, S-value and V-value before ordering. Also check the drawbar eye condition and mounting face because worn towing gear can affect coupling lockup, steering movement and wear pad life.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Related version TC8004 E550B3P poly wear pad coupling
Drawbar eye to suit TC8007 50mm flanged drawbar eye
Drawbar eye to suit TC8009 50mm special flanged drawbar eye
Spring kit TC8028 Recalling spring kit
Buffer and bush kit TC8027 E550 and E551 rubber buffer and bush kit
Rebuild kit TC8049 E550 lock pin, bush and pad kit
Wear pad kit TC8043 Cast steel wear pad kit
Wear pad kit TC8048 Nylon wear pad kit



Compliance and Safety

Confirm the coupling rating against the vehicle combination before installation. After fitting, inspect the lock indicators, coupling pin, wear pad, bushes and fasteners during scheduled service because tow coupling wear can create unsafe movement between the towing vehicle and trailer.

Trailer Applications

Workshops fit this coupling to heavy rigid drawbar towing setups, including steering drawbar trailers, central axle trailers, dollies and long combination vehicles. The V.Orlandi E550 50mm automatic tow coupling also suits fleets that want fast service access to the pin, wear pad, bushes and rebuild components.

Videos

These E550 service videos support workshop maintenance on the coupling pin, mechanism and wear pad areas.

Why Choose ICS Trailers

Choose this coupling when the trailer setup needs a high-rated 50mm automatic tow coupling with cast wear pad serviceability and E550 parts support. Browse the ICS Trailers Tow Couplings category for more drawbar couplings, eyes and service kits
