Description

Overview

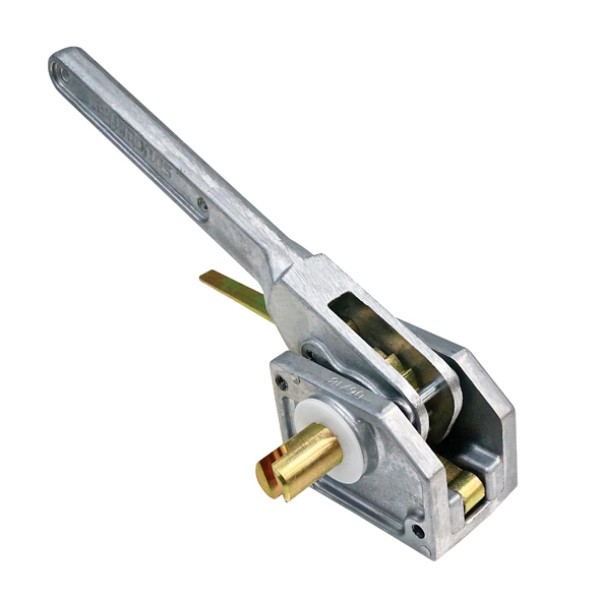

Structurflex curtain tensioner left hand suits curtain sider applications where a small-body straight-handle tensioner is required for the left-hand front or right-hand rear position. This version is for buyers matching the body size, hand orientation and handle style before fitting.

Features

• Small-body tensioner for curtain sider body hardware
• Suits left-hand front or right-hand rear positions
• Straight handle design with flush lock-away handle action
• One-hand release trigger for disengaging the curtain pole

Specifications and Materials

This tensioner uses an alloy housing, high tensile steel shaft, Nylatron bush, alloy handle, investment cast sprocket and pawl, and rolled threads. The Nylatron bush is a molybdenum disulphide impregnated nylon bush used as a self-lubricating bearing surface.

Part number: CV4001.

Small body dimensions are 100mm length, 75mm depth and 65mm height.

Read the manufacturer tensioner guide

Compatibility and Fitment

Match this tensioner to the existing curtain sider hardware before ordering. The main risk is ordering the wrong hand, as this left-hand version suits left-hand front or right-hand rear fitment only. Check the body size, handle style, mounting layout and curtain pole setup against the old unit.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 113003

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the mounting points, shaft movement, pawl engagement and curtain pole release action before returning the trailer to service. Replace worn hardware if the tensioner does not lock, release or hold curtain tension correctly.

Trailer Applications

Workshops fit this type of tensioner to curtain sider and tautliner body setups where the side curtain needs controlled tension and quick release. It is part of the curtain pole and luff groove system, so the hand orientation must match the position on the body.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies curtain sider body hardware for trailer repairs, fleet maintenance and body fit-out work. If you are unsure on the correct hand, send through photos of the old tensioner and its mounting position so we can help narrow down the match.
