Description

Overview

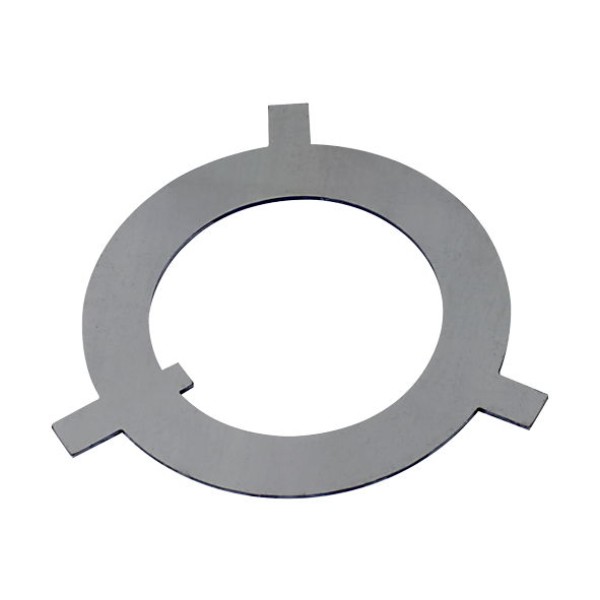

The York axle tab lock washer secures the outer axle nut on matching trailer wheel ends. Its 63mm ID, 94mm OD and 2mm thickness are the key replacement dimensions.

Features

• Tabbed profile locks the outer axle nut after bearing adjustment.
• 63mm ID, 94mm OD and 2mm thickness.

Specifications and Materials

Inside diameter: 63mm. Outside diameter: 94mm. Thickness: 2mm.

Part number: AP4110.

For axle details, refer to SAF-HOLLAND YORK Standard Duty axle information

Compatibility and Fitment

Match the dimensions and tab layout against the removed washer. Do not select by bore size alone.

The following cross-reference numbers identify verified equivalent or replacement parts for this exact application. Confirm the selection-critical fitment details against the part being replaced before fitting.

790044, 79790044, BP4056T, FL12.416, IT12416, WT4056T.

Related Parts

Compliance and Safety

Replace cracked or fatigued tabs. After bearing adjustment, secure the applicable tab over the outer nut.

Trailer Applications

Workshops fit this washer during York trailer axle hub service.

Cross-reference and Suitability

This part cross-references to the following verified equivalent or replacement part numbers:

Why Choose ICS Trailers

A 63mm bore alone does not identify the correct York washer. Compare the 94mm OD, 2mm thickness and tab profile with the removed part. ICS Trailers can help compare old markings, photos and surrounding axle nuts when the washer is distorted or missing.

• Match the nut and washer stack during wheel-end service.
• Use dimensions and tab shape to separate similar washer styles.
