Steer Hub Cap 5.5in 6-Bolt
Steer Hub Cap 5.5in 6-Bolt
$80.00

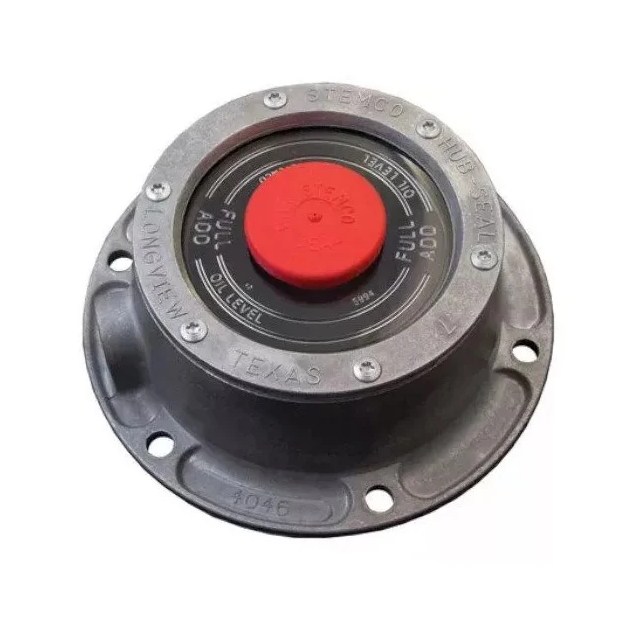

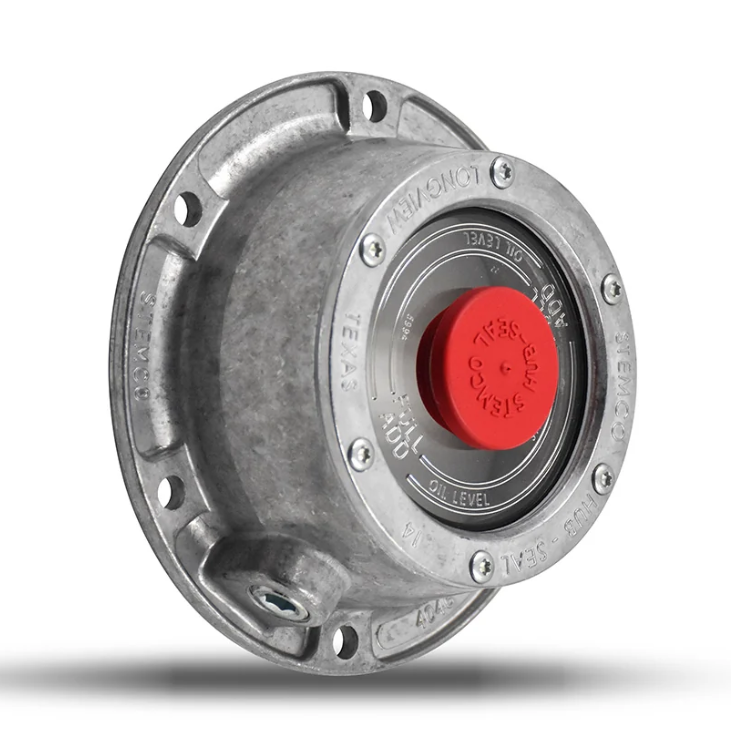

Steer hub cap with 5.5in six-bolt mounting, cast aluminium body, inspection window, red vent plug and side pipe fill plug for matching heavy-duty front wheel ends. Check the bolt circle, flange size and depth before fitting.
Part number 343-4046.
Description
Overview
The steer hub cap closes and vents a lubricated wheel end using a 5.5in bolt circle and six-hole mounting pattern. Its cast aluminium body includes a clear inspection window, red vent plug and side pipe fill plug.
Features
- Six 5/16in mounting holes on a 5.5in bolt circle.
- 6-3/16in flange outer diameter and 4-9/16in flange inner diameter.
- 1-9/16in inside depth with 2-5/16in overall depth.
- Supplied with red vent plug and side pipe fill plug.
Specifications and Materials
Series: 343 traditional aluminium. Material: cast aluminium. Mounting: six-bolt flange.
Part number: 343-4046.
See the official traditional aluminium hub cap technical information
Compatibility and Fitment
Compare the bolt circle, flange diameters and cap depth before fitting. The 5.5in mounting circle separates this version from smaller six-bolt caps.
These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 1643, 1743, 1843, HU009A, 411967P, 921010003, E5HZ1131A, 680272R92, 64046
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Gasket to suit | 330-3009 | Hub cap gasket |
| Replacement component | 359-5995 | Window kit |
Compliance and Safety
Clean the mounting face, remove old gasket material and fit a new gasket. Tighten the 5/16in bolts evenly, then fill to the correct lubricant level and check for leaks.
Trailer Applications
The steer hub cap suits heavy-duty front wheel ends using the matching 5.5in six-bolt mounting pattern.
Cross-reference and Suitability
This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
| 1643 | 1743 | 1843 |
| HU009A | 411967P | 921010003 |
| E5HZ1131A | 680272R92 | 64046 |
Why Choose ICS Trailers
Hub cap fitment depends on mounting geometry, not appearance alone. ICS Trailers can compare the old cap, bolt-circle measurement, flange size and wheel-end details when the original number is difficult to read.
- The matching gasket and replacement window kit can be identified during the same wheel-end service.
- Interchange numbers help when an older cap carries a different manufacturer marking.
