Description

Overview

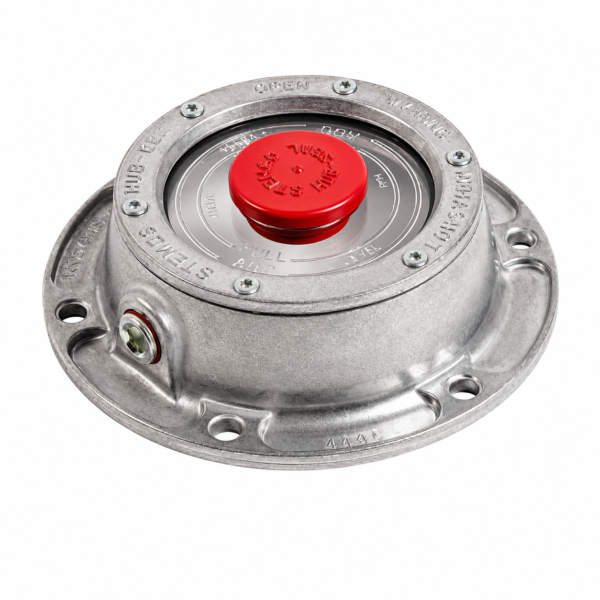

The 5.5in steer hub cap closes an oil-filled wheel end while providing a clear window for lubricant inspection. This shallow 46mm version uses a six-hole mounting flange and side fill plug for matching steer axle hubs.

Features

• 5.5in bolt circle with six 5/16in mounting holes.
• 46mm overall depth and 27mm inside depth.
• Cast aluminium body with clear inspection window.
• Red vent plug and side pipe fill plug.

Specifications and Materials

Flange inner diameter: 116mm. Flange outer diameter: 157mm. Material: cast aluminium. Application: steer axle oil-filled wheel end.

Part number: 343-4095.

See the official traditional aluminium hub cap technical information

Compatibility and Fitment

Check the 140mm bolt circle, six-hole pattern and 46mm overall depth before fitting. A deeper cap with the same 140mm mounting circle is not the same configuration.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 1743, 1843, 64046, HU110A, 411688P, 7023479

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Clean the hub mounting face and remove old gasket material before assembly. Seat the gasket evenly, tighten the six mounting bolts to the applicable wheel-end specification, then confirm the lubricant level and check for leakage.

Trailer Applications

The 5.5in steer hub cap suits steer axle wheel ends using a 140mm six-bolt mounting pattern and shallow oil-filled cap arrangement.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

Hub caps with the same bolt circle can still differ in depth, flange size and wheel-end application. For this shallow 46mm version, compare the removed cap, bolt pattern and overall depth before ordering. ICS Trailers can help identify the correct replacement from old markings, photos or measurements when the original number is unclear.

• Matching gasket, window kit and vent plug references can be checked during the same wheel-end service.
• Interchange numbers help when an equivalent cap carries different manufacturer markings.
