Description

Overview

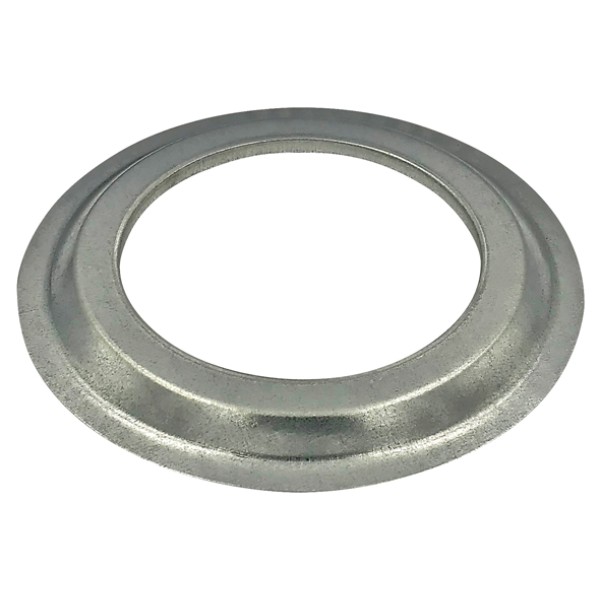

The BPW inner grease shield sits beside the inner 33118 bearing in matching ECO, ECO Plus and ECO Plus 3 trailer hubs. Its 94mm ID, 149mm OD and 8.5mm height are the key replacement dimensions.

Features

• Inner shield for the 33118 bearing position.
• Available in aftermarket and genuine options.

Specifications and Materials

Inside diameter: 94mm. Outside diameter: 149mm. Height: 8.5mm.

Part number: AP4173.

See BPW Wheel End

Compatibility and Fitment

Match the 94mm bore, 149mm outside diameter and hub generation before ordering.

The following cross-reference numbers identify verified equivalent or replacement parts for this exact application. Confirm the selection-critical fitment details against the part being replaced before fitting.

03.010.93.34.0.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Fit the shield squarely and replace it if bent. Inspect the adjacent bearing and seals while the hub is apart.

Trailer Applications

It suits matching 9 to 12 tonne ECO, ECO Plus and ECO Plus 3 H, R, KH, NR and disc-brake wheel ends.

Cross-reference and Suitability

This part cross-references to the following verified equivalent or replacement part numbers:

Why Choose ICS Trailers

The main ordering risk is confusing this 94mm x 149mm shield with a smaller BPW version from a nearby hub family. Compare the old shield dimensions and axle generation before ordering. ICS Trailers can use photos, old markings and wheel-end details to narrow down the match.

• Check the inner bearing and sealing parts while the wheel end is open.
• Use the 94mm bore and 149mm OD to separate similar shield variants.
