BPW ECOPlus 9T Bearing & Seal Kit

Allan Davis on 10/08/2026

BPW ECOPlus 9T bearing and seal kit for grease hub

BPW ECOPlus 9T Bearing & Seal Kit

$305.00

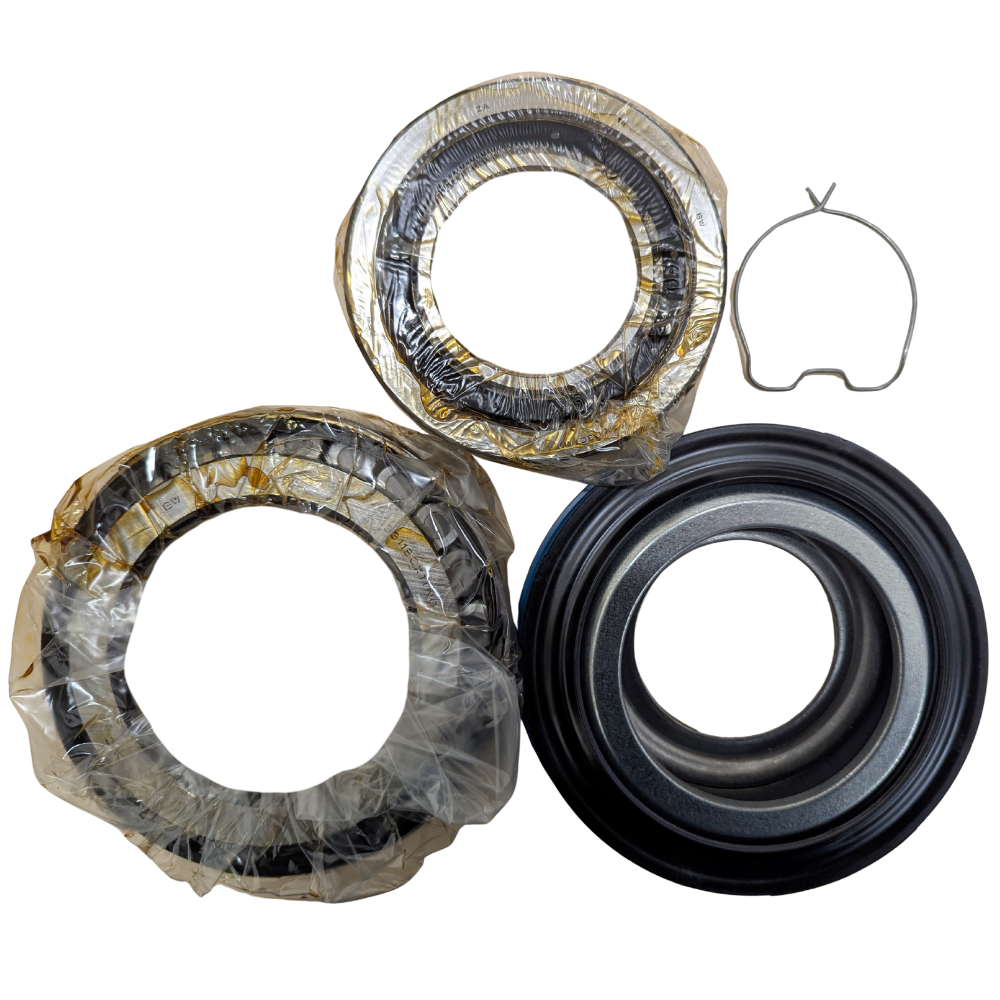

BPW ECOPlus 9T bearing and seal kit for servicing one 9 tonne grease-hub wheel end, with inner and outer bearings plus hub sealing, bearing shield, washer and locking components; seal carrier is not included.

Part number AP0749G.

Quick Quote

SKU: AP0749G Category: Tags: , , , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

The BPW ECOPlus 9T bearing and seal kit services one 9 tonne ECOPlus grease hub, combining the required wheel bearings with hub sealing and retention components for a one-hub bearing and seal repair. The seal carrier is not included, so inspect the existing carrier separately before assembly.

Features

  • Repairs one 9 tonne ECOPlus grease hub.
  • Includes the required inner and outer wheel bearings.
  • Includes hub sealing, bearing shield, washer and locking components for the kit application.
  • Seal carrier is not included.

Specifications and Materials

Part number: AP0749G.

The kit includes the required bearings plus hub seals, dust cover bearing shields, thrust washers, washers, dust seals and O-rings for the applicable wheel end.

See the BPW wheel bearing and seal kit contents diagram

Compatibility and Fitment

Match the hub as a 9 tonne BPW ECOPlus grease-hub assembly before ordering. The wheel-end bearing arrangement uses 33118 inner and 33213 outer tapered roller bearings. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 0980106360TS

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Replacement component AP4235G Hub seal
Replacement component AP0650T Inner bearing 33118
Replacement component AP0633T Outer bearing 33213
Replacement component AP4173G Bearing shield
Replacement component AP4174G Thrust washer



Compliance and Safety

Clean and inspect the hub, bearing seats and retained seal carrier before assembly. Replace damaged mating components, then follow the BPW ECOPlus hub service procedure and use the specified wheel-bearing grease.

Trailer Applications

The BPW ECOPlus 9T bearing and seal kit suits heavy trailer wheel-end servicing where a 9 tonne ECOPlus grease hub needs bearing and seal renewal without replacing the seal carrier.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

0980106360TS



Why Choose ICS Trailers

The main ordering risk with this wheel end is mixing the 9 tonne kit with a 10 or 12 tonne ECOPlus application, or choosing a kit with a different seal-carrier arrangement. If the hub version is uncertain, send the old part number, hub details or clear wheel-end photos so ICS Trailers can compare the setup before you order.

  • Compare the 33118 inner and 33213 outer bearing arrangement when identifying the hub.
  • Check the bearing shield, seals and locking hardware while the hub is apart.
