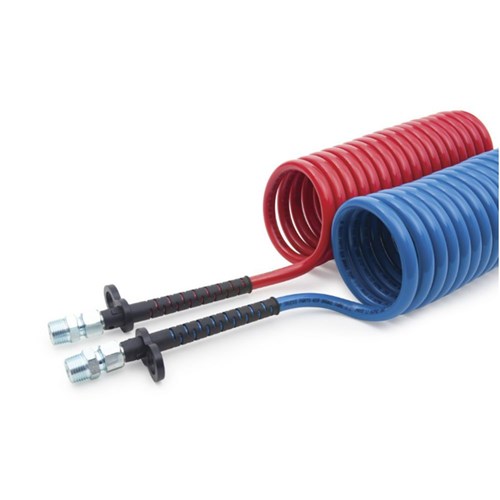

CoilMaster Short Tail Suzi Coil 3.0m
CoilMaster Short Tail Suzi Coil 3.0m
$94.00
CoilMaster short tail suzi coil for truck and trailer air brake connections, with a 3.0m working length, Uni-Fit 1/2″ NPT or 18mm fittings and flexible handle sleeves for compatible European and North American setups.
Part number GP-4000.
Description
Overview
CoilMaster short tail suzi coil carries the trailer air brake connection between prime mover and trailer while allowing movement through the coiled line. The 3.0m working length and Uni-Fit end fittings distinguish this short-tail version.
Features
- 3.0m working length for short-tail truck and trailer connections.
- Uni-Fit fittings adapt to either 1/2″ NPT or 18mm connection arrangements.
- Flexible handle sleeves support handling at the connection ends.
- Compliant with ADR-38/05, ISO 7375 and ISO 7628.
Specifications and Materials
Product type: heavy-duty pneumatic suzi coil. Configuration: short tail. Working length: 3.0m. Connection system: Uni-Fit fittings for 1/2″ NPT or 18mm applications. Includes fitted connection ends and flexible handle sleeves.
Part number: GP-4000.
See the CoilMaster technical specifications for fitting and length details
Compatibility and Fitment
Check the required working length and connection arrangement before ordering. This short-tail version uses a 3.0m working length, so do not substitute the longer 3.75m version where hose routing or movement clearance depends on the shorter configuration.
These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. GPGP4000
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Clamp to suit | GP-9888 | 3-hole Tec Clamp |
| Clamp to suit | GPGP9889 | 4-hole Tec Clamp |
| Related version | GPGP4750 | 3.75m long-tail CoilMaster |
Compliance and Safety
Inspect the coiled line, end fittings and sleeves for cuts, abrasion, leaks or damaged retention before service. Also make sure the line can extend and recoil without fouling the trailer connection area.
Trailer Applications
Workshops fit the CoilMaster short tail suzi coil to compatible European and North American truck and trailer air brake connections that use the matching Uni-Fit arrangement.
Cross-reference and Suitability
This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
| GPGP4000 |
Why Choose ICS Trailers
Short-tail and long-tail suzi coils can look similar until the working length and end connections are compared. If the old line is damaged or unmarked, ICS Trailers can help compare the 3.0m configuration, fitting style and trailer connection setup before you order.
- Support matching air brake connection lines with suitable clamps and hose-management components.
- Help compare supplier codes, connection details and alternative CoilMaster lengths during replacement.
