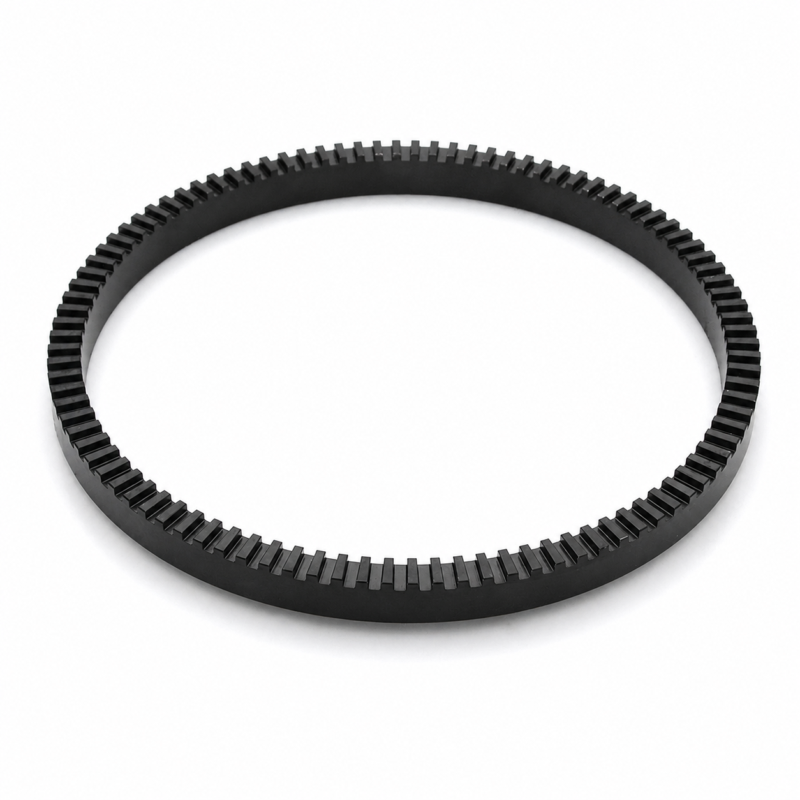

ABS Ring 194mm OD x 176mm ID 100 Tooth – BPW
ABS Ring 194mm OD x 176mm ID 100 Tooth – BPW
$50.00
100-tooth BPW ABS ring with a 194mm outer diameter and 176mm inner diameter for compatible BPW H-series trailer hubs with SN 42 drum brakes. Match the dimensions, tooth count and existing reference before fitting.
Part number 070.411.
Description
Overview
The BPW ABS ring provides the 100-tooth reference surface used by the wheel-speed sensor on compatible trailer hubs. Each tooth passes the sensor as the hub rotates, allowing the ABS system to monitor wheel speed. Replace the ring when corrosion, cracking, looseness or damaged teeth disrupt the sensor signal.
Features
- 100-tooth ABS sensor ring
- 194mm outside diameter
- 176mm inside diameter
- Matches identified BPW H-series hub applications
Specifications and Materials
The ring measures 194mm across the outside and 176mm through the centre. Its tooth count, mounting diameter and fitted position must match the existing hub arrangement.
Part number: 070.411.
See the BPW original spare parts information
Compatibility and Fitment
Check the old reference, 194mm outside diameter, 176mm inside diameter and 100-tooth count before ordering. The main mismatch risk is fitting another BPW ring with similar dimensions but a different tooth count or mounting profile.
These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 0331008140, 0331009350
Related Parts
Check the related wheel-end parts below against the hub assembly before ordering.
| Use | Part number | Part type |
|---|---|---|
| Used with | 070.258/1 | Wheel hub |
| Used with | 070.252A | Wheel hub |
| Service part | 070.712/SD | Wheel hub repair kit |
| Service part | 031.357 | Wheel hub bearing |
| Service part | 070.238 | Wheel hub seal ring |
Compliance and Safety
Clean the hub mounting surface before fitting and install the ring evenly without distorting the teeth. Rotate the assembled hub to confirm the ring runs true, remains secure and does not contact the sensor. Inspect the sensor face, wiring and mounting position while the wheel end is accessible.
Trailer Applications
This BPW ABS ring suits compatible H, H..LL and H (M)..L trailer axle series using SN 42 drum brake arrangements. Match the hub configuration and existing reference before installation.
Cross-reference and Suitability
This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
| 0331008140 | 0331009350 |
