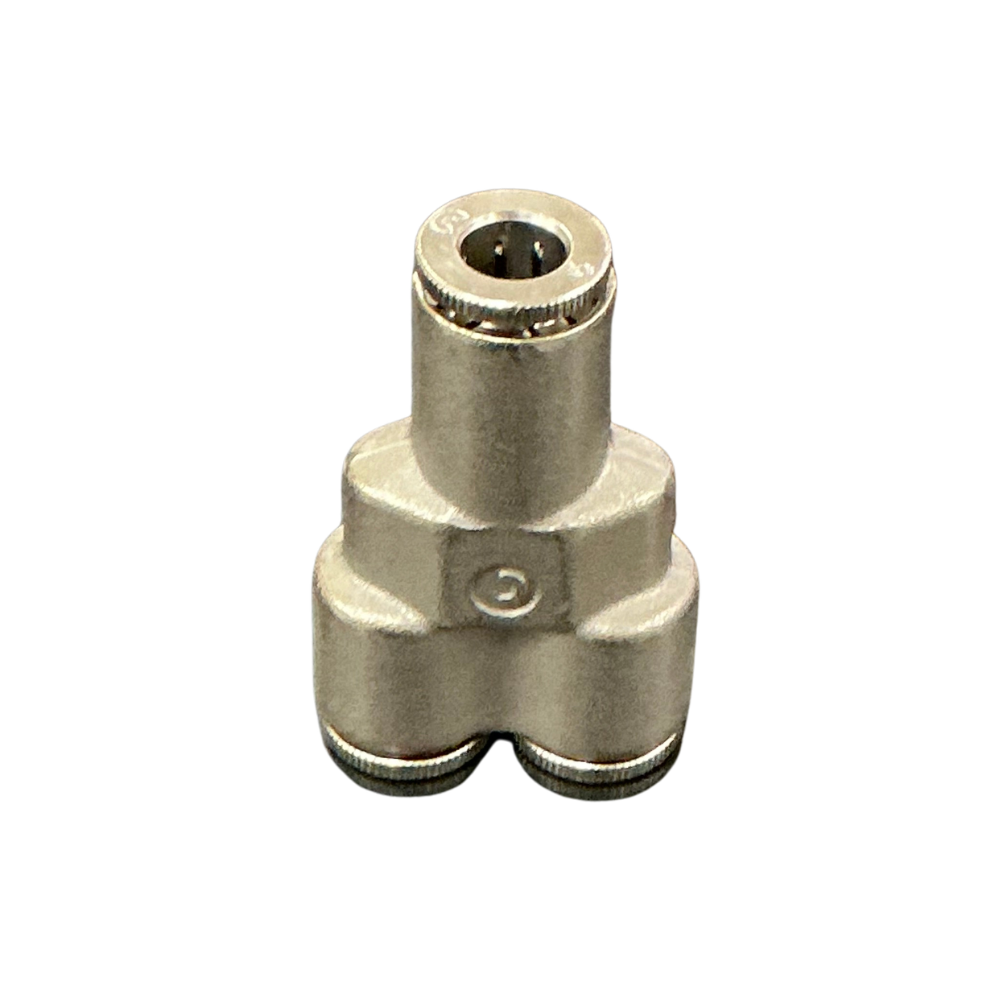

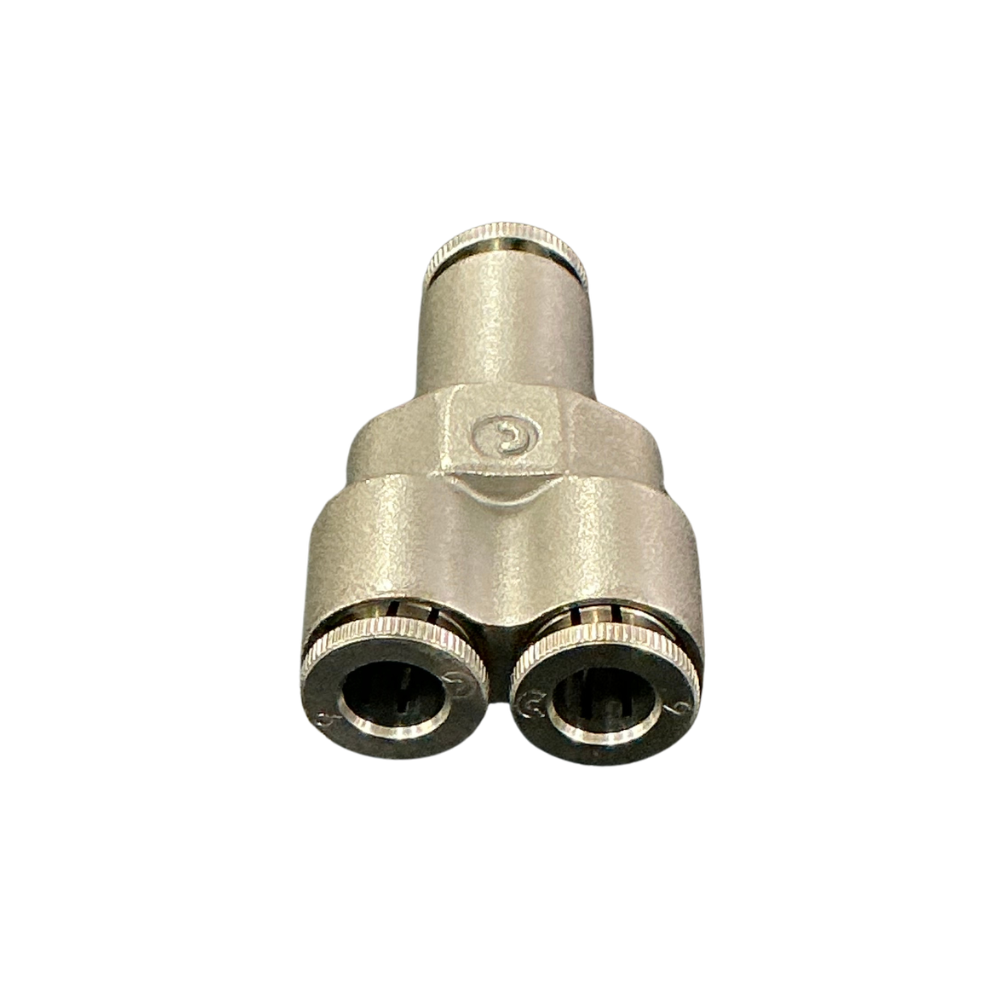

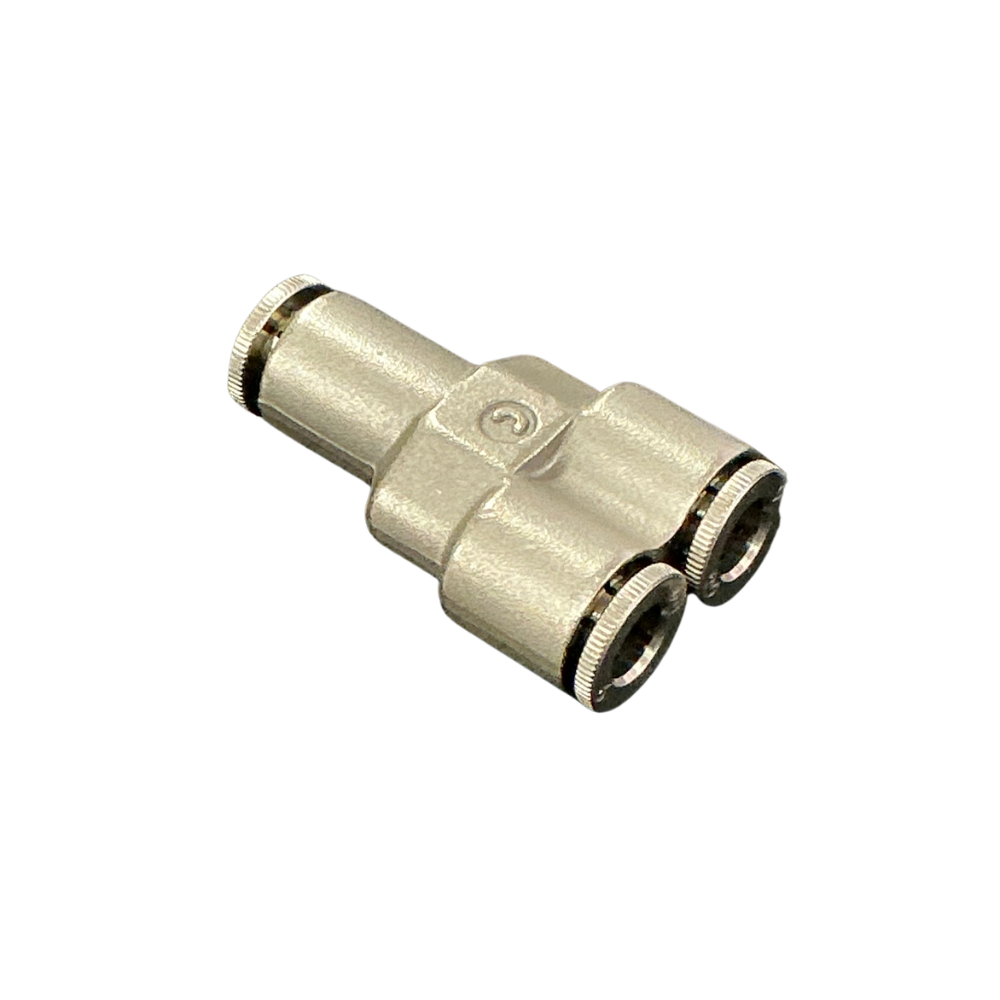

6mm Push-In Y Union Pneumatic Fitting
6mm Push-In Y Union Pneumatic Fitting
$38.00
Equal Y union with three 6mm push-in ports, a nickel-plated brass body and NBR internal seals for compatible compressed-air tubing.
Part number 6560-6.
Description
Overview
The 6mm Push-In Y Union Pneumatic Fitting creates an equal three-way junction between three matching 6mm outside-diameter tubes. Air passes between all three ports, allowing one line to divide into two branches or two compatible lines to meet. It has no regulating, isolating or non-return function.
Features
- Three equal 6mm push-in tube connections
- Y-shaped body for branching a pneumatic line
- Nickel-plated brass body and release collets
- NBR O-rings seal against the tube surface
Specifications and Materials
This Series 6000 fitting carries compressed air through compatible polyamide, polyurethane, polyethylene or Hytrel polyester tubing. Working pressure is -0.9 to 16 bar, subject to the connected tube specification, with an operating temperature range of -20°C to 80°C.
The fitting measures 39mm long and 24.5mm across the two upper ports, with a 12.5mm body dimension. Part number: 6560-6.
See the official Camozzi product datasheet
Compatibility and Fitment
Match the 6mm Push-In Y Union Pneumatic Fitting to tube measured by outside diameter, not inside diameter. The main ordering risk is selecting it for 6mm bore hose or imperial 1/4-inch tube, which is a different size.
Cut each tube square and clean, push it through the release collet to the internal stop, then pull back lightly to confirm retention. Avoid deeply scratched, crushed or oval tube ends because the O-ring seals against the outside surface.
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Plug unused port | 6900 6 | 6mm plastic male plug |
| Protect connection | 6708 6 | 6mm fitting protection cap |
| Release tube | SP | Disconnecting tube set |
Compliance and Safety
Depressurise the circuit before connecting or releasing tubing. Restore pressure gradually and check all three ports for leaks. Replace the fitting if a collet is damaged, the tube will not lock or leakage continues after recutting the tube end.
Trailer Applications
Trailer and fleet workshops can use this equal Y union in compatible auxiliary pneumatic controls, equipment air lines and compressed-air plumbing requiring three 6mm tube connections. Confirm the fitting and tubing suit the pressure, temperature and approval requirements of the complete system.
Why Choose ICS Trailers
For help identifying a close-looking fitting, send a clear photo and the measured tube outside diameter before ordering.
