Description

Overview

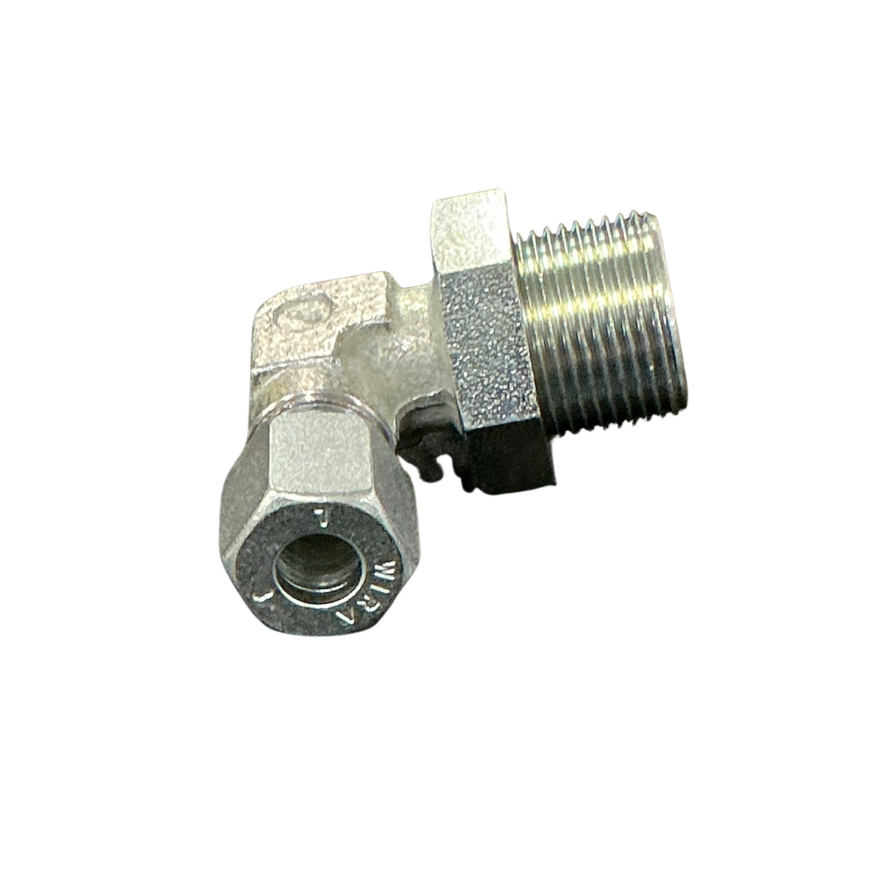

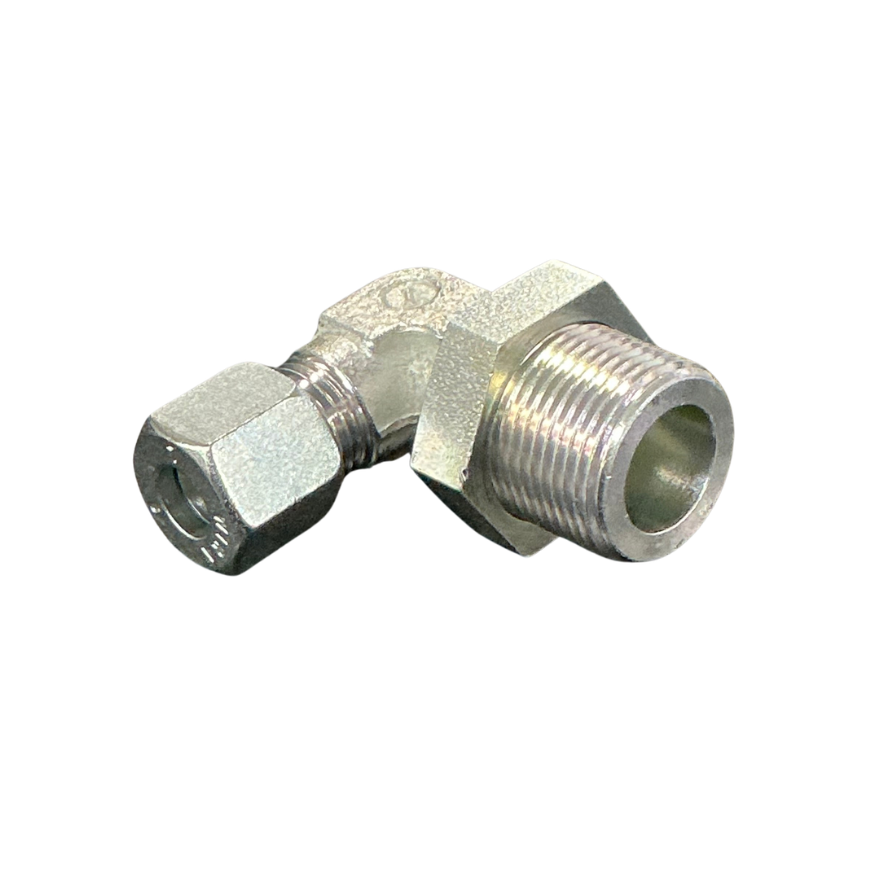

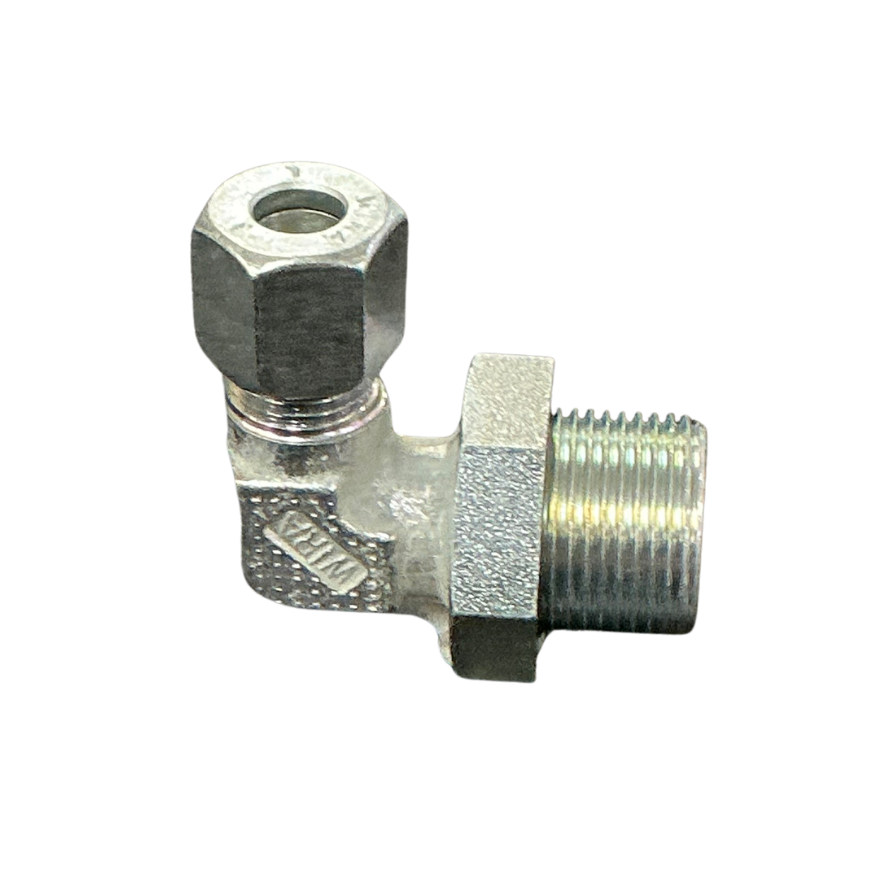

BPW Elbow M22 x 8mm Nylon Tube Fitting connects an M22 x 1.5 male pneumatic port to 8mm nylon tube while turning the air line through a compact elbow. This configuration helps route the tube away from nearby components where a straight connection would create poor clearance or an awkward bend.

The fitting suits replacement work on compatible BPW trailer air systems, but the thread and tube dimensions must match the existing connection. Because M16, M22 and different tube sizes can look similar in service, compare the removed fitting before ordering.

Features

• Standard elbow configuration for a change in air-line direction.
• M22 x 1.5 male threaded connection.
• Tube connection sized for 8mm outside-diameter nylon tube.
• Includes the tube-side compression nut.

Specifications and Materials

Product type: male elbow pneumatic fitting. Connection A: M22 x 1.5 male thread. Connection B: 8mm nylon tube compression connection. Configuration: elbow. The metal fitting body has a plated finish, and the tube-side nut forms part of the supplied assembly. Pack quantity: one fitting.

Part number: 02.4313.11.00.

See the BPW air suspension workshop manual

Compatibility and Fitment

Match the BPW Elbow M22 x 8mm Nylon Tube Fitting against the old part’s thread diameter, M22 x 1.5 pitch, elbow shape and 8mm tube outside diameter. Do not select by tube size alone, because another fitting can accept 8mm tube while using a different port thread. Also confirm that the elbow has enough room to tighten without contacting the valve, chamber or surrounding hardware.

Compliance and Safety

Depressurise the pneumatic system before removing the old fitting. Cut the nylon tube square, inspect the end for scoring, crushing or ovality, and replace damaged tube rather than tightening over it. Then secure the fitting using the correct service procedure and check the connection for leakage after restoring air pressure.

Trailer Applications

Workshops use this elbow when an M22 x 1.5 air-system port must connect to 8mm nylon line in a confined trailer installation. Typical service locations include compatible air brake plumbing, suspension air circuits and pneumatic control connections where the line needs to turn immediately after the threaded port.

Why Choose ICS Trailers

ICS Trailers supplies metric air fittings and nylon-line components for heavy trailer repair work. If the old elbow is difficult to identify, send photos of the fitting, port and tube markings so the team can help compare the connection size and configuration before supply.

Browse more Air Fittings
