Description

Overview

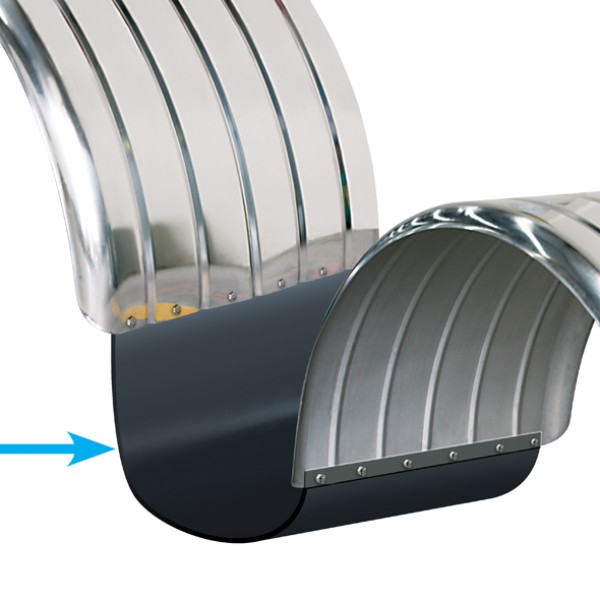

Loop Mudflap Kit Suits 620mm and 650mm Guards helps cut spray between tandem wheels by bridging the gap between two mudguards. It suits wide guard setups where road mist and stones can track through the open space, so it gives you a cleaner, safer finish on the truck or trailer. Because the sheet stays flexible, it also moves with the guard and helps reduce cracking that rigid fillers can cause.

Features

• Connects two mudguards end to end to reduce spray between wheels
• Flexible 3mm sheet for vibration and movement between guards
• UV stabilised material to handle sun exposure

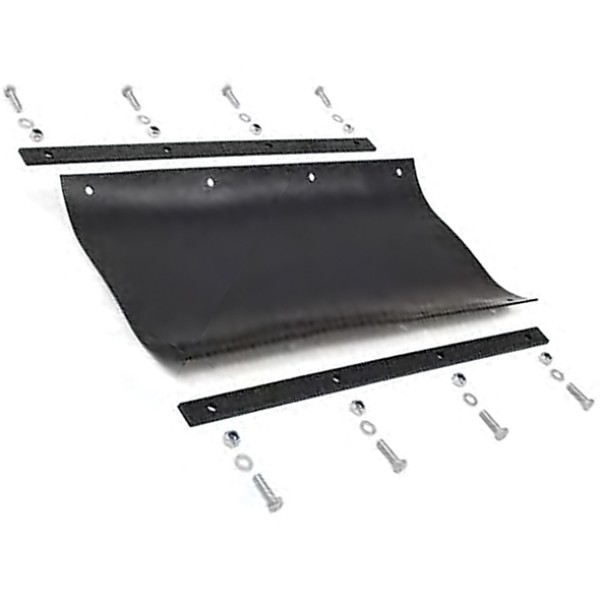

• Supplied with nylon mounting straps and mounting hardware for fitment

Specifications and Materials

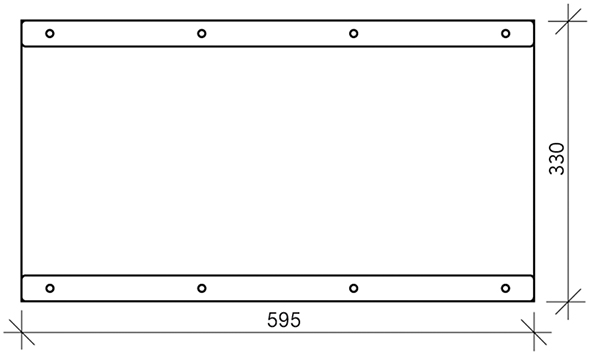

Loop Mudflap Kit Suits 620mm and 650mm Guards uses a 3mm thick flexible rubber sheet with UV stabilisers, then pairs it with nylon mounting straps and included fasteners. The supplied sheet size is 595mm x 330mm, so it covers the gap area while staying easy to position. Part number: CA5499.
For regulatory wording around mudguards and mudflaps, see the Queensland Government vehicle standards schedule which outlines key terms and requirements.

Compatibility and Fitment

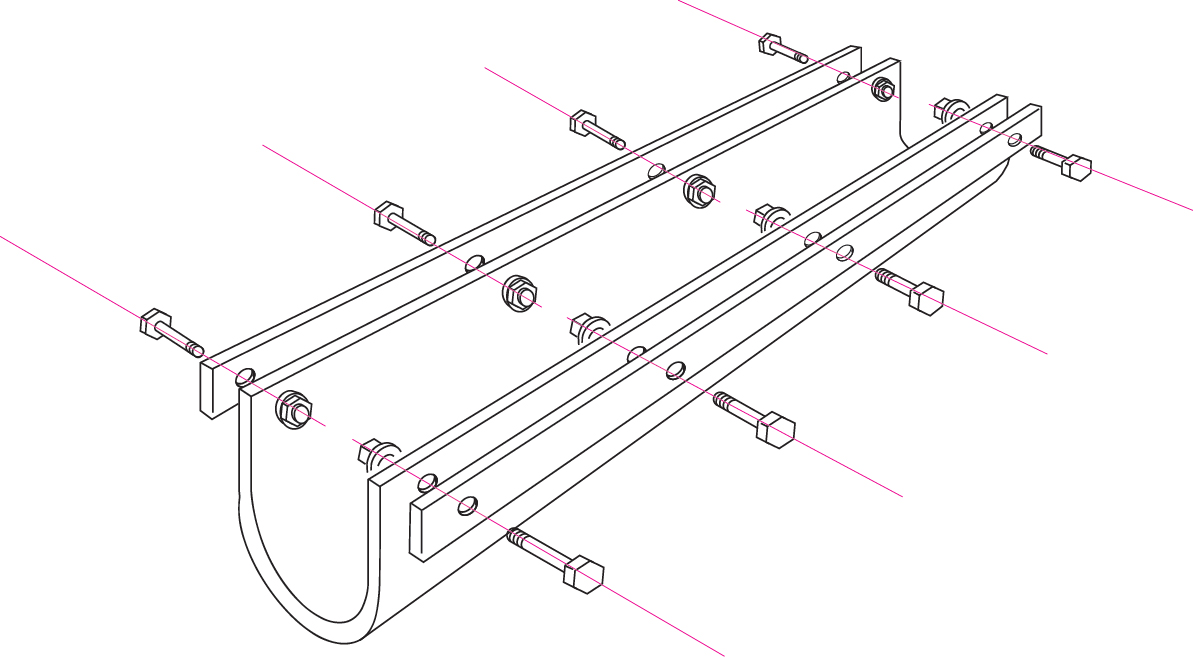

Use this kit on 620mm and 650mm wide mudguards where you want a flexible join between guards. Fit the sheet so it clears tyres and suspension travel, then tension the straps evenly so the sheet sits flat without pulling the guards inward. If your guard profile or mounting points vary, adjust the strap positions instead of forcing the sheet to one side.
This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. LK600

Compliance and Safety

Mudguard and mudflap requirements can differ by vehicle type and jurisdiction, so check the applicable rules before final sign off. Also confirm the sheet does not contact tyres, airlines, or brake components through full articulation. Finally, re-check fasteners after the first trip because rubber can settle slightly once it has flexed under load.

Trailer Applications

• Tandem axle trailers where spray control between guards matters
• Prime mover or rigid setups with wide dual mudguards
• Trailers operating on gravel or wet roads where stone throw increases
• Fleet maintenance replacements during guard or mudflap service

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

When you are keeping a fleet consistent, getting the same kit each time matters, so Loop Mudflap Kit Suits 620mm and 650mm Guards is listed with clear specs for repeat ordering. ICS Trailers also supports practical parts selection for heavy vehicle operators, and we can help you match compatible straps, fasteners, and related mudflap gear. As a result, you avoid mixing random fixings that do not last.
Browse Trailer Parts at ICS Trailers to match related mudflap and guard parts.
