Description

Overview

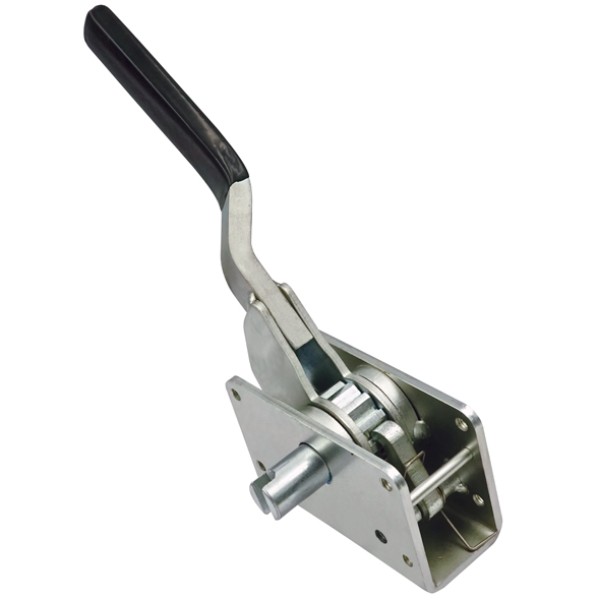

Curtain Tensioner 150 Series Bent Handle is a left-hand curtain tensioner designed to tension and release a trailer curtain in a controlled way. It uses a bent handle for leverage, so you can pull the curtain tight without fighting the luff pole. It also uses a quick release and auto lock action, which helps you reset tension when you open and close the side.

Features

Curtain Tensioner 150 Series Bent Handle suits day-to-day curtainsider use because it combines a simple handle action with a positive holding mechanism.

• Bent handle layout to suit one-hand curtain tensioning
• Quick release action so the curtain can spring free when you disengage
• Auto lock behaviour to help hold the selected tension during travel
• 150mm long base to suit common curtainsider mounting patterns

Specifications and Materials

Part number: CV4057.
This Curtain Tensioner 150 Series Bent Handle is supplied as a left-hand unit with a 150mm long base.
Read the industry guide to load restraint curtain systems for general compliance context and inspection ideas.

Compatibility and Fitment

This curtain tensioner suits curtainsider setups where the application is left hand front or right hand rear. If your trailer uses the opposite handed layout, choose the matching right-hand tensioner instead. Before you order, check the existing base length, handle style, and handed position because curtain hardware varies between bodies.

Compliance and Safety

Curtain hardware affects how the curtain sits against the load, so keep the mechanism in good condition. Check that the auto lock action engages cleanly, and replace parts that slip or bind. Also inspect the mounting fasteners and the bodywork around the base because loose hardware can elongate holes over time. If the trailer uses load-rated curtains, follow the body builder guidance and keep the system maintained to the rated standard.

Trailer Applications

Use this style of curtain tensioner on curtainsider and tautliner trailers where a luff pole and tensioner handle secure the side curtain. It is also common on rigid trucks with curtainsider bodies, however the handed fitment still follows the same left-front or right-rear logic. When you service a curtain system, inspect the luff pole, end fittings, and any straps at the same time so you restore consistent tension across the full curtain length.

Cross-reference and Suitability

No confirmed cross-reference or interchange part numbers were identified for this part from authoritative sources. Match by series, base length, handle style, and handed application.
