Description

Overview

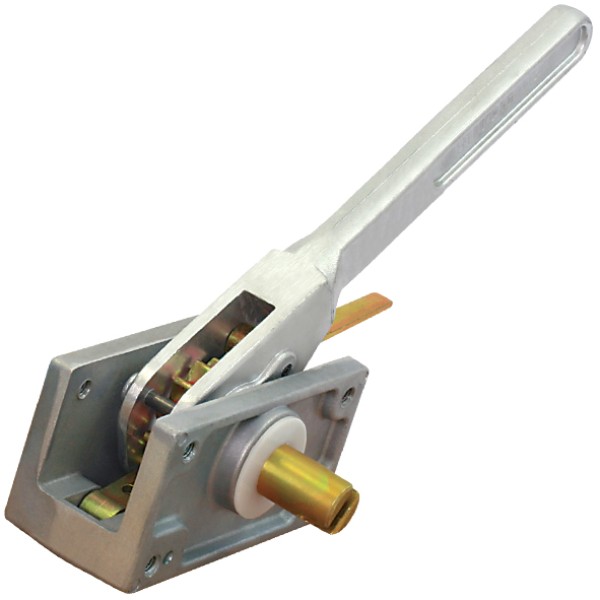

Structurflex Curtain Tensioner Right-Hand lets you tension and release a curtainsider curtain with one hand. This keeps the pole seated and the curtain tight. It suits right-hand front or left-hand rear positions on many curtainsider setups. As a result, you can reset curtain tension quickly between drops.

Features

This Structurflex Curtain Tensioner Right-Hand uses a straight handle that retracts flush. It sits tidy along the trailer side when you stow it away. You pull the handle to tension, and then you hold the release trigger to disengage the shaft. That simple action helps when you need frequent curtain access.

• Single-handed tension and release with a trigger lock.
• Ratchet drive with a precision cast sprocket and pawl.
• High tensile shaft with a clevis designed to suit luff-groove poles.
• Rolled threads to improve thread strength in service.

Specifications and Materials

The body uses an alloy housing with extra reinforcement in high-stress areas. The handle retracts to sit flush with the body after you tension the curtain. Inside, the mechanism runs on a self-lubricating Nylatron bush, and the bush material uses molybdenum disulphide impregnation to reduce friction. The sprocket and pawl use high carbon steel for wear resistance under repeated cycling. Part number: CV4032.
See the manufacturer product guide for general sizing and operation details.

Compatibility and Fitment

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. CV4031

Compliance and Safety

Use the Structurflex Curtain Tensioner Right-Hand only with compatible curtain pole and luff-groove hardware. Keep fingers clear of the ratchet and trigger area during release, because the curtain pole can move suddenly as tension comes off. If the tensioner shows cracking, bent hardware, or worn ratchet teeth, replace it rather than forcing it.

Trailer Applications

This part suits curtainsider trailers and similar side-curtain bodies. It holds the end pole in place against the luff groove while you set curtain tension. It also suits Flexisider style curtain systems, and it helps when you need quick access for multi-drop work. If your trailer uses tensioners at both ends, match the hand orientation at each position. That way the handle movement stays consistent for the operator.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

We stock trailer body hardware and consumables for workshop and fleet work, so you can source related parts in one order and reduce downtime. If you are unsure which hand orientation you need, contact our team with your current setup details. We will help you confirm the correct match.
