Description

Overview

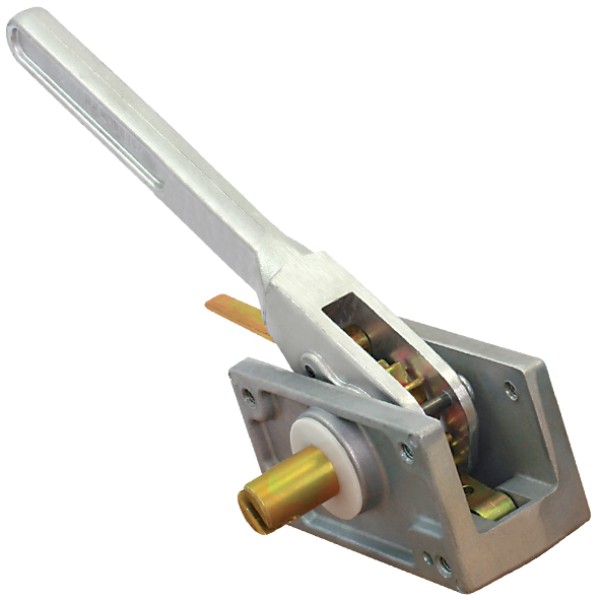

The Structurflex Straight Curtain Tensioner gives fast, controlled tension for curtainsider side curtains, so the curtain stays tight and the pole stays seated under load.

It uses a robust body and a ratchet mechanism, so operators can set tension without fighting the curtain or overworking the handle.

This version uses a straight handle and it suits the left-hand front or right-hand rear position, which helps match the correct hand to the trailer corner.

Features

• Single-handed operation, so drivers can tension or release the curtain quickly
• Release trigger helps you disengage the shaft when you need to unload the curtain
• Ratchet sprocket and pawl design supports repeatable tension control
• Retracting handle sits flush when stowed to reduce snag points

Because you can stow the handle flush, the tensioner can help reduce snagging on straps, buckles, and load restraints when you move around the trailer.

Specifications and Materials

Part number: CV4031.

• Alloy housing with reinforcement in high-stress areas
• High tensile steel shaft with a clevis interface
• Nylatron bush for a self-lubricating bearing surface
• Rolled threads to support strength in service

The handle uses a high tensile alloy casting, and it retracts to lock away flush with the body after you finish tensioning. As a result, it helps keep the side of the trailer tidy and reduces accidental knocks.

Refer to the manufacturer technical guide for the Structurflex tensioner for general product information.

Compatibility and Fitment

This Structurflex Straight Curtain Tensioner suits curtainsider curtain pole setups that use a tensioner to load the curtain and keep the luff groove pole engaged. If your trailer uses mixed hardware, check the hand, handle style, and end position before you order.

Also confirm your pole and base plug arrangement matches the existing clevis connection, because different curtainsider builds can use different pole profiles and end fittings.

Compliance and Safety

Keep hands clear of pinch points when you tension or release the mechanism, and use controlled movement because the curtain pole can spring outward as the tension comes off. If the handle, pawl, or bush shows wear, replace the tensioner rather than forcing operation.

Trailer Applications

You will usually see the Structurflex Straight Curtain Tensioner on curtainsider trailers and curtain-sided bodies where operators open curtains often and want consistent one-hand operation.

It suits general load restraint workflows on semi-trailers and rigid curtain-sided bodies, especially when drivers need to open one end, move freight, and then re-tension the curtain quickly.

Cross-reference and Suitability

At the time of listing, we have not confirmed any equivalent cross-reference part numbers for this Structurflex Straight Curtain Tensioner from manufacturer documentation.
