Description

Overview

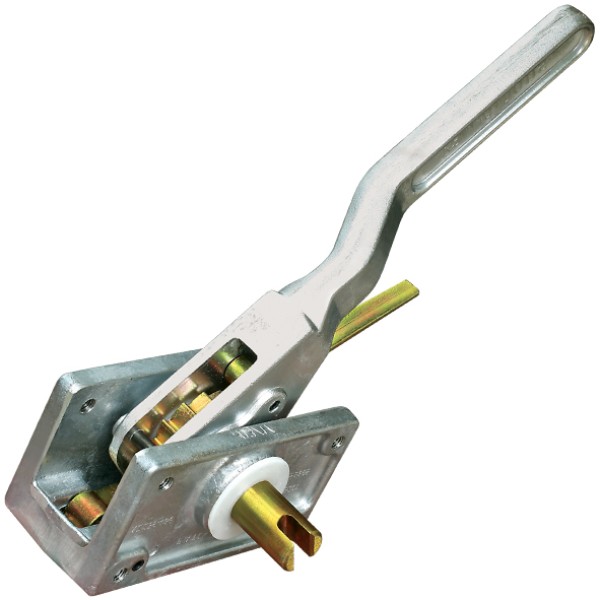

Structurflex Curtain Tensioner Cranked Handle suits curtainside end poles that need a cranked handle style. It gives you steady tension and controlled release at the end pole. Choose the right-hand layout when the end position calls for it.

Features

• One-hand tensioning and release for faster curtain handling
• Cranked handle shape helps when clearance is tight at the end pole
• Reinforced alloy body supports frequent open-close use
• Trigger release and retracting handle help reduce snag points

Specifications and Materials

Part number: CV4030.
The Structurflex Curtain Tensioner Cranked Handle uses an alloy housing to keep weight down. It pairs a high tensile steel shaft with a molybdenum disulphide impregnated nylon bush for a self-lubricating bearing surface. The ratchet action uses an investment cast sprocket and pawl. It also uses rolled threads to support repeated servicing. For component overview and general operation, review the Structurflex tensioner product guide for this tensioner family.

Compatibility and Fitment

This right-hand cranked handle commonly suits right-hand front or left-hand rear positions. Check your existing tensioner before you order, because body builders use different mounts. Also confirm the crank direction and handle clearance at the end pole. If your curtain pole uses a luff groove clevis connection, match the clevis style to your pole base plug.

Compliance and Safety

Park and secure the trailer before you tension or release the curtain. Keep fingers clear of pinch points around the sprocket and clevis. If the curtain sits under load, release tension slowly and stay out of the pole swing path. Replace worn bushes, pawls, and damaged threads early, because loose hardware can let the curtain lose tension on the road.

Trailer Applications

Fitters use the Structurflex Curtain Tensioner Cranked Handle on curtainsider trailers and tautliner bodies. It supports end pole systems that hold the curtain tight along the coaming rail. When you refresh a tired unit, replace the full assembly so the ratchet feel stays consistent.

Cross-reference and Suitability

No verified cross-reference or interchange part numbers were available for this right-hand cranked handle configuration from the sources checked.

Why Choose ICS Trailers

You can confirm the handle orientation before you buy, so you avoid ordering the wrong side. Our team works with trailer parts daily, and we can help you match your existing setup. We pack hardware properly for transport, so it arrives ready for workshop fitment. Browse Container, Van & Tipper parts at ICS Trailers to find related curtainsider hardware.
