Description

Overview

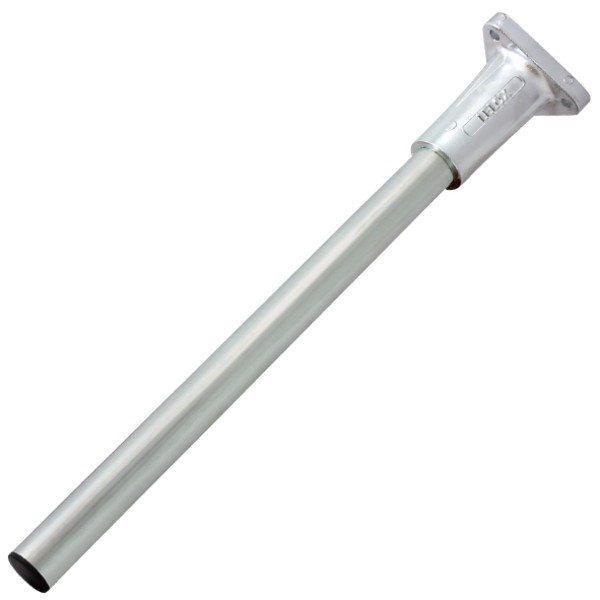

The Lelox Chassis Pipe Mounting Bracket Straight is a rigid mounting point for chassis pipe accessories where you want a clean, straight presentation and dependable support. It is built around a cast aluminium boss and a straight tube, so the mount stays square when the vehicle works over rough roads. Because it uses a 3 hole base, it spreads load into the chassis instead of relying on a single fastener.

This style suits mudguard and spray-suppression setups, and it can also support chassis-mounted lights or similar hardware when the layout calls for a straight arm.

Features

• Cast aluminium boss for a strong, corrosion-resistant base
• DuraGal coated steel tube for durable, straight support
• 3 hole mounting pattern for stable chassis attachment
• Straight layout helps keep accessories parallel and aligned

Specifications and Materials

Part number: CA5571.

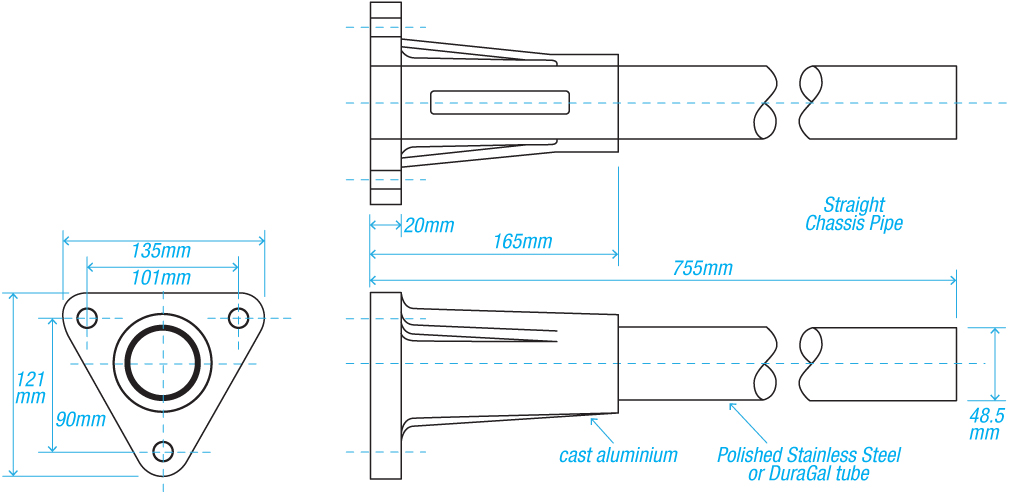

This Lelox Chassis Pipe Mounting Bracket Straight uses a cast aluminium boss with a DuraGal coated steel tube and a 3 hole mounting base.

For general Lelox chassis pipe guidance, see the Lelox product summary PDF

Compatibility and Fitment

The Lelox Chassis Pipe Mounting Bracket Straight suits applications where a straight chassis pipe mount is required for mudguard supports, spray suppression hardware, tail light mounts, or similar chassis-mounted accessories. Because chassis layouts vary, confirm clearance to suspension travel, airlines, wiring, and guards before drilling or bolting up.

If the chassis rail is uneven or you are mounting through existing holes, add a suitable backing plate so the boss seats flat and the tube stays straight. Then, when you trial-fit the accessory, ensure the tube and fasteners do not contact the guard under load.

Compliance and Safety

Install the mounting hardware on sound chassis material and tighten it correctly, otherwise the bracket can work loose over time. If you are welding near the mounting area, protect the tube and boss from heat and spatter, then re-check alignment and fastener torque after the first run.

Trailer Applications

• Prime mover and trailer mudguard mounting systems
• Spray suppression and anti-spray skirt support points
• Chassis-mounted light or accessory support arms
• General heavy vehicle chassis fitouts where straight alignment matters

Why Choose ICS Trailers

ICS Trailers stocks practical chassis and mudguard mounting gear that suits real workshop installs. So if you need help matching bracket style and reach to your layout, we can point you at compatible options and reduce the chance of rework.
