Ringfeder Design B Hand Lever 202 303

Allan Davis on 27/08/2026

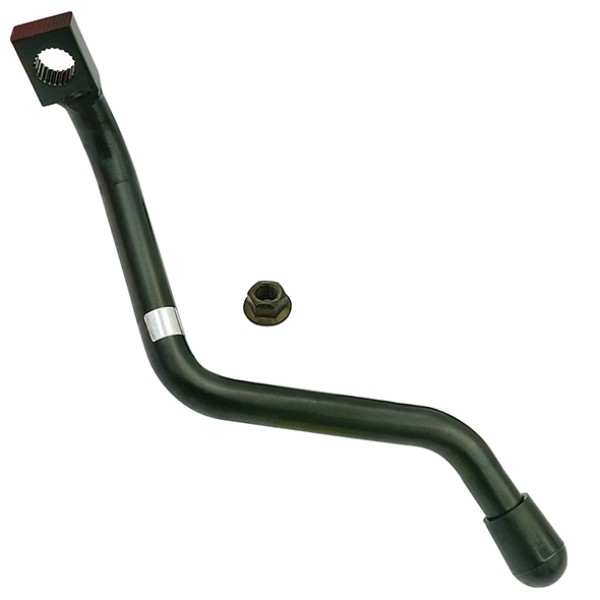

Ringfeder Design B hand lever for 202 and 303 tow couplings

Ringfeder Design B Hand Lever 202 303

$129.00

Ringfeder Design B curved hand lever replaces the operating lever on compatible 202 AUS and 303 AUS tow couplings, restoring manual handle function during coupling repairs while keeping the correct Design B configuration for the mechanism.

Part number TC7177G.

Quick Quote

SKU: TC7177G Category: Tags: , , , , , , , , , , , ,
This field is for validation purposes and should be left unchanged.

Description

Overview

The Ringfeder Design B hand lever operates the manual opening mechanism on compatible Ringfeder 202 AUS and 303 AUS tow couplings. Its curved Design B profile distinguishes it from other lever configurations used across similar coupling assemblies.

Features

  • Curved Design B hand lever configuration
  • Suits compatible Ringfeder 202 AUS and 303 AUS couplings
  • Supplied as a single replacement lever for coupling mechanism service

Specifications and Materials

Product type: curved hand lever for an automatic tow coupling operating mechanism. Application: Ringfeder 202 AUS and 303 AUS. Pack quantity: 1 lever.

Part number: TC7177G.

See the official Ringfeder 303 AUS spare parts page

Compatibility and Fitment

Confirm the coupling model, curved lever shape and Design B configuration before ordering. Do not confuse this individual hand lever with the combined hand and locking lever assembly or the different Design A lever arrangement.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 14 997 190, 14997190

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Related version TC7178G Handle and locking lever kit



Compliance and Safety

After fitting, operate the coupling through its normal opening and closing movement. Confirm the hand lever moves freely, returns correctly and does not interfere with the locking or safety mechanism.

Trailer Applications

Workshops replace this lever when servicing Ringfeder 202 AUS and 303 AUS trailer couplings with a worn, bent or damaged operating handle.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

14 997 190 14997190



Why Choose ICS Trailers

Ringfeder 202 and 303 lever parts can be confused with the combined handle and locking lever assembly or Design A versions. Compare the coupling model, lever curve and Design B layout before ordering. ICS Trailers can help compare the old lever, coupling identification and reference numbers if the mechanism is already dismantled.

  • Check nearby locking and safety components while the operating mechanism is open.
  • Use old markings and lever shape to separate close-fit Ringfeder variants.
