Description

Overview

Watson & Chalin air spring for matching heavy trailer suspension applications, including the HT250US fitment reference and 165, 190, 228 and 305mm ride-height configurations. Ride height is a key selection point, so compare the removed bag and suspension setup before ordering.

Features

• Air suspension replacement bag for heavy trailer applications.
• Fitment references cover 165, 190, 228 and 305mm ride heights.
• Use old part markings, mounting layout and air connection to separate close variants.

Specifications and Materials

Confirm the suspension model and ride-height configuration before fitting. Part number: SP0092A.

Refer to the Hendrickson trailer air spring technical bulletin when checking HT250US suspension identification

Compatibility and Fitment

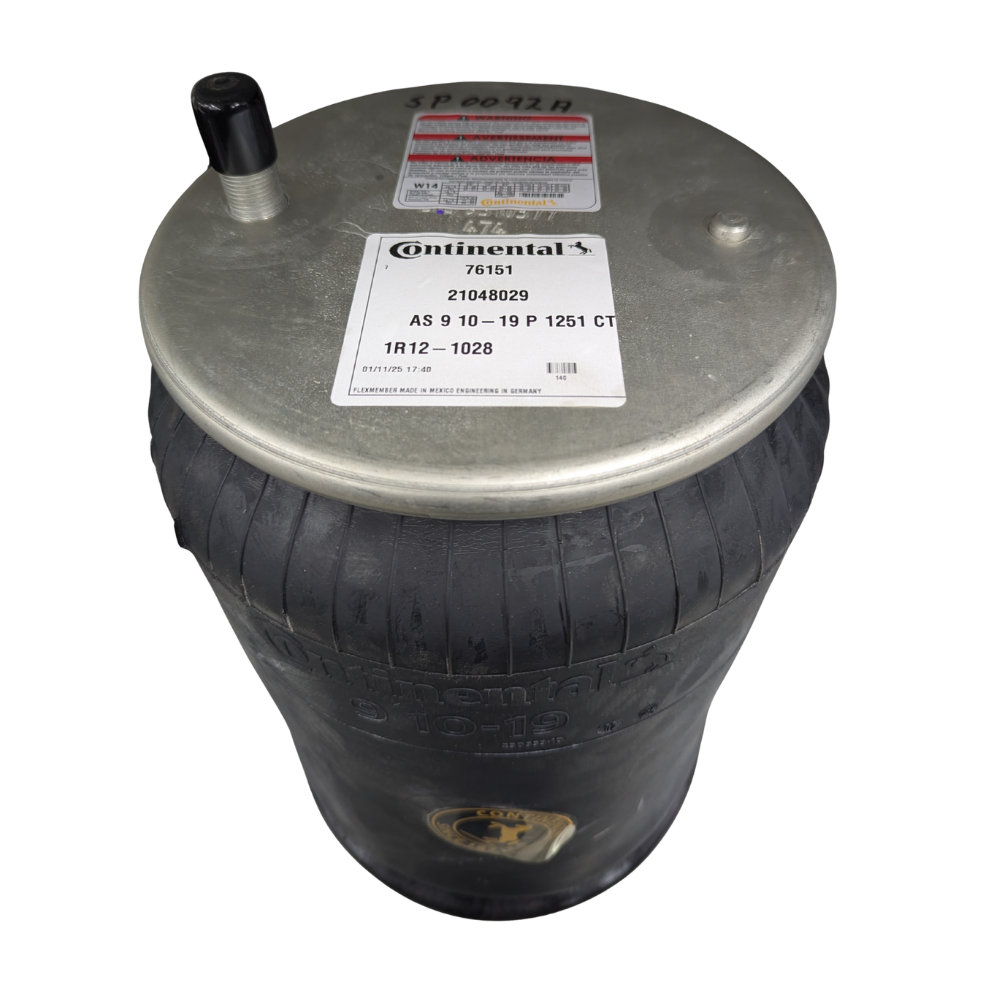

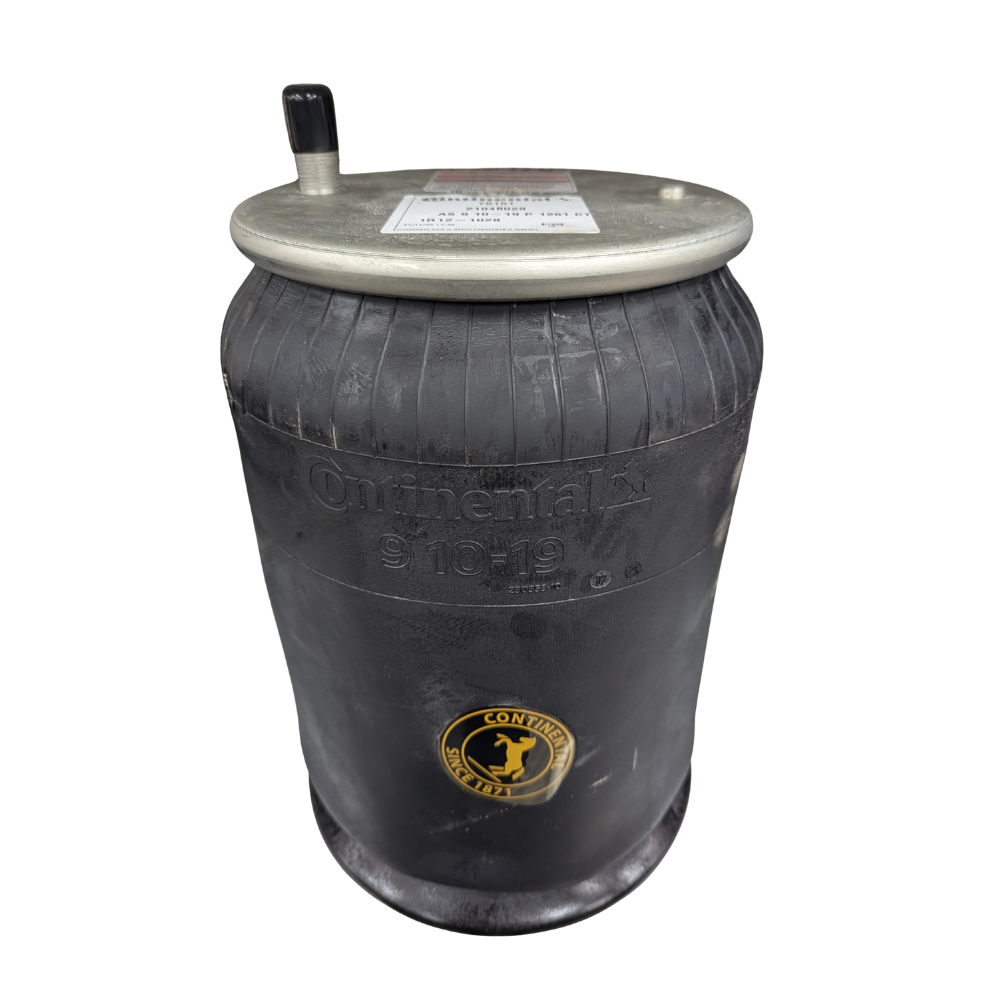

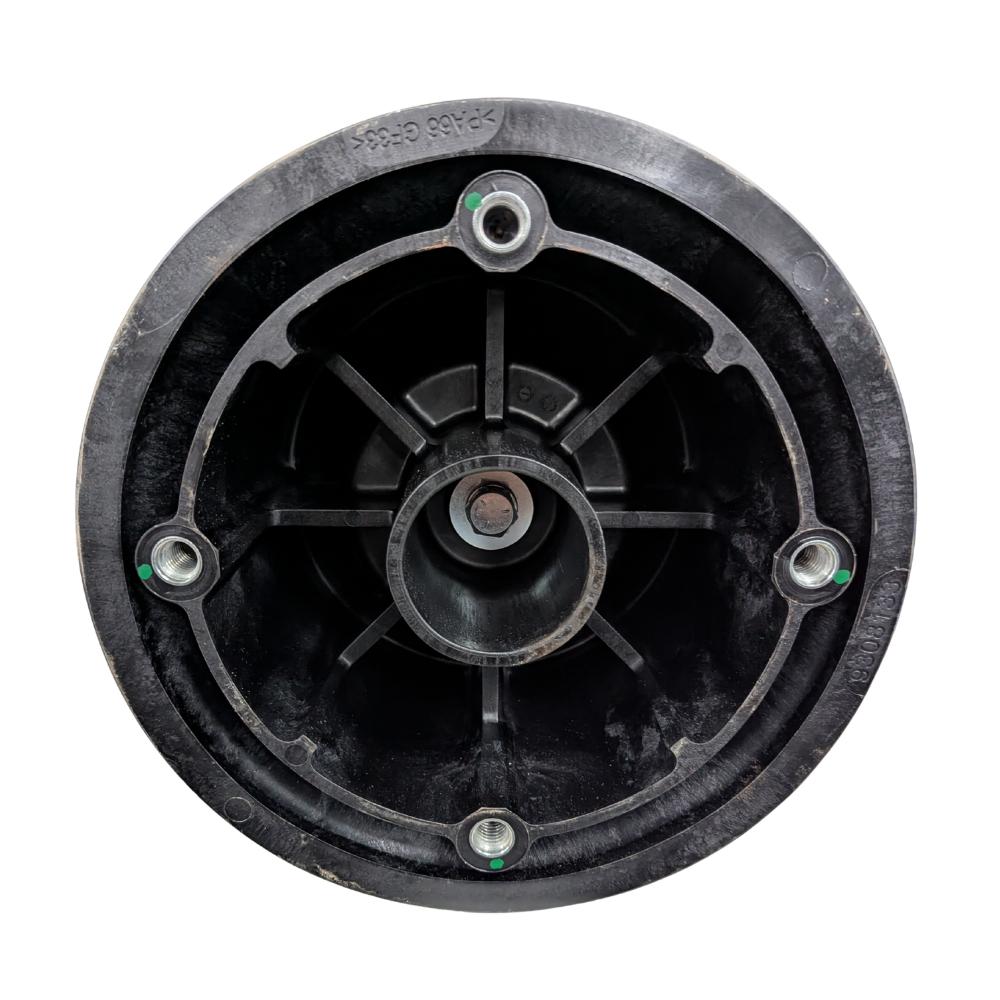

Match the old bag markings, ride height, top and lower mounting arrangement, and air connection before replacement. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 64649, 20903340, 10 10-16S724, 101016S724, 1R13-155, 1R13155, AS0061, 1R12-1028, 1R121028, 910-19, 91019

Compliance and Safety

Support the trailer correctly and exhaust the suspension air before removal. Also inspect the mounts, air line and surrounding clearance for wear, rubbing or damage before pressurising the replacement.

Trailer Applications

Use this Watson & Chalin air spring where the suspension identification and ride-height reference match the HT250US application and one of the listed 165, 190, 228 or 305mm configurations.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

Ride height is the main trap with this air spring because the same suspension family can use different configurations. ICS Trailers can compare the old bag markings, photos, mounting layout and suspension details when the replacement is not obvious.

• Use the 165, 190, 228 or 305mm ride-height reference to narrow the correct setup.
• Cross-reference numbers can be compared against the removed bag before ordering.
