Description

Overview

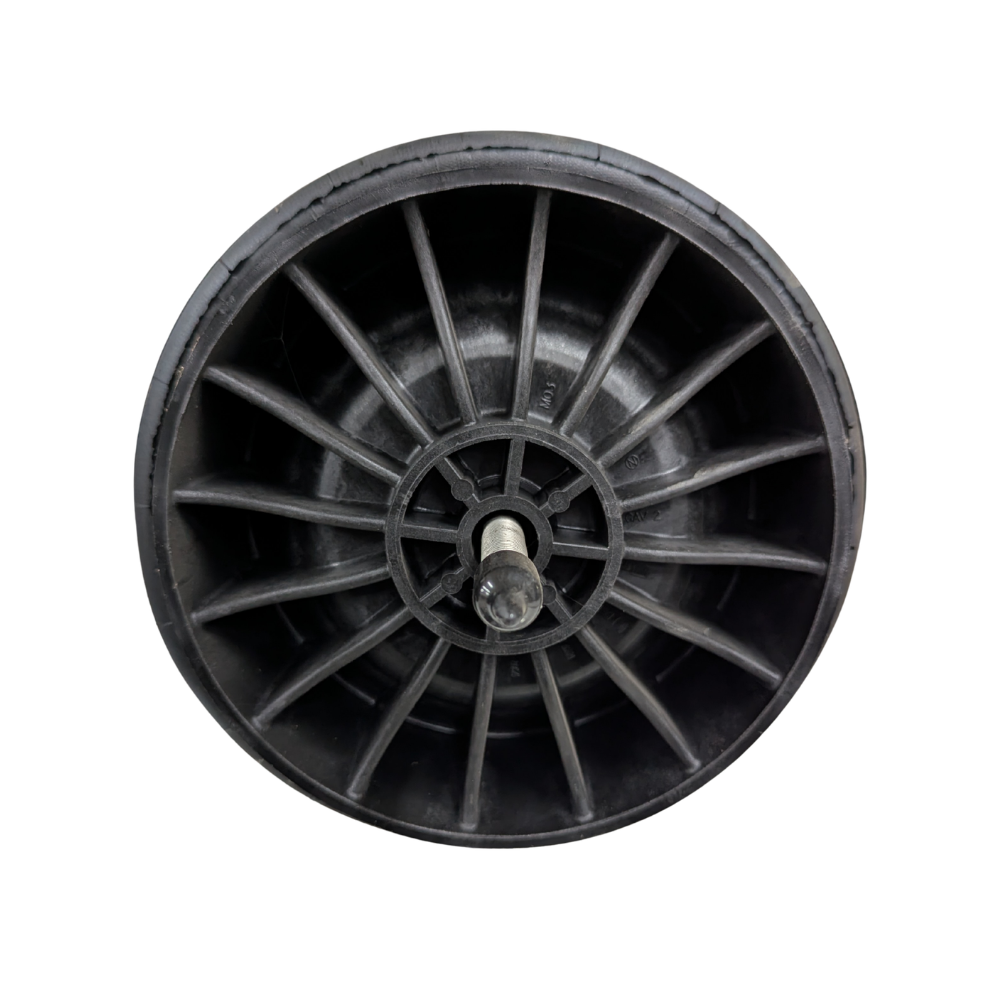

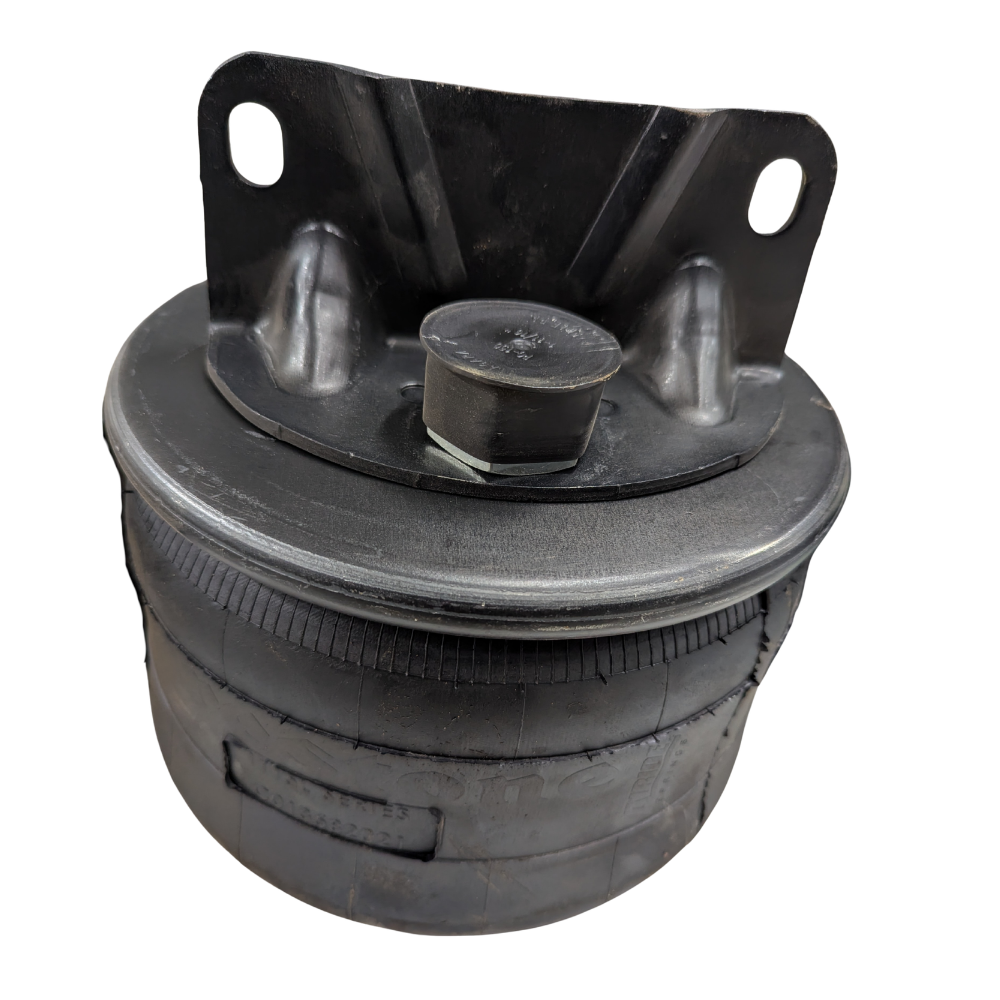

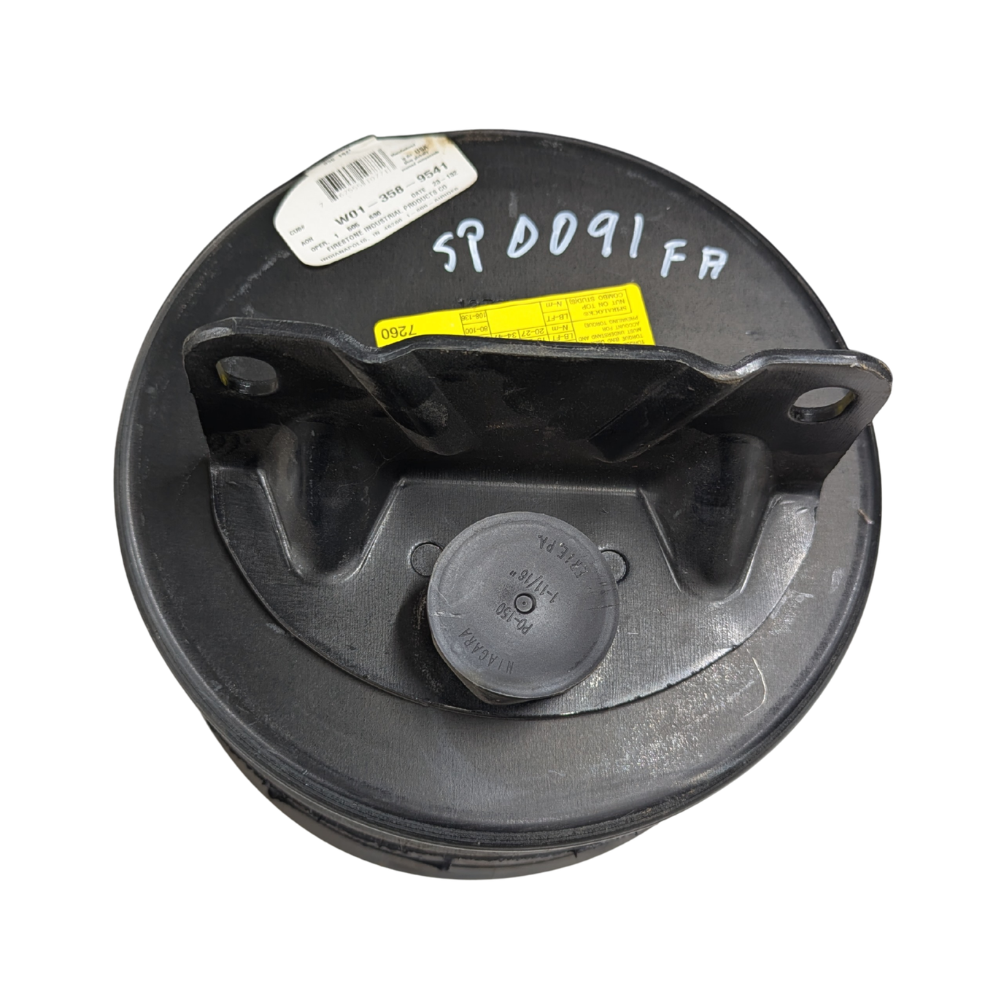

Kenworth Airglide 10.5in air spring replaces the suspension air bag on matching C81-1005 applications. This version belongs to the 10.5in ride-height replacement family, so compare the removed spring by ride height, mounting arrangement, air connection and original part markings before ordering.

Features

• 10.5in ride-height air spring for matching Kenworth Airglide suspension.
• Application coverage includes Airglide 200, 460 and 690 within the C81-1005 family.
• Replacement reference family includes C81-1005 and W01-358-9541.

Specifications and Materials

Match the original air spring dimensions, mounting arrangement, lower piston position and air inlet before fitting. Part number: SP0091FA.

Use the Firestone Airide product search for manufacturer air spring identification

Compatibility and Fitment

Confirm the 10.5in ride height and suspension family first, then compare the old bag markings and mount layout. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. C81-1005, C811005, W01-358-9541, W013589541, 68357, 9 9-10 P 861, 9910P861, TRP9541AU, 1R11-268, 1R11268

Compliance and Safety

Support the vehicle correctly and exhaust suspension air before removal. Inspect the mounting points, air line connection and surrounding clearance, then correct any rubbing, misalignment or leaks before returning the suspension to service.

Trailer Applications

This Kenworth Airglide 10.5in air spring suits heavy vehicle suspension repairs where the existing unit matches the C81-1005 replacement family. It covers Airglide 200, 460 and 690 applications within that ride-height group.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

Airglide air springs can share a similar shape while using different ride heights, mounting details and replacement numbers. ICS Trailers can compare the old bag markings, photos and suspension details when the C81-1005 family needs to be separated from nearby Airglide variants.

• Use the 10.5in ride height and original part markings as the first identification checks.
• Cross-reference matching helps narrow the Firestone, Kenworth, ContiTech, TRP and Goodyear replacement families.
