Description

Overview

SAF Holland Air Spring Assembly SAF 2924V Trailer supports stable ride height and load support on SAF air suspension setups. Replacing a worn air bag helps reduce chassis bounce, uneven tyre wear, and air loss that can affect handling. This assembly suits SAF 2924V applications that use a plastic piston base where consistent performance and corrosion resistance matter.

Features

• Supports consistent ride height and load support under varying payloads
• Plastic piston base can help with corrosion resistance and service life
• Helps reduce vibration transfer compared with a leaking or fatigued air bag
• Direct replacement option for compatible SAF suspension setups

Specifications and Materials

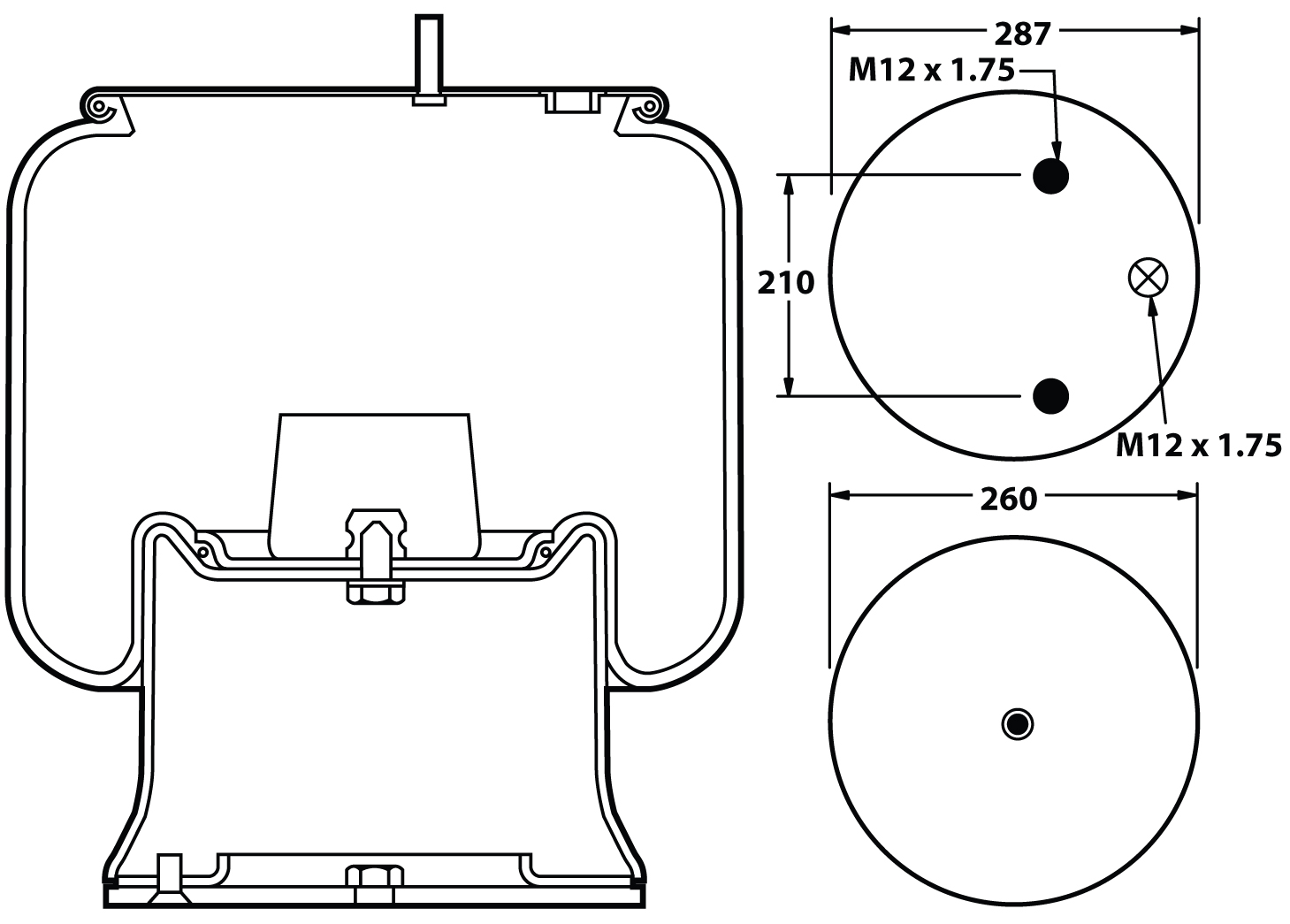

This air spring assembly suits SAF 2924V (plastic piston) fitments. It is commonly referenced with an approximate 350mm air bag diameter and 200mm axle stroke. Operating pressure is rated up to 7 bar (100 psi), and the operating temperature range is -40°C to +70°C.

Part number: SP0135GA.

See the SAF-HOLLAND air spring mounting kit list for reference information.

Compatibility and Fitment

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. 93005, 1R14-815, 1R14815, D 14 B 43, D14B43, 3.229.0041.00, 3229004100, 03 229 0041 00, 03229004100

Before ordering, confirm the mounting style, piston type, and required stroke on the axle group. Similar SAF air springs can look alike but differ in travel and base design.

Compliance and Safety

Always support the trailer safely before working on air suspension. Isolate and release system air pressure before removal to prevent sudden movement. Check air lines, height control valve function, and mounting hardware condition, because leaks or misalignment can shorten air spring life. After installation, leak-test and confirm ride height is set to the suspension manufacturer or trailer OEM specification.

Trailer Applications

This air spring assembly commonly suits SAF INTRA style trailer suspensions and similar axle groups using SAF 2924V air bags. It suits general heavy trailer suspension service where correct ride height, clearance, and axle travel depend on an intact air spring.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Finally, confirm the air spring designation and mounting style on the axle before ordering, because similar SAF air bags can differ by stroke and piston type.

Why Choose ICS Trailers

ICS Trailers helps you match suspension parts accurately so you reduce downtime and repeat work. If you are unsure, share the axle group details or the markings from your current air bag and we can help you confirm the closest match.
