Description

Overview

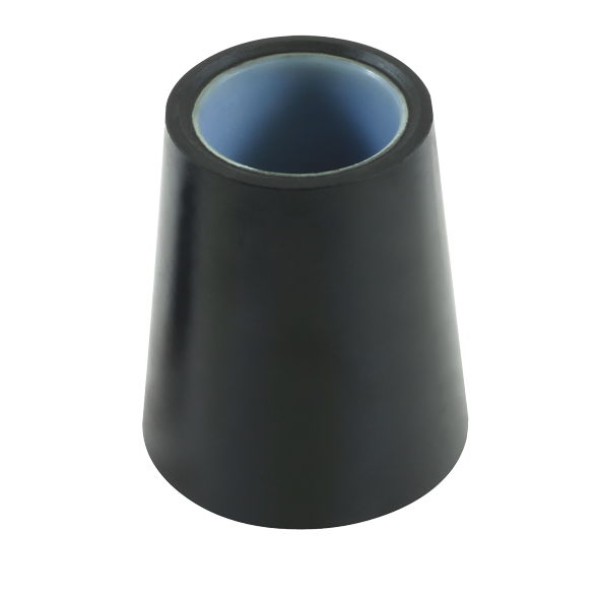

Tapered equaliser bush is a general purpose rubber bush for trailer mechanical suspension equaliser and rocker points. It supports the pivot area as the suspension moves, so the bush shape, length, and hardness all matter during service. This design uses a tapered outer profile, which helps it seat correctly in matching housings instead of relying on a straight-wall bush.

Features

• Rubber tapered equaliser bush with a 50.8mm inside diameter and 112mm overall length.
• Tapered outside diameter from 66.2mm to 86.5mm for matching equaliser and rocker housings.
• Hardness range of 80 to 97 for suspension pivot service.
• General purpose fitment used across a range of older trailer suspension repairs when size and housing style match.

Specifications and Materials

This rubber tapered equaliser bush has a 50.8mm inside diameter, 112mm length, and a tapered outside diameter from 66.2mm to 86.5mm. The hardness range is 80 to 97, so it suits suspension pivot work where a firmer rubber bush is required. Part number: SP1101. Further product detail is available in the Meritor equalizer bushing reference

Compatibility and Fitment

Check the housing profile, inside diameter, overall length, and the equaliser or rocker style before ordering. Because tapered bushes can look similar across different suspension layouts, do not rely on appearance alone. This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. 099205, York 901020, York901020, BP1101, FL80.2000, FL802000, WT1101, UA0004

Compliance and Safety

Press the bush squarely into a clean housing and inspect the mating pin, shaft, or sleeve surface before assembly. If the surrounding hardware is worn or scored, replace that at the same time because a new bush will not correct excess play on its own. Correct fit also matters because the bush must seat evenly through the taper instead of twisting during service.

Trailer Applications

Tapered equaliser bush suits trailer suspension repairs where a tapered equaliser or rocker bush is used in general purpose mechanical suspension. It is commonly matched during equaliser rebuilds, rocker service, and bush replacement work on older trailer suspension setups. The tapered form also helps the bush lock into the correct seat where the equaliser pivot carries repeated articulation under load.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers lists the key bush dimensions up front, which makes this size easier to compare against an existing equaliser or rocker before teardown. That matters when older suspension gear carries mixed numbers from past repairs. Browse Suspension parts at ICS Trailers
