Description

Overview

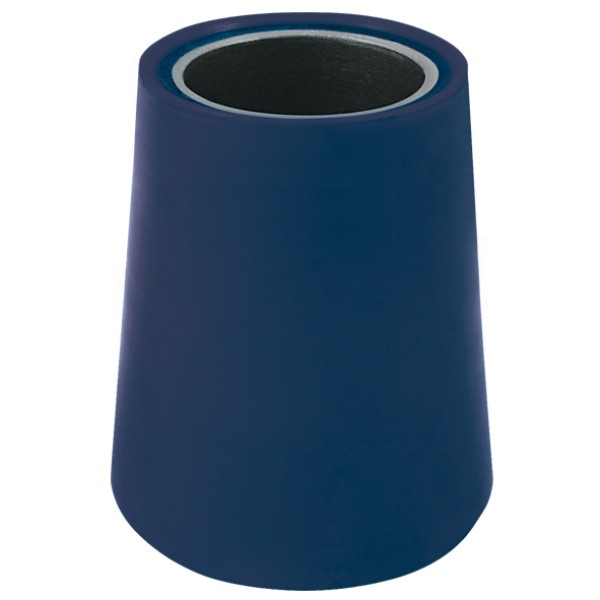

Polyurethane tapered equaliser bush is used in trailer mechanical suspension equaliser and rocker assemblies where a tapered bush with steel insert is required. This general purpose bush uses a polyurethane body and a steel insert, so it suits heavy-duty suspension service work. Its tapered outside diameter also helps it seat correctly in the matching housing.

Features

• Polyurethane tapered equaliser bush with steel insert for suspension equaliser positions.
• Tapered outside diameter from 66.2mm to 86.5mm for matching housings.
• 50.8mm inner diameter with 112mm overall length.
• Hardness rating of 80-97 for heavy-duty suspension use.

Specifications and Materials

This bush is a general purpose polyurethane equaliser bush with a steel insert. Key dimensions are 66.2mm to 86.5mm OD, 50.8mm ID, and 112mm length. Hardness is listed as 80-97. Part number: SP1101P.

For trailer bush family reference, see the Powerdown trailer bush catalogue

Compatibility and Fitment

Match the housing taper, inner diameter, overall length, and insert size before ordering. Polyurethane tapered equaliser bush suits equaliser and rocker suspension positions that use this tapered profile. This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. 1101RED, P00699

Compliance and Safety

Press the bush in squarely and support the housing correctly during fitting. Check the steel insert for damage before assembly. If the old bush shows cracking, movement, or distortion, replace it before the suspension goes back into service.

Trailer Applications

This bush suits trailer mechanical suspension repairs where the equaliser or rocker assembly uses a tapered polyurethane bush. It is commonly used when rebuilding worn suspension pivots. Because bush wear can affect alignment and movement, matching the taper and length is important.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers also carries related rocker, hanger, and suspension service parts, which helps when the repair needs more than one component.
