Description

Overview

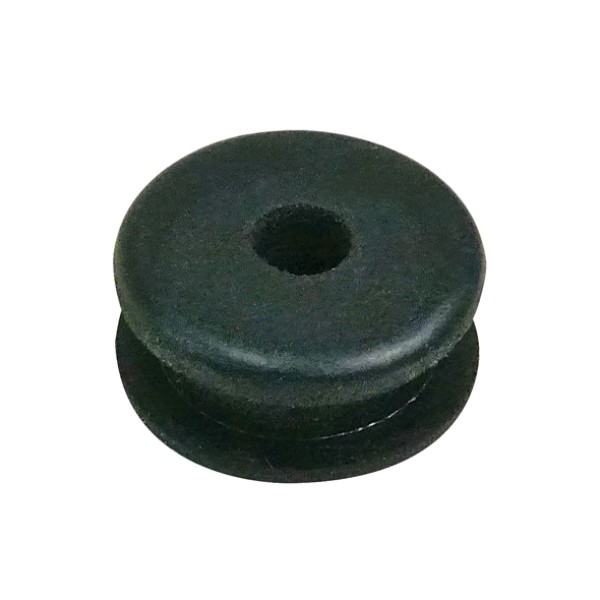

Rubber HCV Link Eye Grommet is a small rubber insert for most height control and levelling valve linkage arms. It sits in the linkage eye where the arm connects, so it helps the linkage move while keeping the connection seated during normal suspension travel. Because this grommet is a wear item, replacing a split or loose insert can restore cleaner linkage movement and a more secure fit at the valve arm.

Features

• Suits most height control and levelling valve linkage arms
• Stepped 19/25mm outside diameter with 12mm height
• Rubber eye insert for linkage repair and replacement work
• Compact service part that is easy to change during valve linkage maintenance

Specifications and Materials

Use Rubber HCV Link Eye Grommet where the linkage eye needs a stepped 19/25mm outside diameter and 12mm height. It fits the eye end of many HCV and levelling valve linkage arms, so match the installed size before ordering. Part number: SP0259.

For HCV linkage installation context, see the Ridewell height control valve installation guide

Compatibility and Fitment

Match the existing grommet dimensions and the linkage eye shape before ordering. This part suits many height control and levelling valve linkage arms, but the installed eye diameter and stud arrangement must still line up for proper fit. If the old grommet has hardened, split, or pulled loose from the linkage eye, replace it before resetting ride height or final linkage adjustment.

Compliance and Safety

Fit the grommet fully into a clean linkage eye and check that the valve arm stud sits squarely in the rubber eye. After installation, cycle the linkage through fill and exhaust movement so the arm does not bind or pull the grommet sideways. Also inspect the linkage rod, pins, and lever for wear because damage in those parts can shorten grommet life.

Trailer Applications

Rubber HCV Link Eye Grommet suits trailer air suspension systems that use a mechanical height control or levelling valve linkage. It is useful during ride height correction, linkage rebuilds, or routine suspension service when the original rubber eye has worn out. Because the part is compact and inexpensive, many workshops keep one on hand when servicing older linkage assemblies and replacing other small linkage wear items.

Why Choose ICS Trailers

ICS Trailers stocks common linkage service parts for trailer suspension work, so you can replace small wear items before they create a larger valve or linkage problem. Browse Suspension parts at ICS Trailers
