Description

Overview

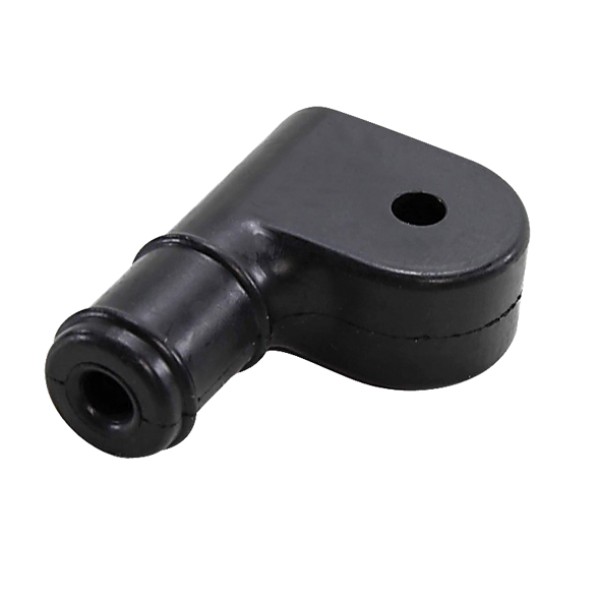

Rubber Linkage P Type Levelling Valve is a small suspension linkage insert used on height control and levelling valve arms. It suits common linkage points where a compact rubber connector helps join the lever end while allowing normal valve movement. Because this part sits at the linkage connection, wear or damage here can lead to slack, poor adjustment or unreliable ride height control.

Features

• P-type rubber linkage for height control and levelling valve arm connections
• Size guide: A Ø6.2mm, B Ø6mm, C 38mm
• Suits most common height control and levelling valve linkage arms
• Compact service part for worn, split or loose linkage ends

Specifications and Materials

Rubber Linkage P Type Levelling Valve uses a compact P-type layout for linkage arm connections on mechanical ride height valve setups. Match the hole sizes and overall length before ordering, because these dimensions matter at the lever end. Size guide: A Ø6.2mm, B Ø6mm, C 38mm. Part number: SP0258.

See the official WABCO levelling valve parts guide for the related valve family and pressure piece fitment

Compatibility and Fitment

Check the arm hole size, pin size and linkage length before ordering, especially if the original connector has worn out and changed shape over time. This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. 4333003854, TDAS4333003854, 163041, 503512402, S433-300-385-4, S4333003854, 6300-4333003854, 63004333003854, 81436130030, 81436130021, 81436400120, 1504950, 5021170090, 1932724, 1025683, 37895, 30026261, 400073, WAB4333003854, 1282956, 6556871

Compliance and Safety

Inspect the linkage arm, retaining hardware and valve lever for wear before fitting this part. Then make sure the connector seats cleanly and moves freely through suspension travel without binding. If the linkage is loose or misaligned, ride height adjustment can become inconsistent.

Trailer Applications

Rubber Linkage P Type Levelling Valve suits trailer air suspension systems that use a mechanical height control or levelling valve arm with a small rubber linkage connector. It is commonly used during suspension service when the original linkage end has cracked, hardened or pulled loose. So it is a sensible replacement when the valve itself remains serviceable but the arm connection no longer holds properly.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
