Description

Overview

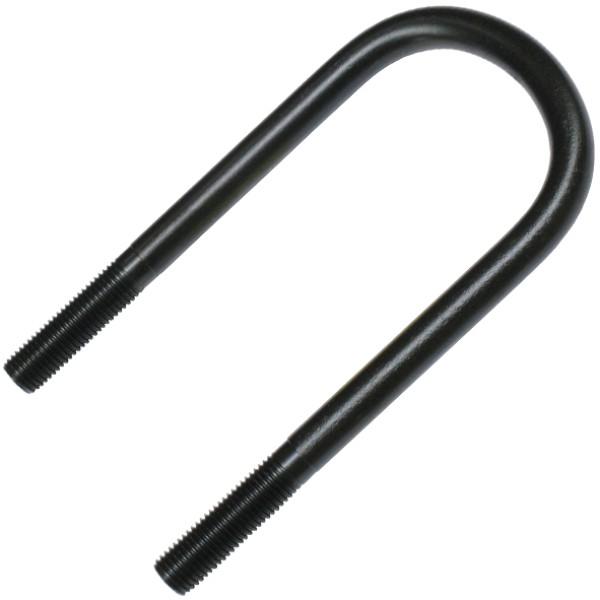

Round U Bolt M24 x 290mm secures the axle clamping area on BPW trailer suspension setups. It suits round top U-bolt applications where the axle seat, spring plate and clamping hardware need to lock together correctly under load.

Features

• Round top U-bolt profile for trailer suspension clamping.
• M24 metric thread for matching BPW axle clamp hardware.
• 290mm length for matching the existing suspension setup.
• Includes nuts and washers for the clamping assembly.

Specifications and Materials

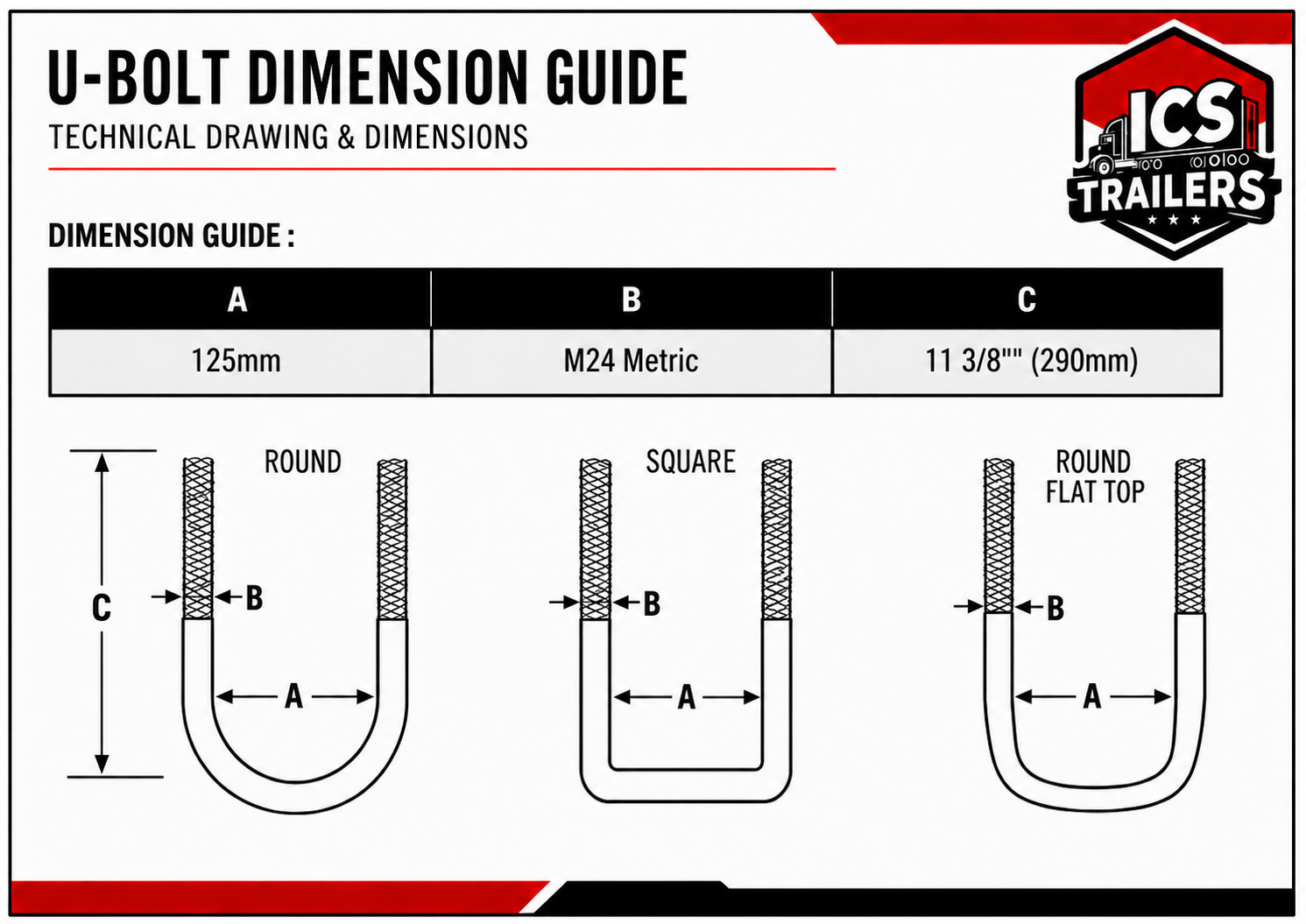

This Round U Bolt M24 x 290mm uses a round top profile with M24 metric threads and comes with the matching nuts and washers. Check the existing U-bolt shape, thread size and length before ordering, because round and flat top U-bolts do not interchange across every axle seat.

Part number: SP8101G.

BPW air suspension U-bolt guide

Compatibility and Fitment

Match this part against the existing BPW suspension U-bolt before fitting. Check the round top profile, M24 thread, leg length, axle seat style and nut engagement, then replace the matching clamping hardware as needed.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 03.138.41.17.4, 0313841174

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the spring plate, axle seat and nut faces before tightening the assembly. If the threads show stretching, corrosion or impact damage, replace the affected hardware instead of reusing it. Also tighten U-bolts in staged passes and recheck the clamping area after service.

Trailer Applications

Workshops fit Round U Bolt M24 x 290mm hardware during BPW trailer suspension repairs, axle seat work and clamp hardware replacement. Use it where the trailer already runs the matching round top M24 U-bolt arrangement.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies heavy trailer suspension parts for workshop repairs, fleet servicing and trailer maintenance. Match the dimensions before ordering so the axle clamp assembly fits the suspension correctly. Browse more parts in our Suspension category
