Description

Overview

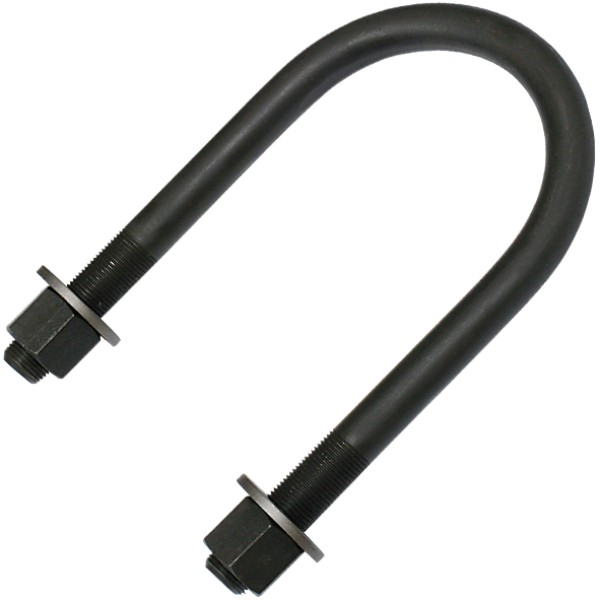

Round U Bolt 5 x 9 x 7/8 secures trailer leaf spring and axle clamp assemblies with a round top U-bolt profile. It suits suspension setups that need a 5″ inside width, 7/8″ thread diameter and 9″ leg length, so checking the removed part before ordering matters.

Features

• Round top profile for trailer suspension clamp applications.
• 5″ inside width, 7/8″ thread diameter and 9″ leg length.
• Includes nuts and washers for the clamp plate fit-up.
• Useful when replacing stretched, damaged or removed U-bolts during spring work.

Specifications and Materials

This trailer suspension U-bolt uses a round top shape with imperial sizing for matching against the existing spring and axle clamp setup. Includes nuts and washers for the threaded legs.

Part number: SP8064.

For U-bolt tightening guidance, refer to this technical U-bolt tightening bulletin

Compatibility and Fitment

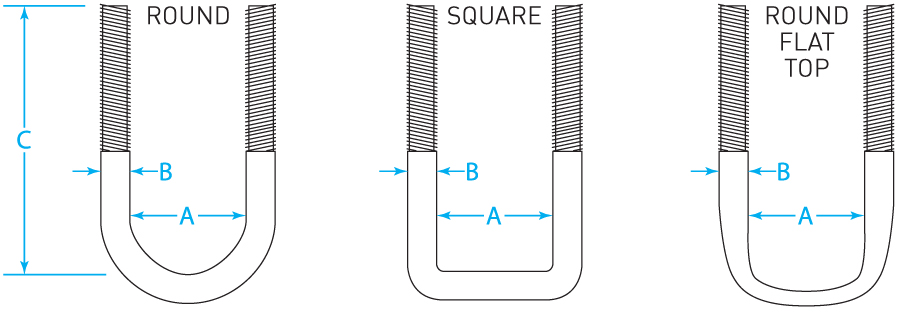

Match Round U Bolt 5 x 9 x 7/8 against the original U-bolt width, thread diameter, leg length, bend profile and clamp plate before ordering. Also check the axle seat and spring pack arrangement, because a close size can still be wrong if the top radius or leg length does not match.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Replace U-bolts after removal rather than reusing stretched fasteners. When fitting, tighten the nuts evenly in stages and use the suspension or trailer maker’s torque procedure. Then recheck after the suspension has settled.

Trailer Applications

Workshops fit Round U Bolt 5 x 9 x 7/8 during trailer leaf spring, axle clamp and suspension service work. It suits jobs where the existing U-bolt matches the round top profile and the measured dimensions above.

Why Choose ICS Trailers

ICS Trailers supplies suspension fastening parts for trailer repairs, fleet maintenance and workshop servicing. For other clamp and suspension hardware, browse more Suspension U-Bolts
